REAR POWER SEAT MOTOR ASSEMBLY (for Ottoman): Components

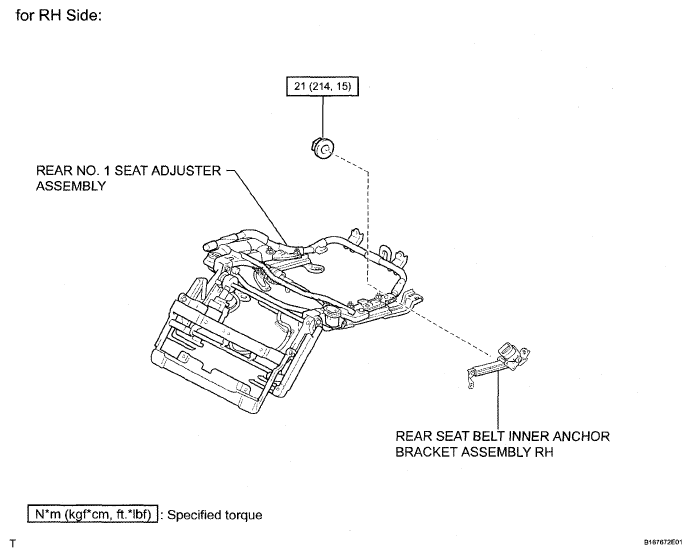

Fig 1: Rear Power Seat Motor Assembly Replacement Components With Torque Specifications (For Ottoman) (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

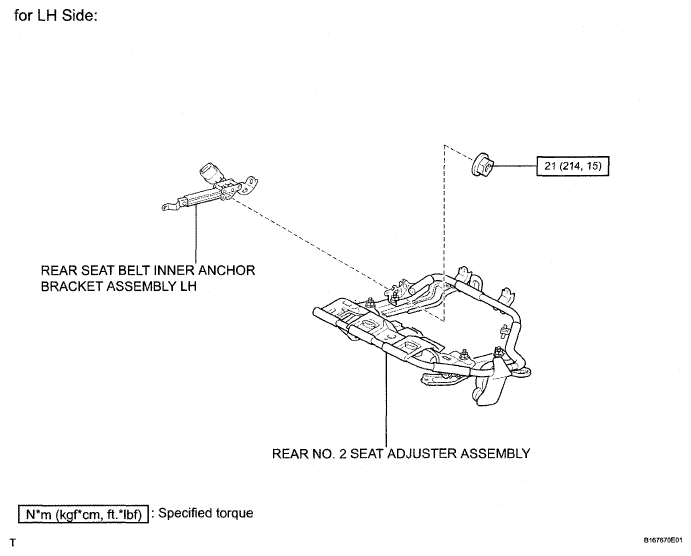

Fig 2: Rear Power Seat Motor Assembly Replacement Components With Torque Specifications (For Ottoman) (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

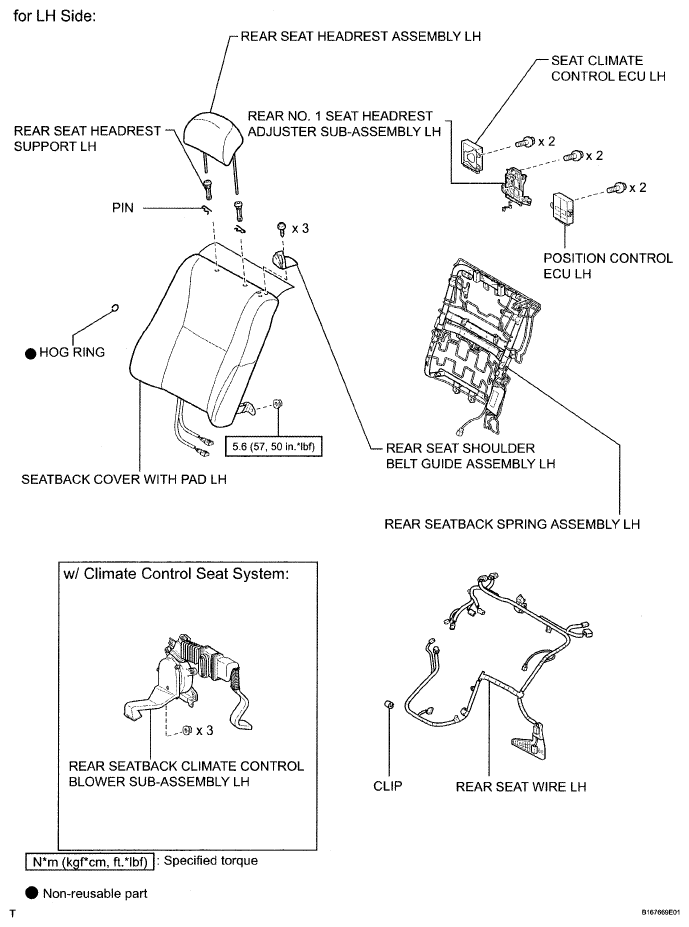

Fig 3: Rear Power Seat Motor Assembly Replacement Components With Torque Specifications (For Ottoman) (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

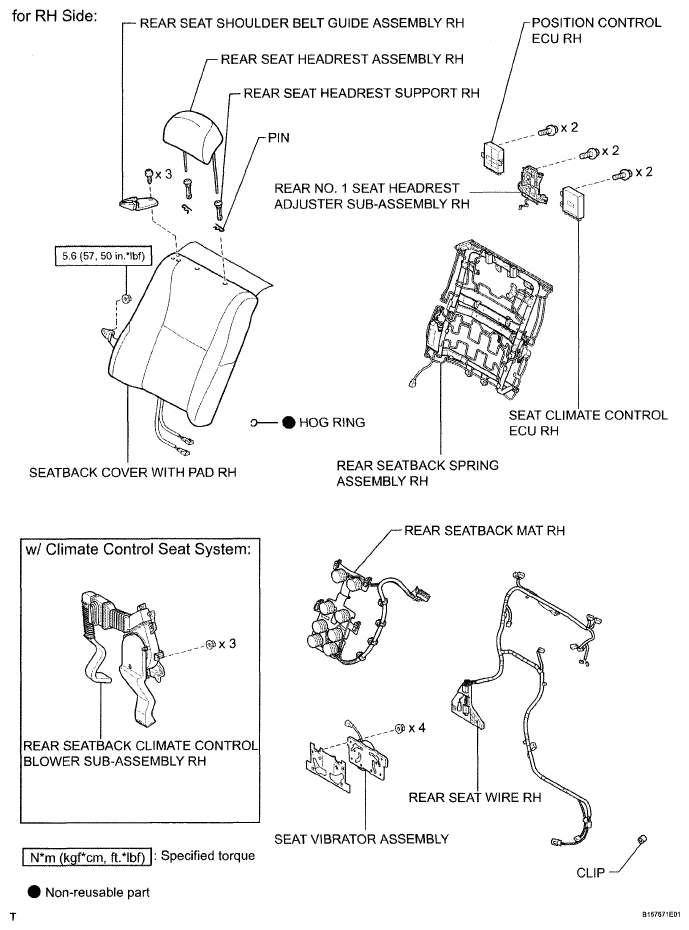

Fig 4: Rear Power Seat Motor Assembly Replacement Components With Torque Specifications (For Ottoman) (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
