AIR HOSE (for Ottoman): Components

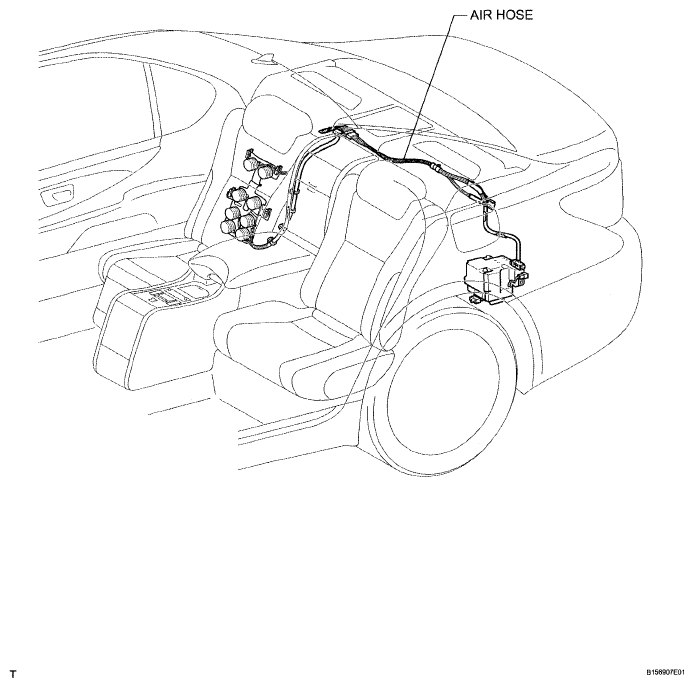

Fig 1: Identifying Air Hose Components (For Ottoman) (1 Of 5)
G04953172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

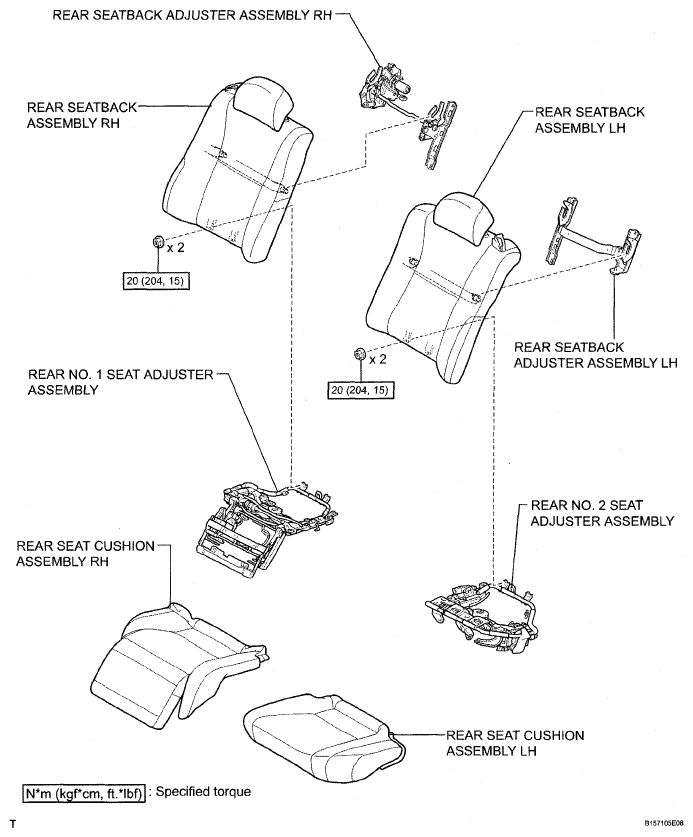

Fig 2: Air Hose Replacement Components With Torque Specifications (For Ottoman) (2 Of 5)
G04953173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Air Hose Replacement Components With Torque Specifications (For Ottoman) (3 Of 5)
G04953174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Air Hose Components (For Ottoman) (4 Of 5)
G04953175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Identifying Air Hose Components (For Ottoman) (5 Of 5)
G04953176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
