REAR SEAT ASSEMBLY (for Power Seat): Disassembly

CAUTION: Wear protective gloves. Sharp areas on the seatback spring, seat adjuster and seat cushion spring may injure your hands.
  1. REMOVE REAR SEAT CUSHION SPRING ASSEMBLY LH
    1. Remove the hog rings and seat cushion spring.
      Fig 1: Identifying Hog Rings And Seat Cushion Spring
      G04952844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR SEAT CUSHION COVER SUB-ASSEMBLY LH
    1. Remove the hog rings and seat cushion cover from the seat cushion pad.
      Fig 2: Identifying Seat Cushion Cover Hog Rings
      G04952845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SEAT SHOULDER BELT GUIDE ASSEMBLY LH
    1. Remove the 3 screws and shoulder belt guide.
      Fig 3: Identifying Shoulder Belt Guide Screws
      G04952846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR SEAT HEADREST ASSEMBLY LH
    1. Remove the 2 pins and headrest.
      Fig 4: Removing Pins And Headrest
      G04952847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SEAT HEADREST SUPPORT LH
    1. Detach the 4 claws and remove the 2 headrest supports.
      Fig 5: Identifying Headrest Supports Claws
      G04952848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY LH
    1. Remove the wire harness clamp.
    2. Disconnect the connector.
    3. Remove the 2 bolts and detach the 2 claws.
    4. Remove the headrest adjuster.
      Fig 6: Identifying Rear No. 1 Seat Headrest Adjuster Sub-Assembly LH
      G04952849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE POSITION CONTROL ECU LH
    1. Disconnect the 2 connectors.
    2. Remove the 2 bolts and position control ECU.
      Fig 7: Locating Position Control ECU Connectors And Bolts
      G04952850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SEAT CLIMATE CONTROL ECU LH (w/ Climate Control Seat System)
    1. Disconnect the 2 connectors.
    2. Remove the 2 bolts and climate control ECU.
      Fig 8: Locating Climate Control ECU Bolts
      G04952851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE SEATBACK COVER WITH PAD LH
    1. Remove the nut and 2 seatback cover brackets.
      Fig 9: Locating Seatback Cover Brackets Nuts
      G04952852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Seat Climate Control System:
      1. Disconnect the connector.
      2. Detach the clip and disconnect the wire harness.
        Fig 10: Locating Seat Climate Control System Connector
        G04952853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the hooks from the seatback frame.
      Fig 11: Identifying Seatback Frame Hooks
      G04952854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

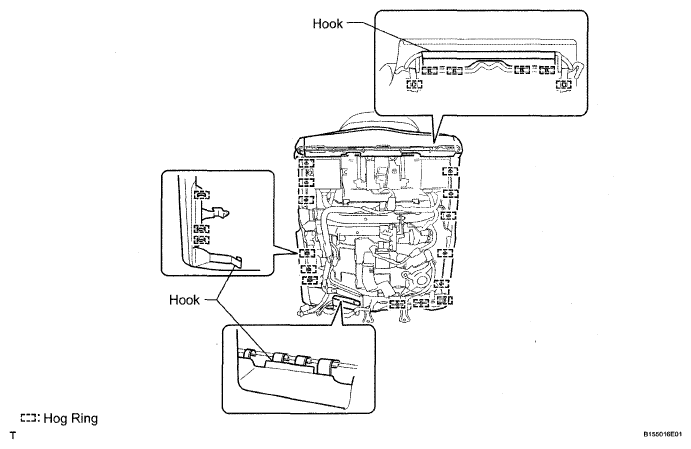

    4. Detach the hooks and remove the hog rings and the seatback cover (with pad) from the seatback frame.
      Fig 12: Identifying Seatback Cover (With Pad) Hooks And Hog Rings
      G04952855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR SEATBACK COVER SUB-ASSEMBLY LH
    1. Remove the hog rings and seatback cover from the seatback pad.
      Fig 13: Identifying Seatback Cover Hog Ring
      G04952856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE SEATBACK CLIMATE BLOWER SUB-ASSEMBLY LH (w/ Climate Control Seat System)
    1. Disconnect the 2 connectors and remove the 3 nuts.
      Fig 14: Locating Seatback Climate Blower Sub-Assembly LH Nuts And Connectors (W/Climate Control Seat System)
      G04952857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 3 hooks and remove the climate controller and blower.
      Fig 15: Identifying Climate Controller Blower And Hooks
      G04952858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR SEAT WIRE LH
  13. REMOVE REAR SEAT INNER BELT ASSEMBLY LH  (See REMOVAL )
  14. REMOVE REAR SEAT INNER ANCHOR BRACKET ASSEMBLY LH
    1. Remove the nut and anchor bracket.
      Fig 16: Identifying Anchor Bracket Nut
      G04952859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE SEAT CLIMATE CONTROL CONTROLLER LH (w/ Climate Control Seat System)
    1. Remove the wire harness clamp.
      Fig 17: Identifying Wire Harness Clamp
      G04952860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 connectors.
      Fig 18: Identifying Climate Controller Screws
      G04952861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 screws.
    4. Detach the claws and remove the climate controller.
  16. REMOVE SEAT CLIMATE CONTROL BLOWER LH (w/ Climate Control Seat System)
    1. Remove the 3 nuts and climate blower.
      Fig 19: Identifying Climate Blower Nuts
      G04952862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR SEAT CUSHION SPRING ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  18. REMOVE REAR SEAT CUSHION COVER SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  19. REMOVE REAR SEAT SHOULDER BELT GUIDE ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  20. REMOVE REAR SEAT HEADREST ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  21. REMOVE REAR SEAT HEADREST SUPPORT RH

    HINT:

    Use the same procedures described for the LH side.

  22. REMOVE REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  23. REMOVE POSITION CONTROL ECU RH

    HINT:

    Use the same procedures described for the LH side.

  24. REMOVE SEAT CLIMATE CONTROL ECU RH (w/ Climate Control Seat System)

    HINT:

    Use the same procedures described for the LH side.

  25. REMOVE REAR SEATBACK COVER WITH PAD RH

    HINT:

    Use the same procedures described for the LH side.

  26. REMOVE REAR SEATBACK COVER SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  27. REMOVE REAR SEATBACK CLIMATE CONTROL BLOWER RH (w/ Climate Control Seat System)

    HINT:

    Use the same procedures described for the LH side.

  28. REMOVE REAR SEAT WIRE RH

    HINT:

    Use the same procedures described for the LH side.

  29. REMOVE REAR SEAT INNER BELT ASSEMBLY RH  (See REMOVAL )
  30. REMOVE REAR SEAT INNER BELT ASSEMBLY CENTER  (See REMOVAL )
  31. REMOVE REAR SEAT BELT INNER ANCHOR BRACKET ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  32. REMOVE SEAT CLIMATE CONTROL CONTROLLER RH (w/ Climate Control Seat System)

    HINT:

    Use the same procedures described for the LH side.

  33. REMOVE REAR SEAT CLIMATE CONTROL BLOWER RH (w/ Climate Control Seat System)

    HINT:

    Use the same procedures described for the LH side.

  34. REMOVE CENTER SEAT CUSHION COVER
    1. Remove the hog rings and the seat cushion cover from the seat cushion pad.
    2. Remove the seat cushion pad from the seat cushion frame.
      Fig 20: Identifying Center Seat Cushion Cover Hog Ring
      G04952863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
    1. Remove the 2 bolts and center headrest.
      Fig 21: Locating Center Headrest Bolts
      G04952864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE CENTER SEATBACK FRAME COVER
    1. Detach the 2 clips and remove the cover.
      Fig 22: Removing Cover Clips
      G04952865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY
    1. Remove the wire harness clamp.
    2. Remove the 2 nuts and center armrest.
      Fig 23: Locating Center Armrest Nuts
      G04952866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE REAR NO. 1 SEAT CENTER ARMREST PANEL
    1. Remove the 2 screws and rear seat armrest hole board.
      Fig 24: Locating Rear Seat Armrest Hole Board Screws
      G04952867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claw and remove the center armrest door.
      Fig 25: Removing Center Armrest Door Claw
      G04952868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the armrest door lock seal.
      4. Fig 26: Identiyfing Armrest Door Lock Seal
      G04952869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the screw.
    5. Detach the 12 claws and remove the No. 2 center armrest panel (with No. 1 panel).
    6. Disconnect the 2 connectors.
    7. Remove the 3 screws and No. 1 center armrest panel.
      Fig 27: Locating No. 1 Center Armrest Panel Screws
      G04952870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE REAR POWER SEAT MODULE SWITCH ASSEMBLY  (See REMOVAL )
  40. REMOVE REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY
    1. Remove the 2 screws and cup holder.
      Fig 28: Removing Cup Holder Screws
      G04952871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE CURTAIN SWITCH ASSEMBLY
    1. Remove the 8 screws and rear No. 2 seat center armrest box.
      Fig 29: Identifying Rear No. 2 Seat Center Armrest Box Screws
      G04952872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and curtain switch.
      Fig 30: Identifying Curtain Switch Screws
      G04952873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector.
  42. REMOVE REAR ARMREST WIRE
    1. Disconnect the connector and remove the 4 wire harness clamps.
      Fig 31: Locating Wire Harness Clamps And Connector
      G04952874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
