REAR SEAT ASSEMBLY (for Ottoman): Reassembly

CAUTION: Wear protective gloves. Sharp areas on the seatback spring, seat adjuster and seat cushion spring may injure your hands.

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

  1. INSTALL SEAT CUSHION CLIMATE BLOWER SUB-ASSEMBLY RH (w/ Climate Control Seat System)
    1. Install the climate control blower with the 3 nuts.
      Fig 1: Locating Climate Control Blower Nuts
      G04952982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SEAT CLIMATE CONTROL CONTROLLER RH (w/ Climate Control Seat System)
    1. Attach the 2 claws and install the climate control controller.
    2. Install the 2 screws and connect the 2 connectors.
      Fig 2: Disconnecting Connectors And Screws
      G04952981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 3 wire harness clamps and connect the 2 connectors.
      Fig 3: Identifying Wire Harness Clamps
      G04952980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR SEAT BELT INNER ANCHOR BRACKET ASSEMBLY RH
    1. Install the anchor bracket with the nut.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      Fig 4: Identifying Anchor Bracket Nut
      G04952979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR SEAT INNER BELT ASSEMBLY RH  (See INSTALLATION )
  5. INSTALL REAR SEAT WIRE RH
  6. INSTALL SEAT VIBRATOR ASSEMBLY
    1. Install the vibrator with the 4 nuts.
    2. Connect the connector.
      Fig 5: Locating Seat Vibrator Connector
      G04952978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL SEATBACK CLIMATE BLOWER SUB-ASSEMBLY RH (w/ Climate Control Seat System)
    1. Attach the 3 hooks and install the climate blower.
      Fig 6: Identifying Climate Blower Hooks
      G04952987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 3 nuts and connect the 2 connectors.
      Fig 7: Locating Connectors And Nuts
      G04952976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR SEATBACK MAT RH
    1. Install the seatback mat with the 6 clamps.

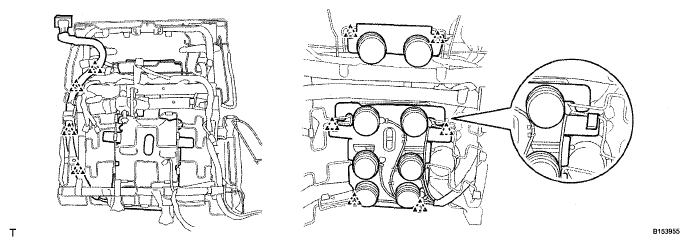

      Fig 8: Removing Rear Seatback Mat Clamps
      G04952975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 hose clamps.
  9. INSTALL REAR SEATBACK COVER SUB-ASSEMBLY RH

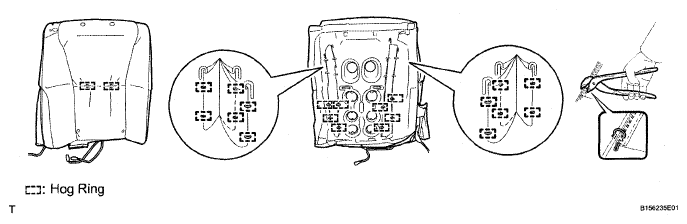

    Fig 9: Identifying Rear Seatback Cover Sub-Assembly RH
    G04952990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using hog ring pliers, install the seatback cover to the seatback pad with new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, avoid wrinkling the cover.
  10. INSTALL SEATBACK COVER WITH PAD
    1. Attach the 8 hooks and install the seatback cover to the seatback spring.
      Fig 10: Identifying Seatback Cover Hooks
      G04952991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Climate Control Seat System:
      1. Fix the wire harness in place with the clip.
      2. Connect the connector.
        Fig 11: Identifying Climate Control Seat System Connector
        G04952972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 seatback brackets with the nut.

      Torque: 5.6 N*m (57 kgf*cm, 50 in.*lbf)

      Fig 12: Identifying Seatback Brackets Nut
      G04952993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using hog ring pliers, install the seatback cover (with pad) to the seatback spring with 6 new hog rings.
    5. Attach the hook.
    6. Install the rubber band of the seatback cover to the seatback spring.
      Fig 13: Identifying Seatback Cover Rubber Band
      G04952970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Using hog ring pliers, install the seatback cover (with pad) to the seatback spring with new hog rings and attach the hooks.
      NOTE: When installing the hog rings, avoid wrinkling the cover.

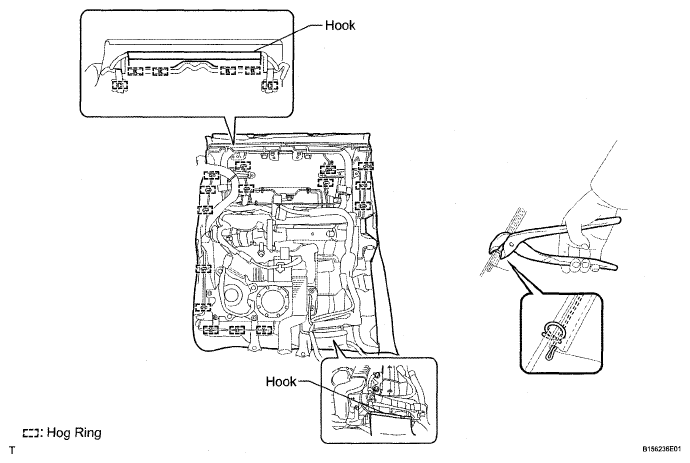

      Fig 14: Installing Seatback Cover (With Pad) Hog Ring
      G04952995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Attach the 3 hooks of the seatback cover to the seatback spring.
      Fig 15: Identifying Seatback Cover Hooks
      G04952996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY RH
    1. Install the headrest adjuster.
    2. Attach the 2 claws and install the 2 bolts.
    3. Connect the connector.
    4. Install the wire harness clamp.
      5. Fig 16: Identifying Rear No. 1 Seat Headrest Adjuster Sub-Assembly
      G04952849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL SEAT CLIMATE CONTROL ECU RH (w/ Climate Control Seat System)
    1. Install the climate control ECU with the 2 bolts.
    2. Connect the 2 connectors.
      Fig 17: Identifying Climate Control ECU Connectors And Bolts
      G04952966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL POSITION CONTROL ECU RH
    1. Install the position control ECU with the 2 bolts.
    2. Connect the 2 connectors.
      Fig 18: Identifying Position Control ECU Connectors And Bolts
      G04952965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL REAR SEAT HEADREST SUPPORT RH
    1. Attach the 4 claws and install the 2 headrest supports.
      Fig 19: Identifying Headrest Supports Claws
      G04952848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL REAR SEAT HEADREST ASSEMBLY RH
    1. Install the headrest with the 2 pins.
      Fig 20: Locating Headrest Pins
      G04952902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL REAR SEAT SHOULDER BELT GUIDE ASSEMBLY RH
    1. Install the shoulder belt guide with the 3 screws.
      Fig 21: Identifying Shoulder Belt Guide Screws
      G04952962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL REAR SEAT CUSHION COVER SUB-ASSEMBLY RH
    1. Attach the 10 claws and fasten the fastener. Then install the ottoman part of the seat cushion.
    2. Install the 2 fastening tapes.
    3. Using hog ring pliers, install the seat cushion cover to the seat cushion pad with new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, avoid wrinkling the cover.

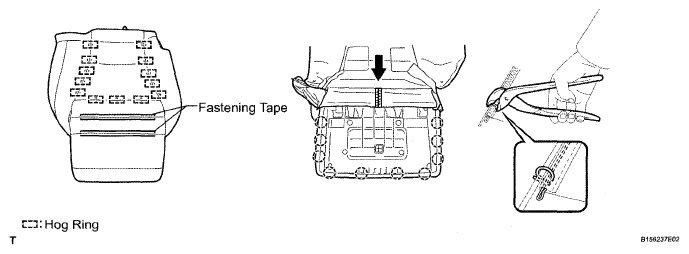

        Fig 22: Identifying Rear Seat Cushion Cover Sub-Assembly
        G04953003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL REAR SEAT CUSHION SPRING ASSEMBLY RH

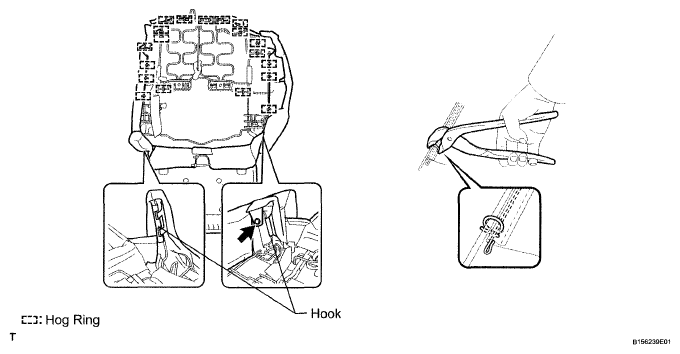

    Fig 23: Installing Rear Seat Cushion Spring Assembly
    G04953004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using hog ring pliers, install the seat cushion spring to the seat pad (with cover) with new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, avoid wrinkling the cover.
    2. Attach the hooks and install the clip.
  19. INSTALL SEAT CUSHION CLIMATE BLOWER SUB-ASSEMBLY LH (w/ Climate Control Seat System)
    1. Install the climate blower with the 3 nuts.
      Fig 24: Identifying Climate Blower Nuts
      G04952862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL SEAT CLIMATE CONTROL CONTROLLER LH (w/ Climate Control Seat System)
    1. Attach the claws and install the climate controller.
    2. Install the 2 screws.
    3. Connect the 2 connectors.
      Fig 25: Identifying Climate Controller Claws, Screws And Connectors
      G04952861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the wire harness clamps.
      Fig 26: Identifying Wire Harness Clamps
      G04952860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL REAR SEAT BELT INNER ANCHOR BRACKET ASSEMBLY LH
    1. Install the anchor bracket with the nut.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      Fig 27: Identifying Anchor Bracket Nuts
      G04952859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL REAR SEAT INNER BELT ASSEMBLY LH  (See INSTALLATION )
  23. INSTALL REAR SEAT WIRE LH
  24. INSTALL SEATBACK CLIMATE BLOWER SUB-ASSEMBLY LH (w/ Climate Control Seat System)
    1. Attach the 3 hooks and install the climate blower.
      Fig 28: Identifying Climate Blower Hooks
      G04952955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 3 nuts and connect the 2 connectors.
      Fig 29: Locating Climate Blower Connectors And Nuts
      G04953010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL REAR SEATBACK COVER SUB-ASSEMBLY LH
    1. Using hog ring pliers, install the seatback cover to the seatback pad with new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, avoid wrinkling the cover.

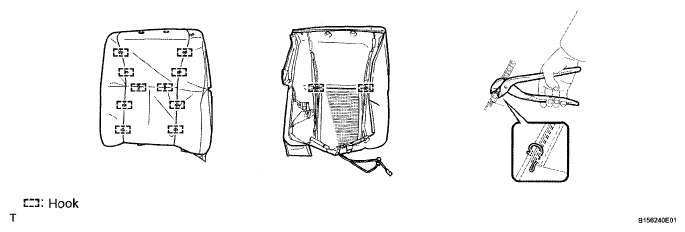

      Fig 30: Installing Rear Seatback Cover Sub-Assembly LH
      G04953011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL SEATBACK COVER WITH PAD LH
    1. Using hog ring pliers, install new hog rings and attach the hooks.
      NOTE: When installing the hog rings, avoid wrinkling the cover.

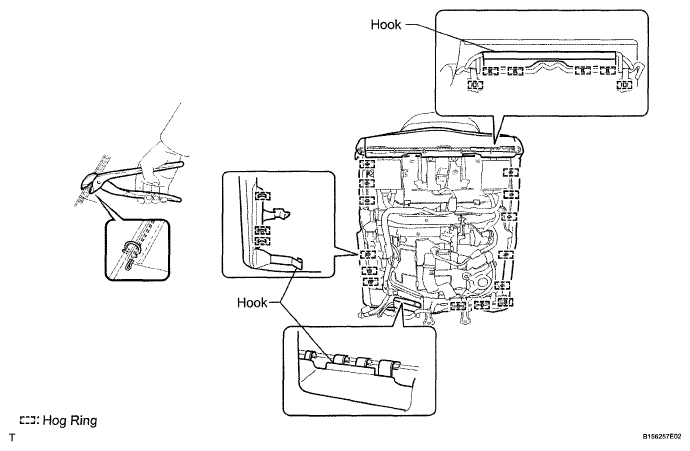

      Fig 31: Installing Seatback Cover With Pad Hooks And Hog Rings
      G04953012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Climate Control Seat System:
      1. Fix the wire harness in place with the clip.
      2. Connect the connector.
        Fig 32: Identifying Climate Control Seat System Connector And Clip
        G04953013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 seatback brackets with the nut.

      Torque: 5.6 N*m (57 kgf*cm, 50 in.*lbf)

      Fig 33: Identifying Anchor Brackets Nuts
      G04953014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the 3 hooks of the seatback cover to the seatback spring.
      Fig 34: Identifying Seatback Cover Hooks
      G04953015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY LH
    1. Install the headrest adjuster.
    2. Attach the 2 claws and install the 2 bolts.
    3. Connect the connector.
    4. Install the wire harness clamp.
      Fig 35: Identifying Rear No. 1 Seat Headrest Adjuster Sub-Assembly
      G04952849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL SEAT CLIMATE CONTROL ECU LH (w/ Climate Control Seat System)
    1. Install the seat climate ECU with the 2 bolts.
    2. Connect the 2 connectors.
      Fig 36: Identifying Seat Climate Control ECU Connectors And Bolts
      G04952851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL POSITION CONTROL ECU LH
    1. Install the position control ECU with the 2 bolts.
    2. Connect the 2 connectors.
      Fig 37: Identifying Position Control ECU Connectors And Bolts
      G04952850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL REAR SEAT HEADREST SUPPORT LH
    1. Attach the 4 claws and install the 2 headrest supports.
      Fig 38: Identifying Headrest Supports Claws
      G04952848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL REAR SEAT HEADREST ASSEMBLY LH
    1. Install the headrest with the 2 pins.
      Fig 39: Locating Headrest Pins
      G04952902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL REAR SEAT SHOULDER BELT GUIDE ASSEMBLY LH
    1. Install the shoulder belt guide with the 3 screws.
      Fig 40: Identifying Shoulder Belt Guide Screws
      G04952846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL REAR SEAT CUSHION COVER SUB-ASSEMBLY LH
    1. Using hog ring pliers, install the seat cushion cover to the seat cushion pad with new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, avoid wrinkling the cover.

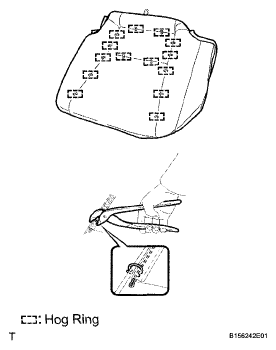

      Fig 41: Identifying Rear Seat Cushion Cover Sub-Assembly LH
      G04953022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL REAR SEAT CUSHION SPRING ASSEMBLY LH
    1. Using hog ring pliers, install the seat cushion spring to the seat pad (with cover) with new hog rings.
      NOTE: When installing the hog rings, avoid wrinkling the cover.

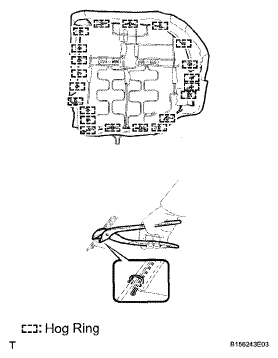

      Fig 42: Identifying Rear Seat Cushion Spring Assembly LH
      G04953023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
