REAR SEAT ASSEMBLY (for Power Seat): Components

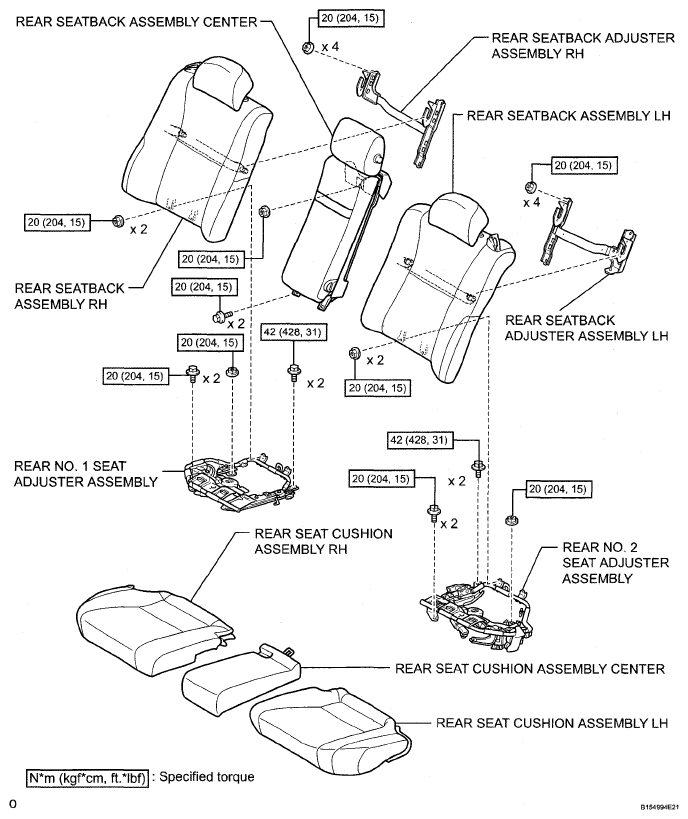

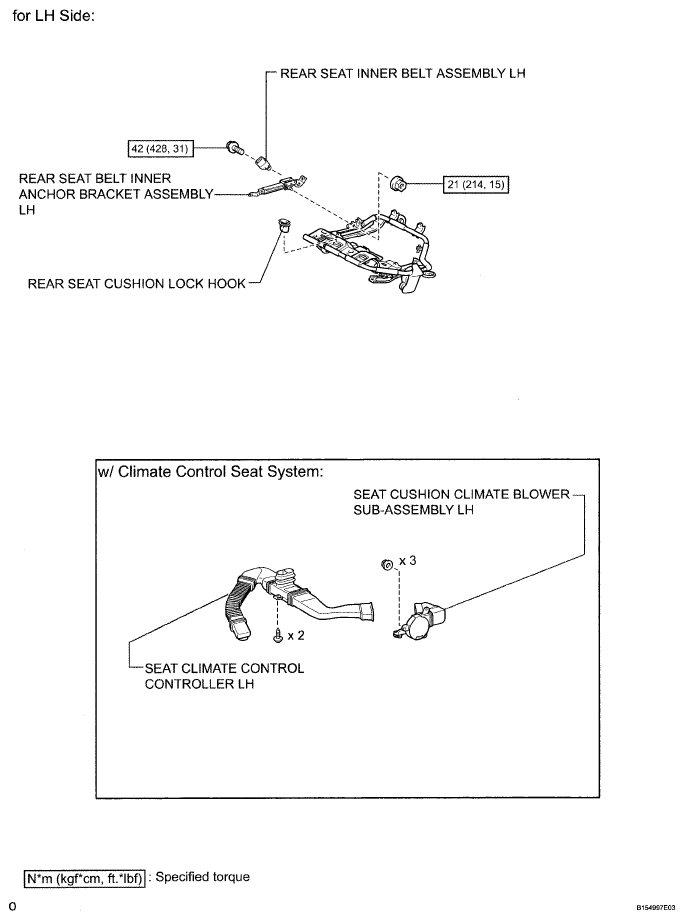

Fig 1: Rear Seat Assembly Replacement Components With Torque Specifications (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Rear Seat Assembly Components (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Rear Seat Assembly Replacement Components With Torque Specifications (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Rear Seat Assembly Replacement Components With Torque Specifications (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Rear Seat Assembly Components (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Rear Seat Assembly Replacement Components With Torque Specifications (6 Of 9)

Fig 7: Rear Seat Assembly Replacement Components With Torque Specifications (7 Of 9)

Fig 8: Identifying Rear Seat Assembly Components (8 Of 9)

Fig 9: Rear Seat Assembly Replacement Components With Torque Specifications (9 Of 9)
