REAR SEAT ASSEMBLY (for Ottoman): Disassembly

CAUTION: Wear protective gloves. Sharp areas on the seatback spring, seat adjuster and seat cushion spring may injure your hands.
  1. REMOVE REAR SEAT CUSHION SPRING ASSEMBLY LH
    1. Remove the hog rings and seat cushion spring.
      Fig 1: Identifying Seat Cushion Spring Hog Rings
      G04952941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR SEAT CUSHION COVER SUB-ASSEMBLY LH
    1. Remove the hog rings and seat cushion cover from the seat cushion pad.
    Fig 2: Identifying Seat Cushion Cover Hog Rings
    G04952942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SEAT SHOULDER BELT GUIDE ASSEMBLY LH
    1. Remove the 3 screws and shoulder belt guide.
    Fig 3: Identifying Shoulder Belt Guide Screws
    G04952846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR SEAT HEADREST ASSEMBLY LH
    1. Remove the 2 pins and headrest.
      Fig 4: Removing Pins And Headrest
      G04952847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SEAT HEADREST SUPPORT LH
    1. Detach the 4 claws and remove the 2 headrest supports.
      Fig 5: Identifying Headrest Supports Claws
      G04952848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE POSITION CONTROL ECU LH
    1. Disconnect the 2 connectors.
    2. Remove the 2 bolts and position control ECU.
      Fig 6: Identifying Position Control ECU Connector
      G04952850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SEAT CLIMATE CONTROL ECU LH (w/ Climate Control Seat System)
    1. Disconnect the 2 connectors.
    2. Remove the 2 bolts and seat climate control ECU.
      Fig 7: Identifying Seat Climate Control ECU Bolts
      G04952851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY LH
    1. Remove the wire harness clamp.
    2. Disconnect the connector.
    3. Remove the 2 bolts and detach the 2 claws.
    4. Remove the headrest adjuster.
      Fig 8: Identifying Rear No. 1 Seat Headrest Adjuster Sub-Assembly
      G04952849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE SEATBACK COVER WITH PAD LH
    1. Detach the 3 hooks of the seatback cover from the seatback spring.
      Fig 9: Identifying Seatback Cover Hooks
      G04952854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and 2 seatback cover brackets.
      Fig 10: Locating Seatback Cover Brackets Nuts
      G04952950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Climate Control Seat System:
      1. Disconnect the connector.
      2. Detach the clip and disconnect the wire harness.
      Fig 11: Identifying Climate Control Seat System Wire Harness Clip
      G04952853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the hooks and remove the hog rings and seatback cover (with pad) from the seatback spring.
      Fig 12: Identifying Seatback Cover (With Pad) Hooks And Hog Rings
      G04952855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR SEATBACK COVER SUB-ASSEMBLY LH
    1. Remove the hog rings and seatback cover from the seatback pad.

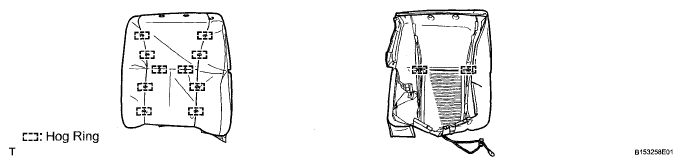

      Fig 13: Removing Rear Seatback Cover Sub-Assembly LH
      G04952953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE SEATBACK CLIMATE BLOWER SUB-ASSEMBLY LH (w/ Climate Control Seat System)
    1. Disconnect the 2 connectors and remove the 3 nuts.
      Fig 14: Identifying Climate Blower Sub-Assembly Nuts And Connectors
      G04952857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 3 hooks and remove the climate controller and blower.
      Fig 15: Identifying Climate Controller And Blower Hooks
      G04952955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR SEAT WIRE LH
  13. REMOVE REAR SEAT INNER BELT ASSEMBLY LH  (See REMOVAL )
  14. REMOVE REAR SEAT BELT INNER ANCHOR BRACKET ASSEMBLY LH
    1. Remove the nut and anchor bracket.
      Fig 16: Identifying Anchor Bracket Nuts
      G04952859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE SEAT CLIMATE CONTROL CONTROLLER LH (w/ Climate Control Seat System)
    1. Remove the wire harness clamp.
      Fig 17: Identifying Wire Harness Clamp
      G04952860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 connectors.
    3. Remove the 2 screws.
      Fig 18: Identifying Climate Controller Screws
      G04952861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the claws and remove the climate controller.
  16. REMOVE SEAT CUSHION CLIMATE BLOWER SUB-ASSEMBLY LH (w/ Climate Control Seat System)
    1. Remove the 3 nuts and climate blower.
      Fig 19: Identifying Climate Blower Nuts
      G04952862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR SEAT CUSHION SPRING ASSEMBLY RH
    1. Using a clip remover, remove the clip.
    2. Detach the hooks and remove the hog rings. Then remove the seat cushion spring.

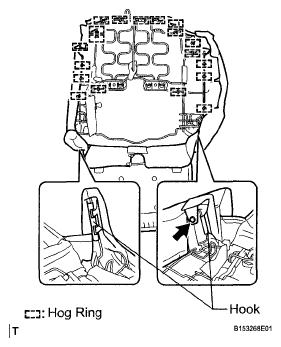

      Fig 20: Identifying Seat Cushion Spring Hooks And Hog Rings
      G04952960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR SEAT CUSHION COVER SUB-ASSEMBLY RH
    1. Remove the hog rings and the 2 fastening tapes.

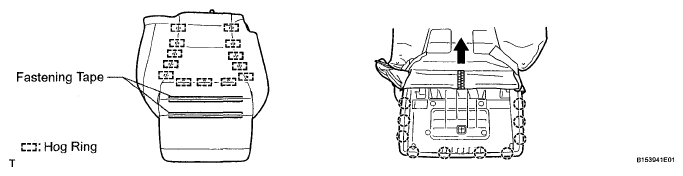

      Fig 21: Identifying Fastening Tapes And Hog Rings
      G04952961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Unfasten the fastener and detach the 10 claws. Then remove the seat cushion cover.
  19. REMOVE REAR SEAT SHOULDER BELT GUIDE ASSEMBLY RH
    1. Remove the 3 screws and shoulder belt guide.
      Fig 22: Identifying Shoulder Belt Guide Screws
      G04952962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE REAR SEAT HEADREST ASSEMBLY RH
    1. Remove the 2 pins and headrest.
      Fig 23: Removing Headrest Pins
      G04952847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE REAR SEAT HEADREST SUPPORT RH
    1. Detach the 4 claws and remove the 2 headrest supports.
      Fig 24: Identifying Headrest Supports Claws
      G04952848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE POSITION CONTROL ECU RH
    1. Disconnect the 2 connectors.
    2. Remove the 2 bolts and position control ECU.
      Fig 25: Identifying Position Control ECU Connectors Bolts
      G04952965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE SEAT CLIMATE CONTROL ECU RH (w/ Climate Control Seat System)
    1. Disconnect the 2 connectors.
    2. Remove the 2 bolts and climate control ECU.
      Fig 26: Identifying Climate Control ECU Connectors Bolts
      G04952966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY RH
    1. Remove the wire harness clamp.
    2. Disconnect the connector.
    3. Remove the 2 bolts and detach the 2 claws.
    4. Remove the headrest adjuster.
      Fig 27: Identifying Rear No. 1 Seat Headrest Adjuster Sub-Assembly
      G04952849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE SEATBACK COVER WITH PAD RH
    1. Detach the 3 hooks of the seatback cover from the seatback spring.
      Fig 28: Identifying Seatback Cover Hooks
      G04952968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the hooks and remove the hog rings.

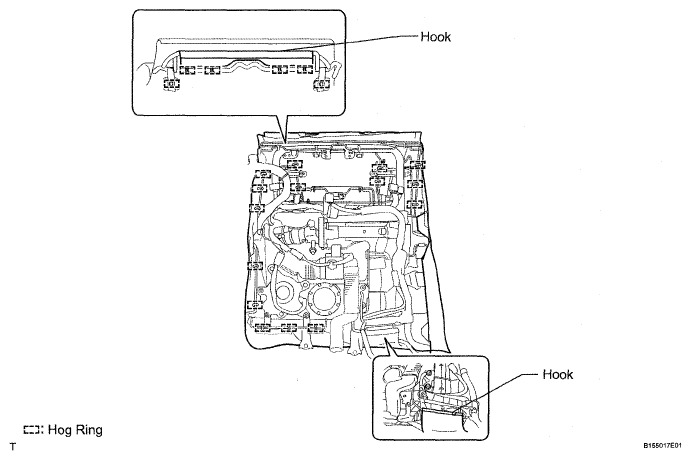

      Fig 29: Identifying Hog Rings And Hooks
      G04952969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Release the rubber band of the seatback cover from the seatback spring.
      Fig 30: Identifying Rubber Band
      G04952970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 6 hog rings and detach the hook.
      5. Fig 31: Identifying Hook And Hog Rings
      G04952971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the nut and 2 seatback brackets.
    6. w/ Climate Control Seat System:
      1. Disconnect the connector.
      2. Detach the clip and disconnect the wire harness.
        Fig 32: Identifying Climate Control Seat System Wire Harness And Clip
        G04952972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Detach the 8 hooks and remove the seatback cover from the seatback spring.
      8. Fig 33: Identifying Seatback Cover Hooks
      G04952973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REAR SEATBACK COVER SUB-ASSEMBLY RH
    1. Remove the hog rings and the seatback cover from the seatback pad.

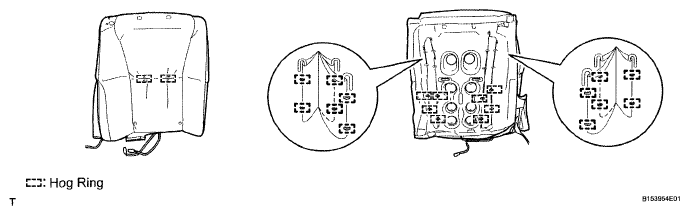

      Fig 34: Identifying Seatback Cover Hog Rings
      G04952974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE REAR SEATBACK MAT RH
    1. Remove the 4 hose clamps.
    2. Remove the 6 clamps and seatback mat.
      Fig 35: Removing Rear Seatback Mat Clamps
      G04952975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE SEATBACK CLIMATE BLOWER SUB-ASSEMBLY RH (w/ Climate Control Seat System)
    1. Disconnect the 2 connectors and remove the 3 nuts.
      Fig 36: Locating Seatback Climate Blower Sub-Assembly Nuts And Connectors
      G04952976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 3 hooks and remove the climate controller and blower.
      Fig 37: Identifying Climate Controller Hooks
      G04952977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE SEAT VIBRATOR ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 4 nuts and vibrator.
      Fig 38: Locating Seat Vibrator Nuts
      G04952978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE REAR SEAT WIRE RH
  31. REMOVE REAR SEAT INNER BELT ASSEMBLY RH  (See REMOVAL )
  32. REMOVE REAR SEAT BELT INNER ANCHOR BRACKET ASSEMBLY RH
    1. Remove the nut and anchor bracket.
      Fig 39: Identifying Anchor Bracket Nut
      G04952979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE SEAT CLIMATE CONTROL CONTROLLER RH (w/ Climate Control Seat System)
    1. Disconnect the 2 connectors and remove the 3 wire harness clamps.
      Fig 40: Identifying Wire Harness Clamps And Connectors
      G04952980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 connectors and remove the 2 screws.
      Fig 41: Disconnecting Connectors And Screws
      G04952981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 2 claws and remove the climate control controller.
  34. REMOVE SEAT CUSHION CLIMATE BLOWER SUB-ASSEMBLY RH (w/ Climate Control Seat System)
    1. Remove the 3 nuts and climate control blower.
      Fig 42: Locating Climate Control Blower Nuts
      G04952982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
