REAR SEAT ASSEMBLY (for Ottoman): Components

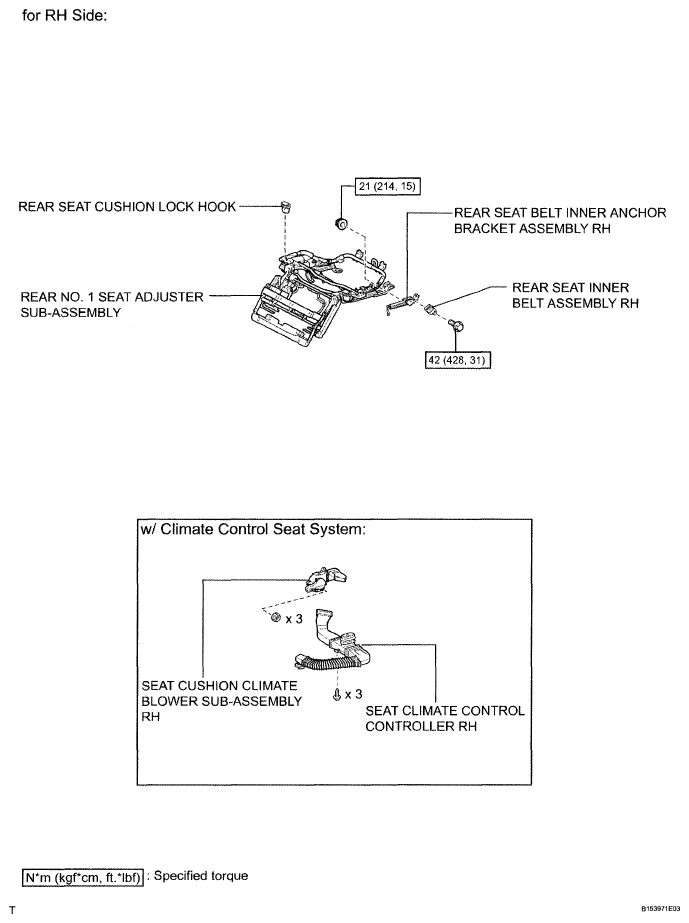

Fig 1: Rear Seat Assembly Replacement Components With Torque Specifications (For Ottoman) (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

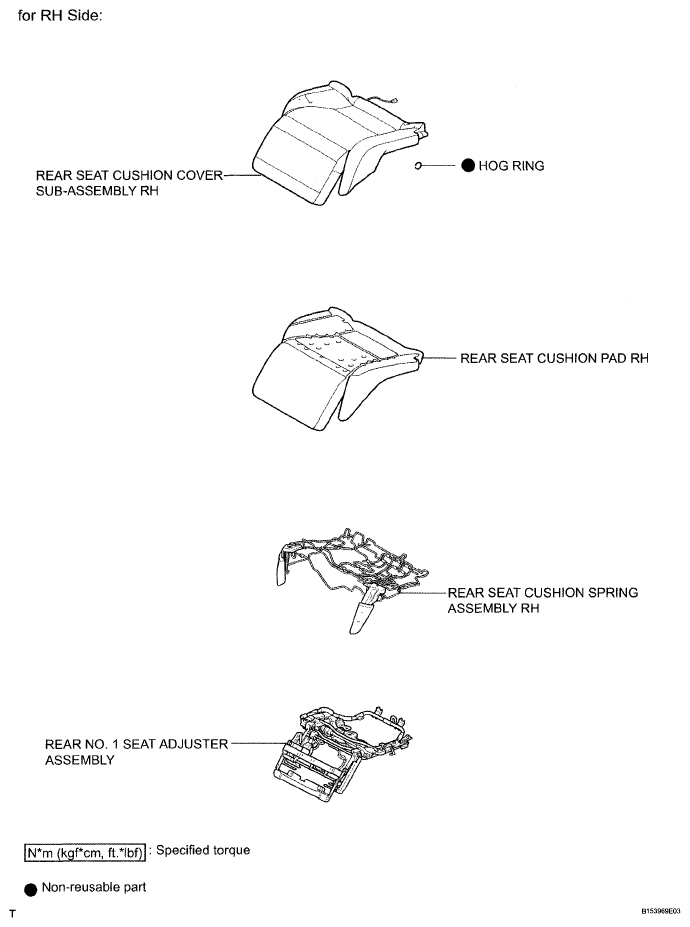

Fig 2: Identifying Rear Seat Assembly Components (For Ottoman) (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

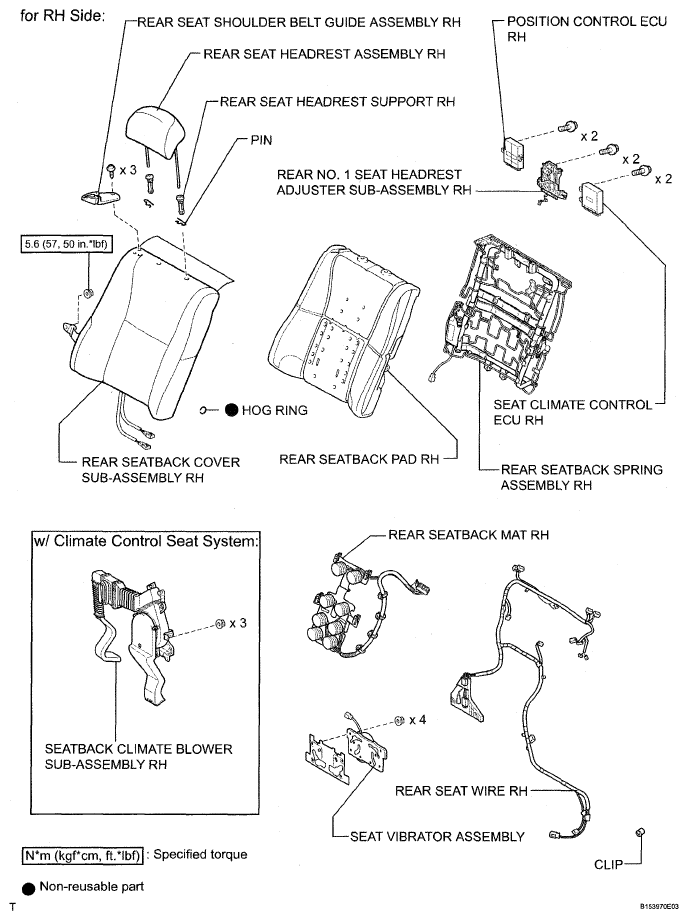

Fig 3: Rear Seat Assembly Replacement Components With Torque Specifications (For Ottoman) (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

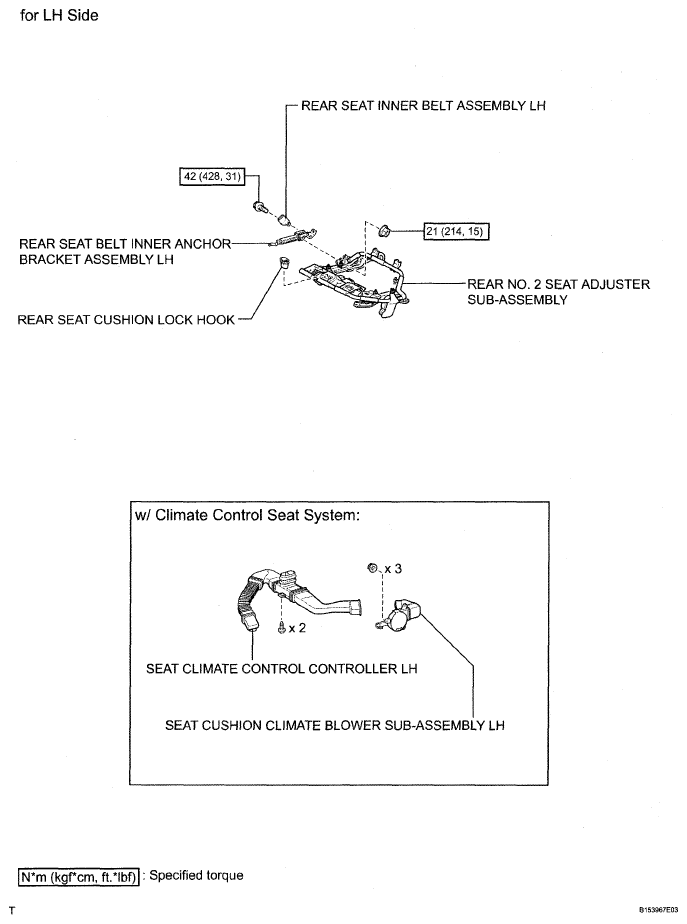

Fig 4: Rear Seat Assembly Replacement Components With Torque Specifications (For Ottoman) (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

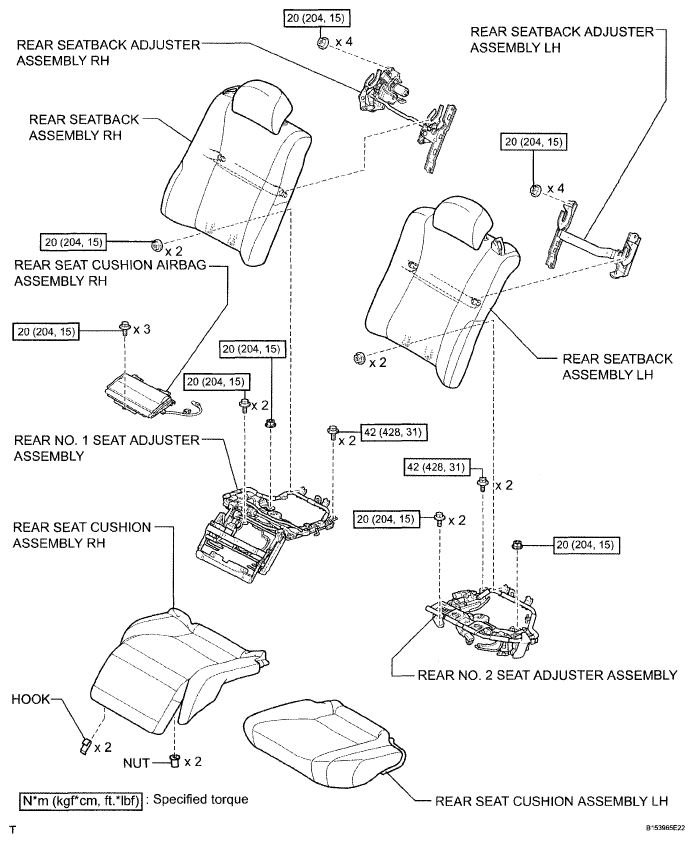

Fig 5: Rear Seat Assembly Replacement Components With Torque Specifications (For Ottoman) (5 Of 7)

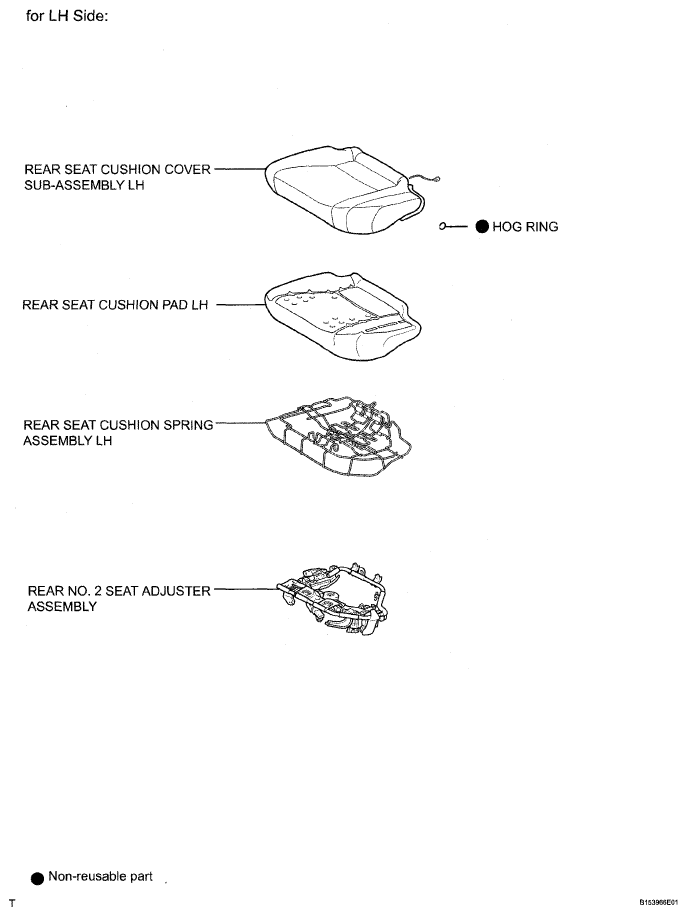

Fig 6: Rear Seat Assembly Replacement Components With Torque Specifications (For Ottoman) (6 Of 7)

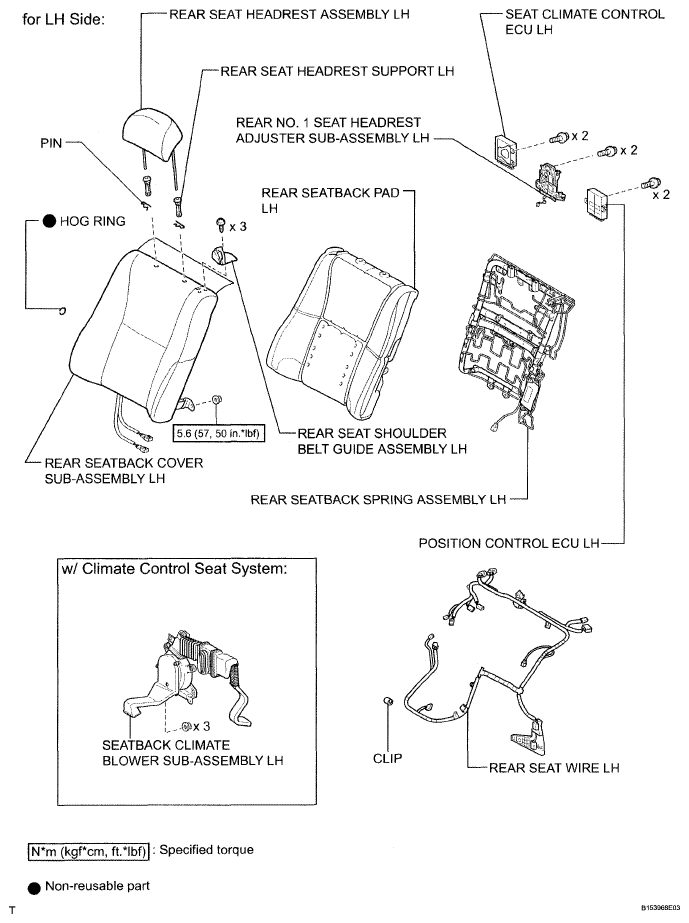

Fig 7: Rear Seat Assembly Replacement Components With Torque Specifications (For Ottoman) (7 Of 7)
