Spiral Cable: Inspection

  1. INSPECT SPIRAL CABLE
    1. If there are any defects as mentioned below, replace the spiral cable with a new one:

      Scratches, cracks, dents or chips on the connector or the spiral cable.

      Fig 1: Identifying Pin And Claws On Spiral Cable
      G04979599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect the spiral cable.
      1. Measure the resistance according to the value(s) in the table below.

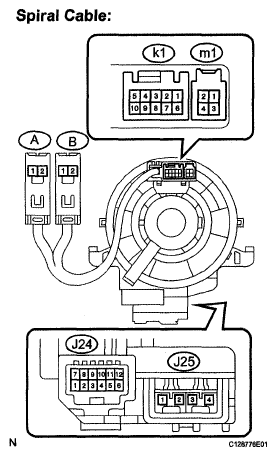

        Fig 2: Identifying Spiral Cable Connector Terminals
        G04979600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard resistance

        SPIRAL CABLE RESISTANCE

        Tester connection Condition Specified condition
        k1-1 - m1-2 Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        k1-1- J24-8 (HO) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        k1-2 - J24-9 (SUP) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        k1-3 - J24-10 (SDN) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        M-4 - J24-11 (DIST) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        k1-5 - J24-12 (IL+2) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        k1-6 - m1-4 Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        k1-6 - J24-2 (ECC) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        k1-7 - J24-3 (DISP) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        k1-8 - J24-4 (EAU) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        k1-9 - J24-5 (AU2) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        k1-10 - J24-6 (AU1) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        m1-1 - J24-7 (R/N) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        m1-2 - J24-8 (HO) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        m1-3 - J24-1 (CCS) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        m1-4 - J24-2 (ECC) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        A-1 (D-) - J25-2 (D-) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        A-2 (D+) - J25-1 (D+) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        B-1 (D2-) - J25-3 (D2-) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        B-2 (D2+) - J25-4 (D2+) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
