Rain Sensor: Installation

INSTALL RAIN SENSOR TAPE

Peel off the releasing sheet (yellow side) and attach the rain sensor tape on the position indicated in Fig 1 (the sensor part of the rain sensor) while pushing out air bubbles with fingers.
Peel off the releasing sheet (white side).

NOTE:

When reusing the rain sensor, clean up dirt on the sensor part with a cloth, etc.
Do not touch the sensor tape surface directly with fingers.

AREA MEASUREMENT DESCRIPTION TABLE

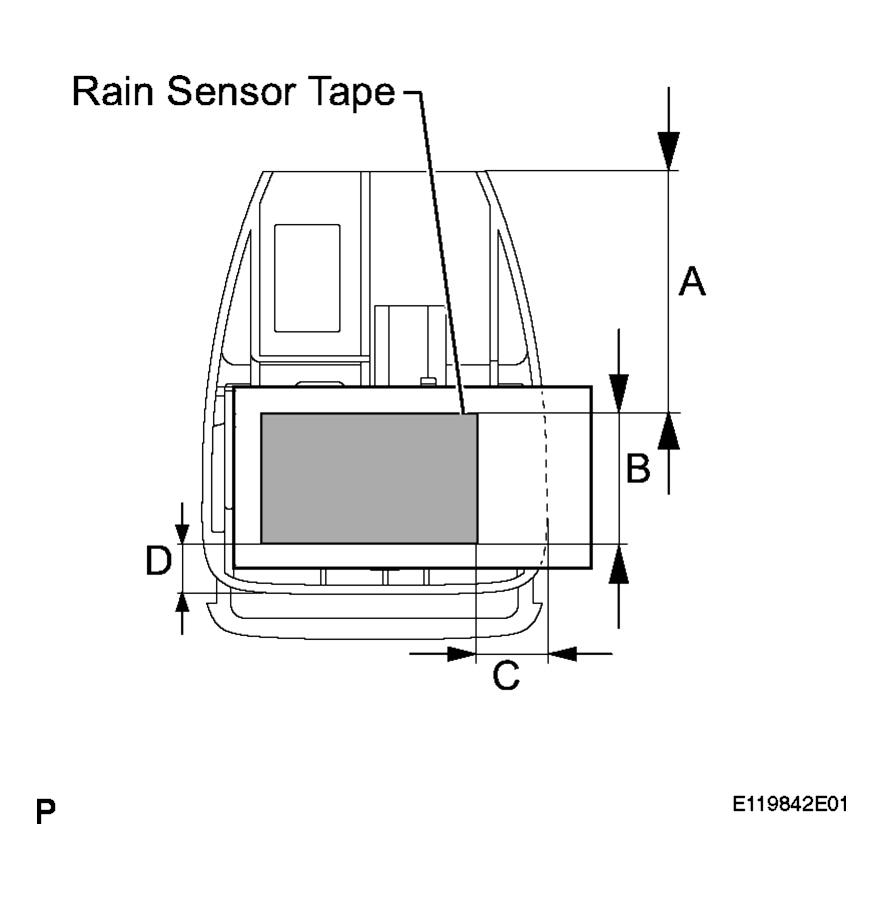

Fig 1: Identifying Rain Sensor Tape

Connect the connector.
Engage the claw to set the position.
Gradually attach the rain sensor to the glass surface to prevent air bubbles from forming in between them.

Fig 2: Engaging Claw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Push in the stopper.

Fig 3: Pushing In Stopper
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
- Do not touch the sensor tape surface and the glass surface directly with fingers.
- Clean up dirt on the glass with a cloth, etc.
- After installing the rain sensor, there should be no air bubbles between the windshield glass and the rain sensor tape.
