Home >> Lexus >> 2007 >> IS 250 AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control >> VEHICLE STABILITY CONTROL SYSTEM (w/o VDIM) >> DTC C0226/21 SFR Solenoid Circuit; DTC C0236/22 SFL Solenoid Circuit; DTC C0246/23 SRR Solenoid Circuit; DTC C0256/24 ISRL Solenoid Circuit; DTC C1225/25 SM Solenoid Circuit >> Wiring Diagram

DTC C0226/21 SFR Solenoid Circuit; DTC C0236/22 SFL Solenoid Circuit; DTC C0246/23 SRR Solenoid Circuit; DTC C0256/24 ISRL Solenoid Circuit; DTC C1225/25 SM Solenoid Circuit: Wiring Diagram

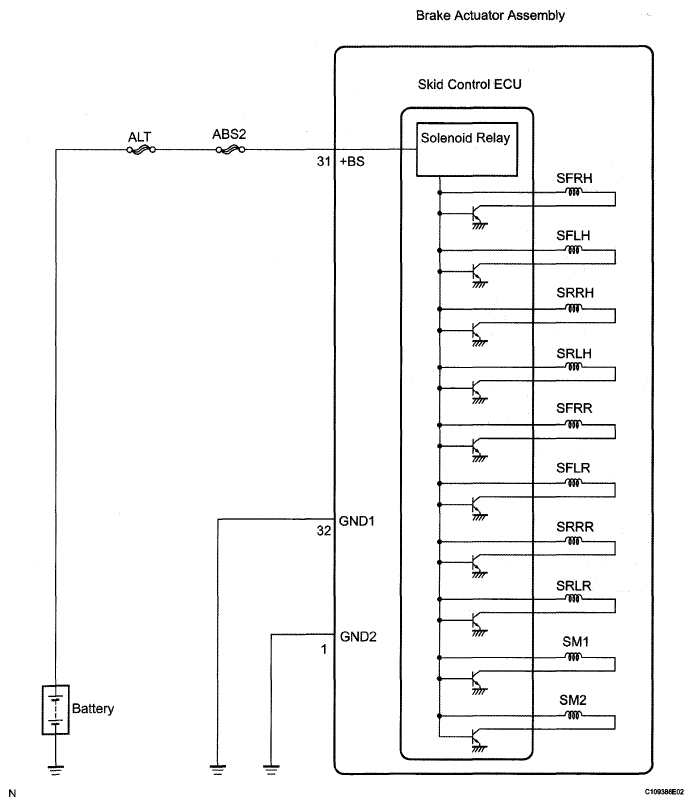

Fig 1: SFR, SFL, SRR, SM Solenoid - Wiring Diagram
G05319477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
