DTC C0226/21 SFR Solenoid Circuit; DTC C0236/22 SFL Solenoid Circuit; DTC C0246/23 SRR Solenoid Circuit; DTC C0256/24 ISRL Solenoid Circuit: Wiring Diagram

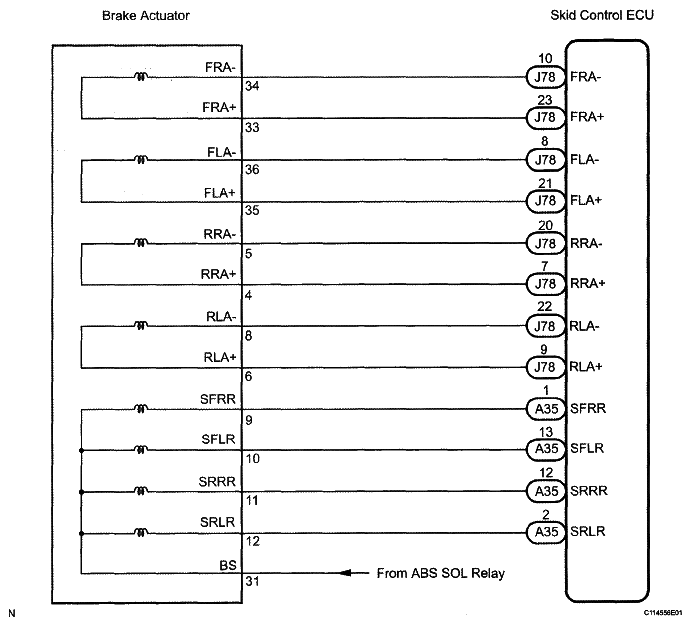

Fig 1: Solenoid Circuit And Skid Control ECU - Wiring Diagram
G05319318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
