Instrument Panel Safety Pad: Installation

  1. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
  2. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
  3. INSTALL NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System)
  4. INSTALL ANTENNA CORD SUB-ASSEMBLY
  5. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY
  6. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
  7. INSTALL NO. 2 CONNECTOR HOLDER
  8. INSTALL NO. 3 INSTRUMENT PANEL WIRE
  9. INSTALL AUTOMATIC LIGHT CONTROL SENSOR
  10. INSTALL GPS ANTENNA ASSEMBLY (w/ LEXUS Link System)
  11. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT
  12. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT
  13. INSTALL NO. 3 HEATER TO REGISTER DUCT
  14. INSTALL DEFROSTER NOZZLE ASSEMBLY
  15. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Using a torque wrench, install the instrument panel safety pad sub-assembly with the bolt.

    Torque: 20 N*m (204 kgf*cm, 14 ft.*lbf)

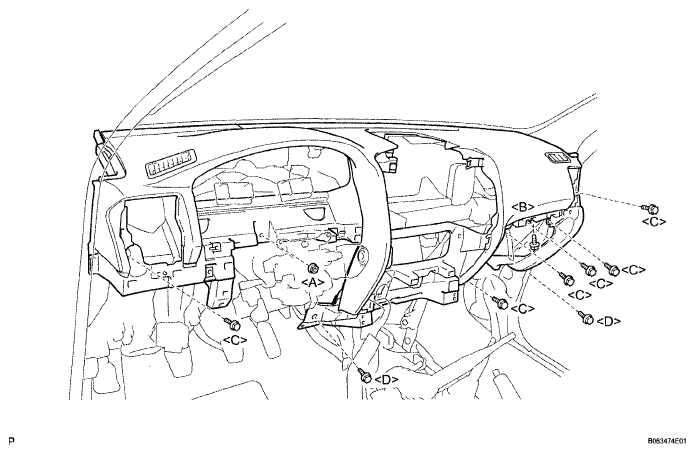

    Fig 1: Identifying Instrument Panel Safety Pad Sub-Assembly Bolts And Nut
    G05266884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL FRONT PILLAR GARNISH RH
  17. INSTALL FRONT PILLAR GARNISH LH
  18. INSTALL ASSIST GRIP ASSEMBLY
  19. INSTALL DISC PLAYER CHANGER (w/ CD Changer)
  20. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
  21. INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
  22. INSTALL PASSENGER AIRBAG CONNECTOR
  23. INSTALL INSTRUMENT PANEL ORNAMENT
  24. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER
  25. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
  26. INSTALL COMBINATION METER ASSEMBLY
  27. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
  28. INSTALL INSTRUMENT PANEL LOWER LH
  29. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL RH
  30. INSTALL INSTRUMENT PANEL FINISH PLATE
  31. INSTALL NO. 1 SWITCH HOLE BASE
  32. INSTALL INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
  33. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
  34. INSTALL COWL SIDE TRIM BOARD RH
  35. INSTALL COWL SIDE TRIM BOARD LH
  36. INSTALL FRONT FLOOR FOOTREST
  37. INSTALL FRONT DOOR SCUFF PLATE RH
  38. INSTALL FRONT DOOR SCUFF PLATE LH
  39. INSTALL TURN SIGNAL SWITCH ASSEMBLY
  40. INSTALL STEERING COLUMN COVER
  41. INSTALL STEERING WHEEL ASSEMBLY
  42. INSTALL STEERING PAD
  43. INSTALL LOWER NO. 3 STEERING WHEEL COVER
  44. INSTALL LOWER NO. 2 STEERING WHEEL COVER
  45. INSTALL LOWER CONSOLE BOX
  46. CONNECT FRONT CONSOLE UPPER PANEL GARNISH
  47. INSTALL CONSOLE BOX INSERT
  48. INSTALL FRONT NO. 2 CONSOLE BOX INSERT
  49. INSTALL REAR CONSOLE BOX ASSEMBLY
  50. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY
  51. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
  52. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL
  53. INSTALL INSTRUMENT PANEL GARNISH SUB-ASSEMBLY RH
  54. INSTALL INSTRUMENT PANEL GARNISH SUB-ASSEMBLY LH
  55. INSTALL UPPER CONSOLE PANEL ASSEMBLY
  56. INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH
  57. INSTALL NO. 2 CONSOLE UPPER PANEL GARNISH
  58. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
  59. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
  60. CONNECT BATTERY NEGATIVE TERMINAL
