Inspection Procedure

HINT:

INSPECTION PROCEDURE

Abnormal bank	Advanced timing over (Valve timing is out of specified range)	Retarded timing over (Valve timing is out of specified range)
Bank 1	P0011	P0012
Bank 2	P0021	P0022

If DTC P0011 or P0012 is displayed, check the right bank VVT system for intake camshaft circuit (bank 1).
Bank 1 refers to the bank that includes No. 1 cylinder.
If DTC P0021 or P0022 is displayed, check the left bank VVT system for intake camshaft circuit (bank 2).
Bank 2 refers to the bank that does not include No. 1 cylinder.
Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction (see FREEZE FRAME DATA ).

CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0011, P0012, P0021 OR P0022)

Put the engine in inspection mode (see INSPECTION MODE PROCEDURE ).
Connect the intelligent tester to the DLC3.
Turn the tester ON.
Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES.

Read DTCs.

Result

RESULT CHART

Display (DTC Output)	Proceed to
POOH, P0012, P0021 or P0022	A
POOH, P0012, P0021 or P0022 and other DTCs	B

HINT:

If any DTCs other than P0011, P0012, P0021 or P0022 are output, troubleshoot those DTCs first.

B: GO TO DTC CHART

A: GO TO Next Step

PERFORM ACTIVE TEST BY INTELLIGENT TESTER (OPERATE OCV)

Put the engine in inspection mode (see INSPECTION MODE PROCEDURE ).
Connect the intelligent tester to the DLC3.
Turn the tester ON.
Warm up the engine.
Enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / VVT CTRL B1 or VVT CTRL B2.

Check the engine speed while operating the Oil Control Valve (OCV) using the tester.

TESTER OPERATION SPECIFIED CONDITION CHART

Tester Operation	Specified Condition
OCV OFF	Normal engine speed
OCV ON	Engine idles roughly or stalls (soon after OCV switched from OFF to ON)

NG: GO TO step 4

OK: GO TO Next Step

CHECK WHETHER DTC OUTPUT RECURS (DTC P0011, P0012, P0021 OR P0022)
1. Put the engine in inspection mode (see INSPECTION MODE PROCEDURE ).
2. Connect the intelligent tester to the DLC3.
3. Turn the tester ON.
4. Clear DTCs (see DTC CHECK/CLEAR ).
5. Warm up the engine.
6. Switch the ECM from normal mode to check mode using the tester (see CHECK MODE PROCEDURE ).
7. Drive the vehicle for more than 10 minutes.
8. Read DTCs using the tester.
  OK:

  No DTC output.
NG: GO TO step 4

OK: END
CHECK VALVE TIMING (CHECK FOR LOOSE AND JUMPED TEETH ON TIMING CHAIN)
1. Remove the cylinder head cover RH and LH.
2. Turn the crankshaft pulley, and align its groove with the timing mark "0" of the timing chain cover.
3. Check that the timing marks of the camshaft timing gears are aligned with the timing marks of the bearing cap as shown in the illustration.
  If not, turn the crankshaft 1 revolution (360°), then align the marks as above.

  OK:

  Timing marks on camshaft timing gears are aligned as shown in the illustration.
4. Reinstall the cylinder head cover.

  Fig 1: Identifying Timing Marks Of Camshaft Timing Gears
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: ADJUST VALVE TIMING

OK: GO TO Next Step
INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (OCV FOR INTAKE CAMSHAFT)
1. Remove the OCV.
2. Measure the resistance between the terminals of the OCV.
  Standard resistance:

  6.9 to 7.9 Ω at 20°C (68°F)
3. Apply positive battery voltage to terminal 1 and negative battery voltage to terminal 2. Check the valve operation.
  OK:

  Valve moves quickly.
4. Reinstall the OCV.

  Fig 2: Measuring Resistance Between Terminals Of OCV
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

OK: GO TO Next Step
INSPECT OIL CONTROL VALVE FILTER AND PIPE
1. Remove the No. 1 or No. 2 oil pipe.
2. Remove the oil control valve filter.
3. Check that the filter and pipe are not clogged.
  OK:

  The filter and pipe are not clogged.

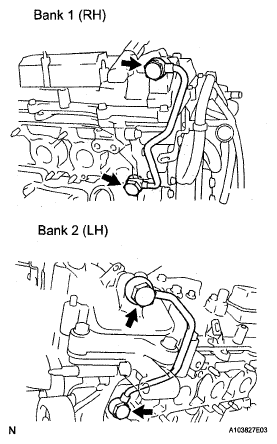

  Fig 3: Identifying No. 1 Or No. 2 Oil Pipe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: CLEAN OIL CONTROL VALVE FILTER AND PIPE

OK: GO TO Next Step
REPLACE CAMSHAFT TIMING GEAR ASSEMBLY
CHECK WHETHER DTC OUTPUT RECURS
1. Put the engine in inspection mode (see INSPECTION MODE PROCEDURE ).
2. Connect the intelligent tester to the DLC3.
3. Turn the tester ON.
4. Clear DTCs (see DTC CHECK/CLEAR ).
5. Warm up the engine.
6. Switch the ECM from normal mode using the check mode using the tester (see CHECK MODE PROCEDURE ).
7. Driver the vehicle for more than 10 minutes.
8. Read output DTCs using the intelligent tester.
  OK:

  No DTC output.

  HINT:

  DTC P0011, P0012, P0021 or P0022 is output when foreign objects in engine oil are caught in some parts of the system. These codes will stay registered even if the system returns to normal after a short time. These foreign objects are then captured by the oil filter, thus eliminating the source of the problem.
OK: SYSTEM OK

NG: REPLACE ECM
