Front No. 2 Speaker: Installation

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.
• A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY
   1. Connect the speaker connector.
   2. Temporarily install the speaker by aligning the positioning pins of the speaker with the instrument panel.
   3. Install the speaker with the 2 bolts.
      NOTE: Do not touch the cone part of the speaker.

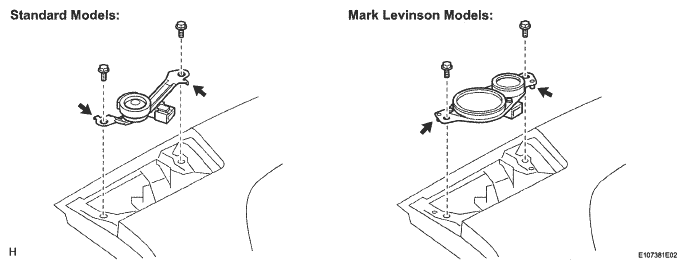

      Fig 1: Installing Front No. 2 Speaker Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
   1. Attach the 2 clips and 2 claws to install the panel.
      Fig 2: Identifying Speaker Panel Clips And Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
   1. Perform initialization (see INITIALIZATION (2006/02-2006/07) ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
