DTC P0010 Camshaft Position "A" Actuator Circuit (Bank 1); DTC P0020 Camshaft Position "A" Actuator Circuit (Bank 2): Wiring Diagram

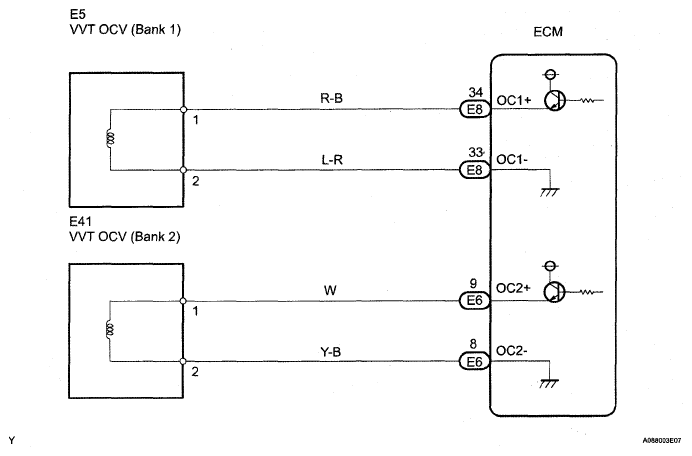

Fig 1: VVT And OCV - Wiring Diagram
G05285455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
