Air Fuel Ratio Sensor: Components

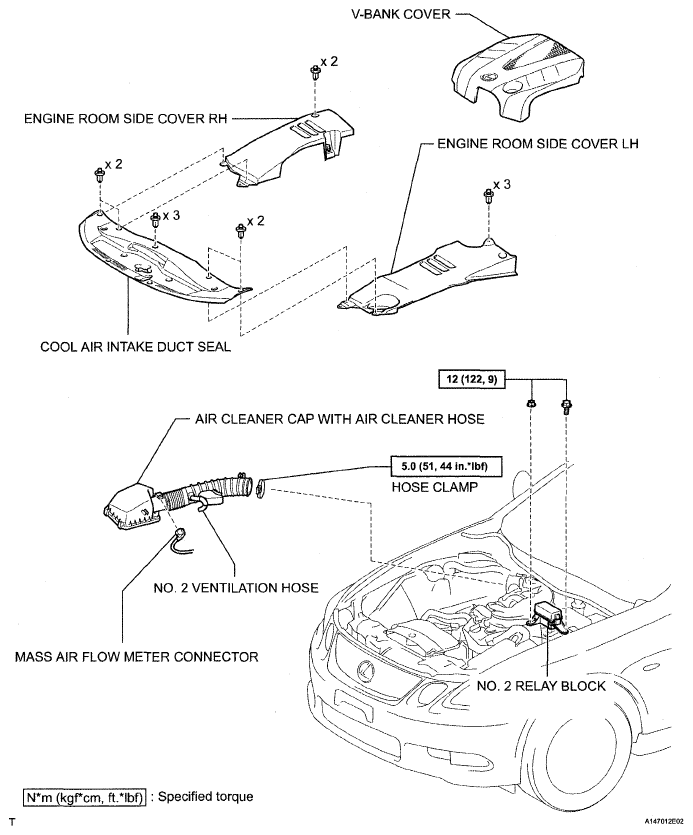

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (1 Of 5)
G05287276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

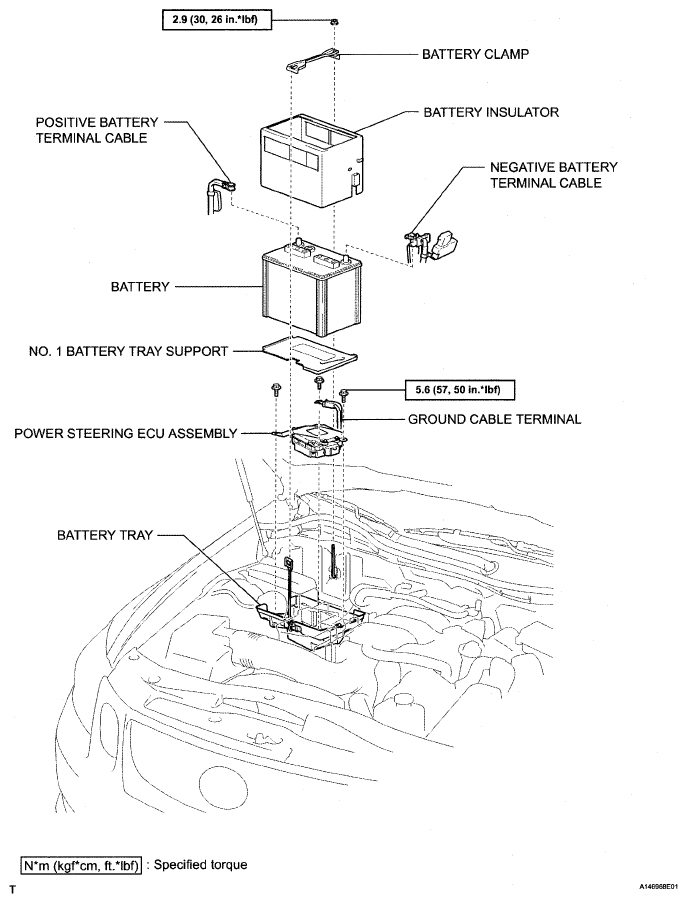

Fig 2: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (2 Of 5)
G05287277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

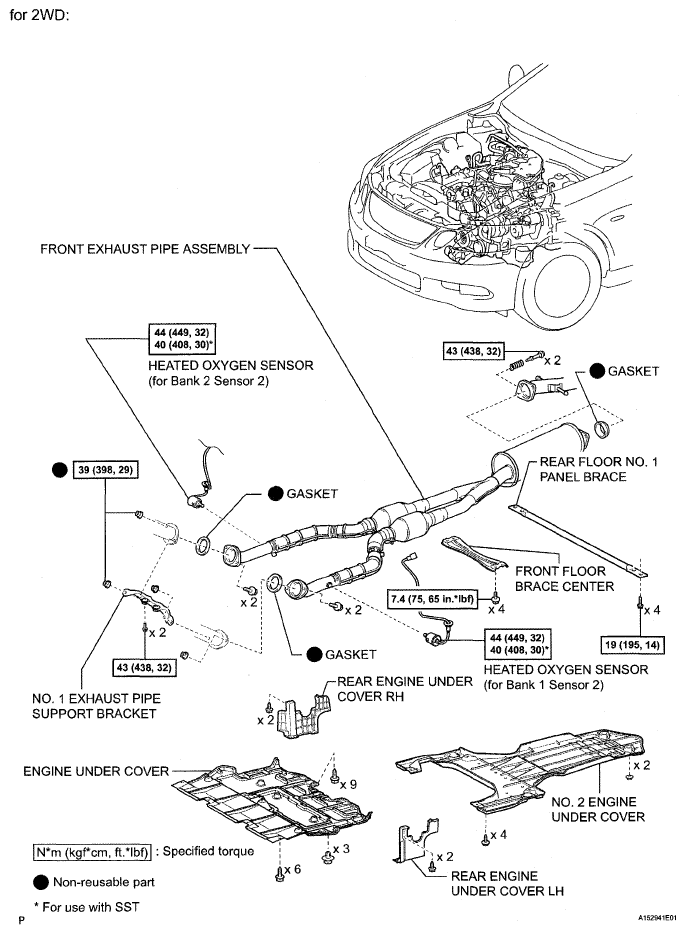

Fig 3: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (3 Of 5)
G05287278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

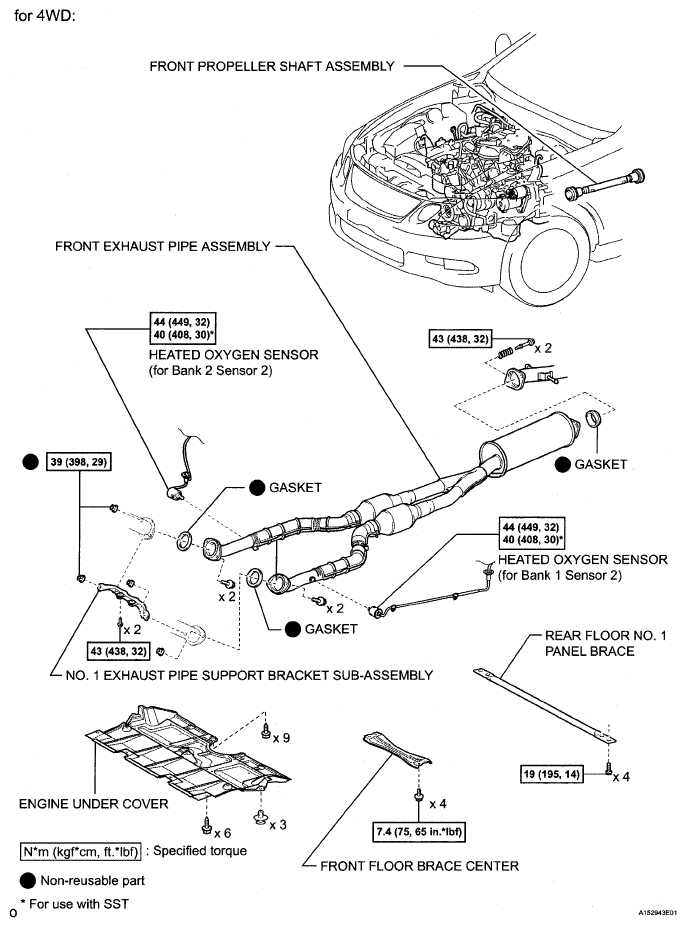

Fig 4: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (4 Of 5)
G05287279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

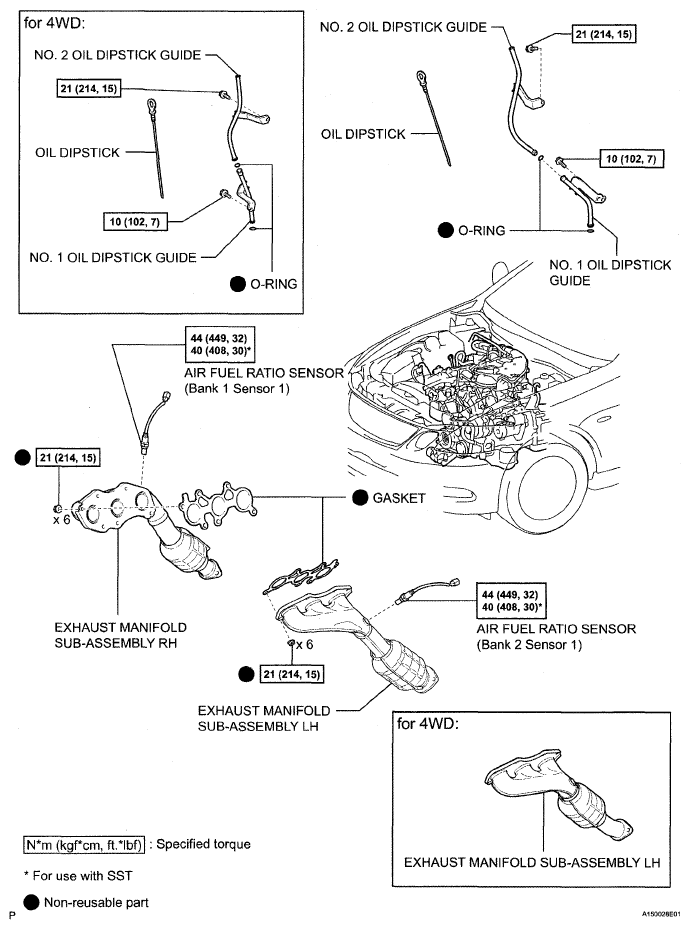

Fig 5: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (5 Of 5)
G05287280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
