Rear Brake Pad, Brake Caliper & Brake Rotor: Installation

1. Install 2 new No. 1 caliper plates to the caliper support bracket.
2. Install the rear disc brake cylinder together with the caliper support bracket with the 2 bolts.

   Torque: 54 N*m (551 kgf*cm, 40 ft.*lbf)

Fig 1: Locating Cylinder Assembly Rear Together With Caliper Support Bracket With Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the rear disc brake cylinder with the cylinder slide pin.

   Torque: 25 N*m (250 kgf*cm, 18 ft.*lbf)

Fig 2: Locating Cylinder Assembly Rear With Cylinder Slide Pin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply disc brake grease to both sides of the 2 anti-squeal shims.
2. Install the 2 anti-squeal shims to each brake pad.
   NOTE:

   • When replacing worn pads, the anti-squeal shims must be replaced together with the pads.
   • Install the anti-squeal shims in the correct positions and directions.

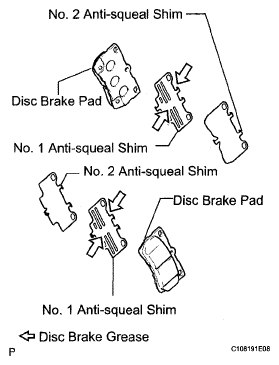

Fig 3: Identifying Rear Disc Brake Anti-Squeal Shim Kit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the 2 brake pads to the rear disc brake cylinder.
2. Install the 2 pad guide pins, anti-squeal spring and pin hold clip as shown in the illustration.
   NOTE: Make sure that the engaged parts of the anti-squeal spring are installed correctly.

Fig 4: Identifying Brake Pads To Cylinder Assembly Rear

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the flexible hose with the union bolt and a new gasket.

   Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

   NOTE: Install the flexible hose lock securely in the lock hole in the rear disc brake cylinder.

Fig 5: Locating Flexible Hose With Union Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check and clear the DTC (see DTC CHECK / CLEAR ).

1. Check and clear the DTC (see DTC CHECK / CLEAR ).

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
