Rear Brake Pad, Brake Caliper & Brake Rotor: Components

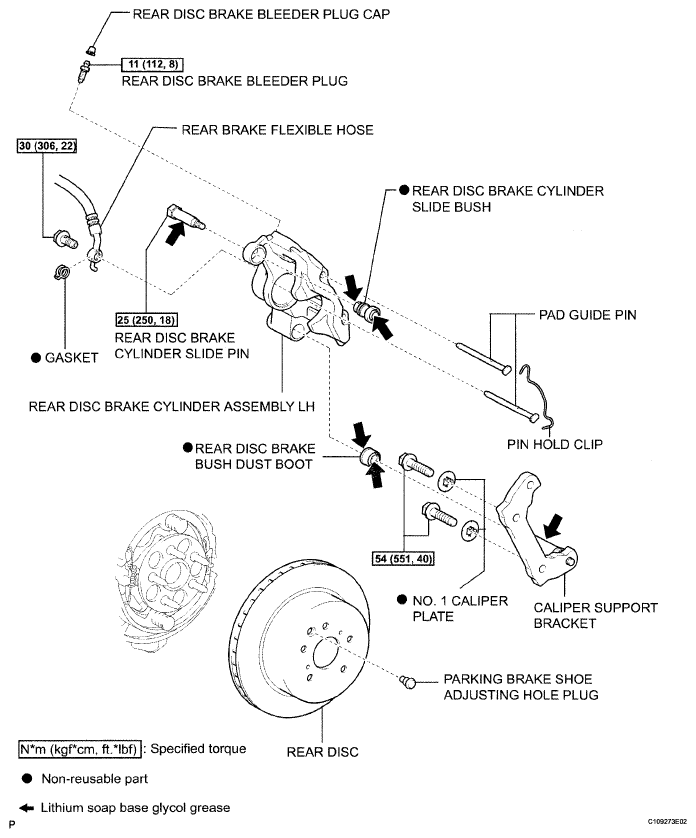

Fig 1: Rear Brake Replacement Components With Torque Specifications (1 Of 2)
G05297309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

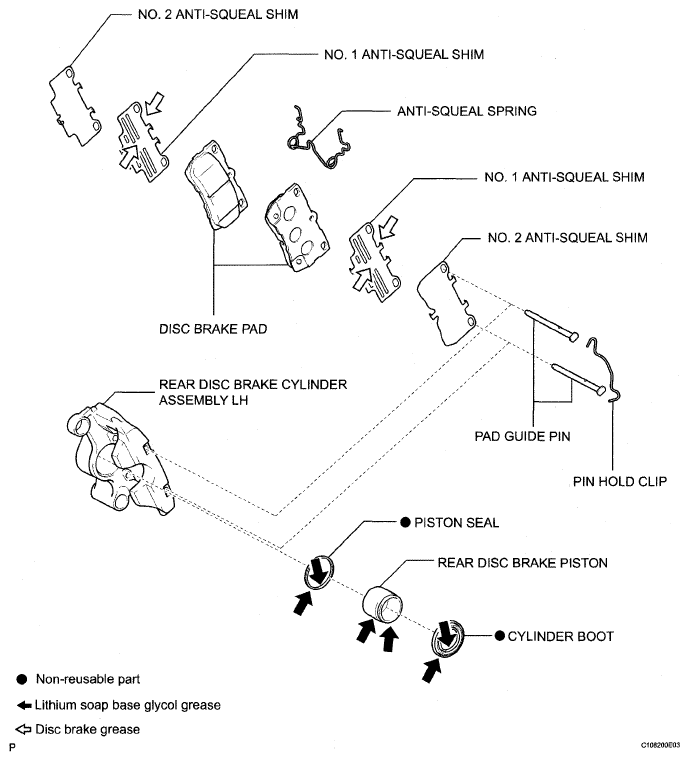

Fig 2: Identifying Rear Brake Components (2 Of 2)
G05297310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
