Rear Brake Flexible Hose: Components

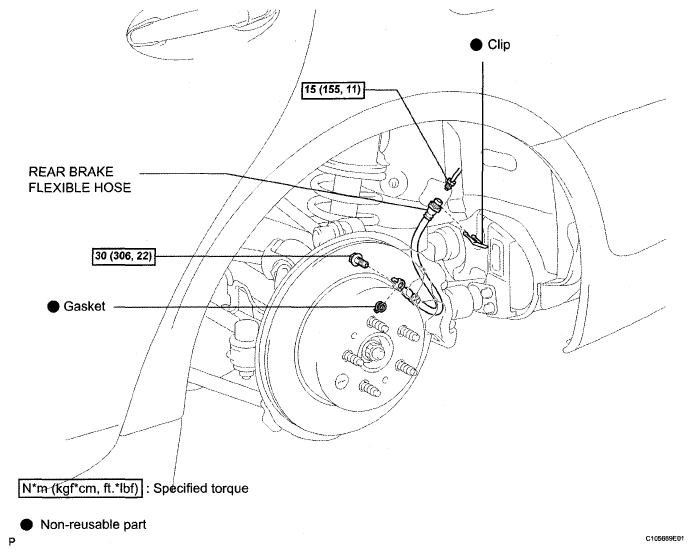

Fig 1: Exploded View Of Rear Brake Flexible Hose With Torque Specifications

G05297331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
