Front Brake Flexible Hose: Installation

INSTALL FRONT BRAKE FLEXIBLE HOSE
1. Connect the front brake flexible hose with the union bolt and a new gasket.
  Torque: 2GR-FSE

  30 N*m (306 kgf*cm, 22 ft.*lbf)

  3UZ-FE

  39 N*m (400 kgf*cm, 29 ft.*lbf)

  NOTE: Install the flexible hose lock securely in the lock hole in the disc brake cylinder assembly front
2. Connect the brake tube to front brake flexible hose with a SST while holding flexible hose with a wrench.
  SST 09023-00101

  Torque: 15 N*m (155 kgf*cm, 11 ft*lbf)
  NOTE:
  - Do not bend or damage the brake tube
  - Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting points.

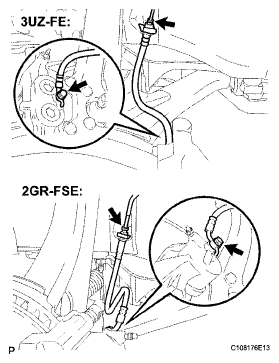

  Fig 1: Locating Front Brake Flexible Hose With Union Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the front brake flexible hose with a new clip.
  NOTE:
  - When installing the front brake flexible hose, face the identification mark to the outside of the vehicle and minimize twisting of the hose.
  - Install the clip as it will go.
  - Pay attention to the color of the identification mark (RH: white/white, LH: white/blue) because the front brake flexible hose is different between right and left (4WD vehicle).
DISABLE BRAKE CONTROL (for 3UZ-FE) (See BRAKE FLUID (FOR 3UZ-FE) )
ADD RESERVOIR WITH BRAKE FLUID (for 2GR-FSE) (See BRAKE FLUID (FOR 2GR-FSE) )
ADD RESERVOIR WITH BRAKE FLUID (for 3UZ-FE) (See BRAKE FLUID (FOR 3UZ-FE) )
BLEED BRAKE LINE (for 2GR-FSE) (See BLEEDING )
BLEED FRONT BRAKE SYSTEMS (for 3UZ-FE) (See BRAKE FLUID (FOR 3UZ-FE) )
BLEED REAR BRAKE SYSTEM (for 3UZ-FE) (See BRAKE FLUID (FOR 3UZ-FE) )
INSPECT FLUID LEVEL IN RESERVOIR (for 2GR-FSE) (See ON-VEHICLE INSPECTION )
CHECK BRAKE FLUID LEVEL (for 3UZ-FE) (See BRAKE FLUID (FOR 3UZ-FE) )
CHECK AND CLEAR DTC (for 2GR-FSE)
(See DTC CHECK / CLEAR )
CHECK AND CLEAR DTC (for 3UZ-FE)
(See DTC CHECK / CLEAR )
INSPECT BRAKE FLUID LEAKAGE
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
