System Diagram

HINT:

See the layout drawing to confirm the locations and tightening torque of flexible hoses and brake tubes.

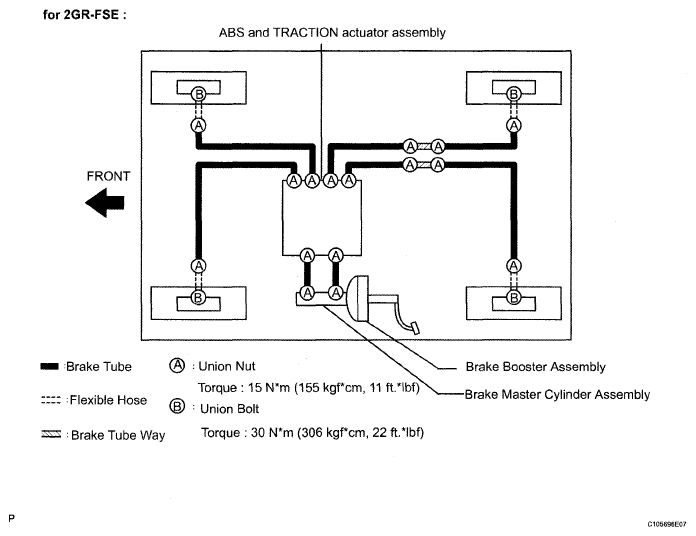

Fig 1: ABS And TRACTION Actuator Assembly (For 2GR-FSE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

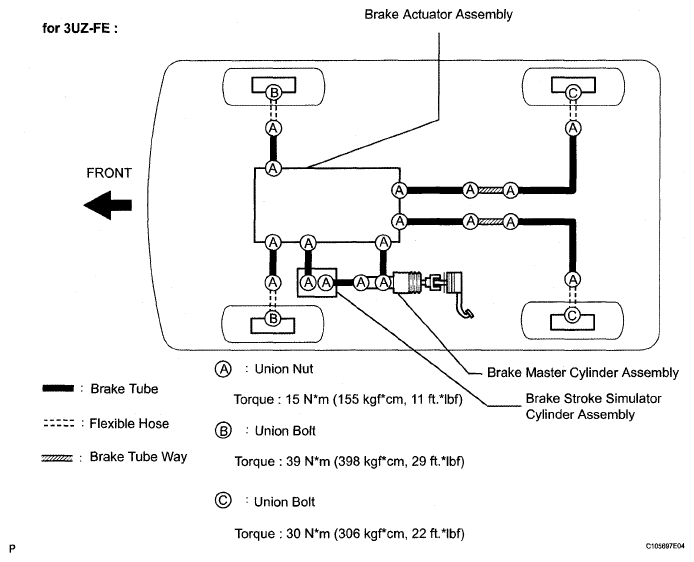

Fig 2: ABS And TRACTION Actuator Assembly (For 3UZ-FE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
