Brake Pedal: Components

Fig 1: Exploded View Of Brake Pedal Components With Torque Specifications (1 Of 3)
G05297194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

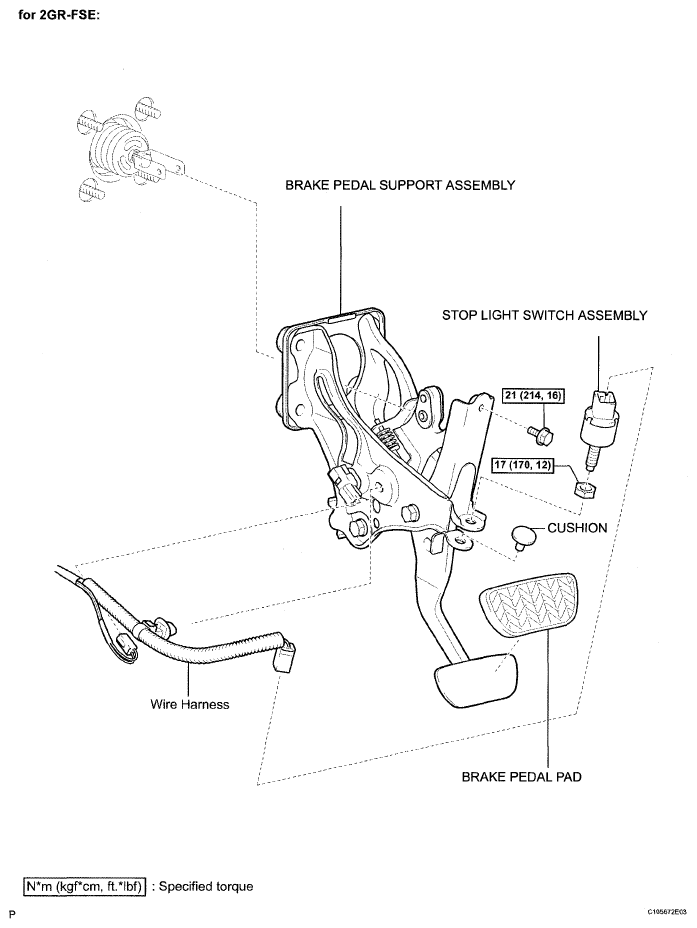

Fig 2: Exploded View Of Brake Pedal Components With Torque Specifications (2 Of 3)
G05297232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

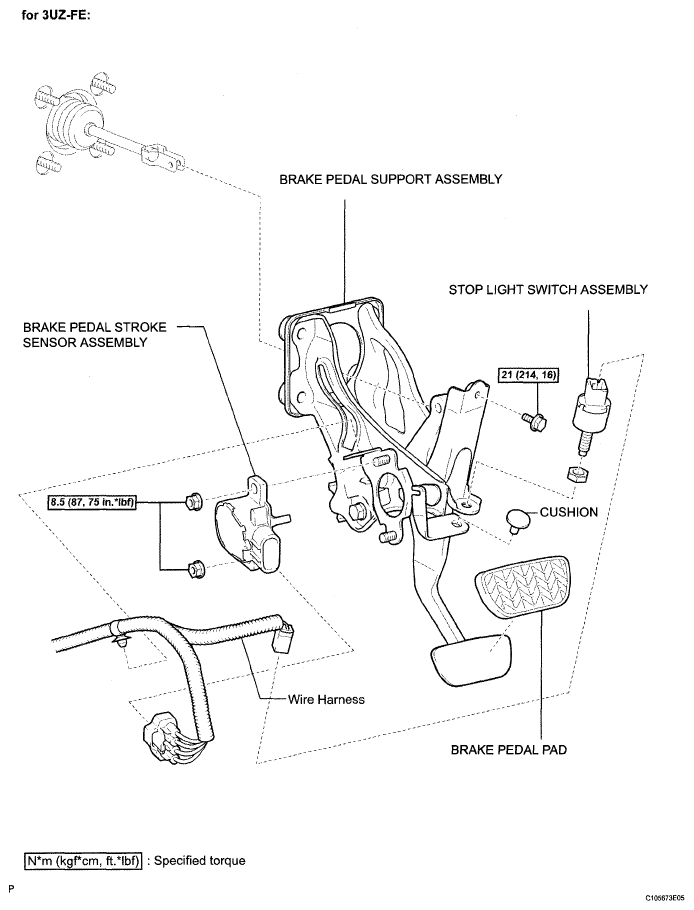

Fig 3: Exploded View Of Brake Pedal Components With Torque Specifications (3 Of 3)
G05297233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
