Brake Booster: Components

Fig 1: Brake Booster Components With Torque Specifications (1 Of 2)
G05297276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

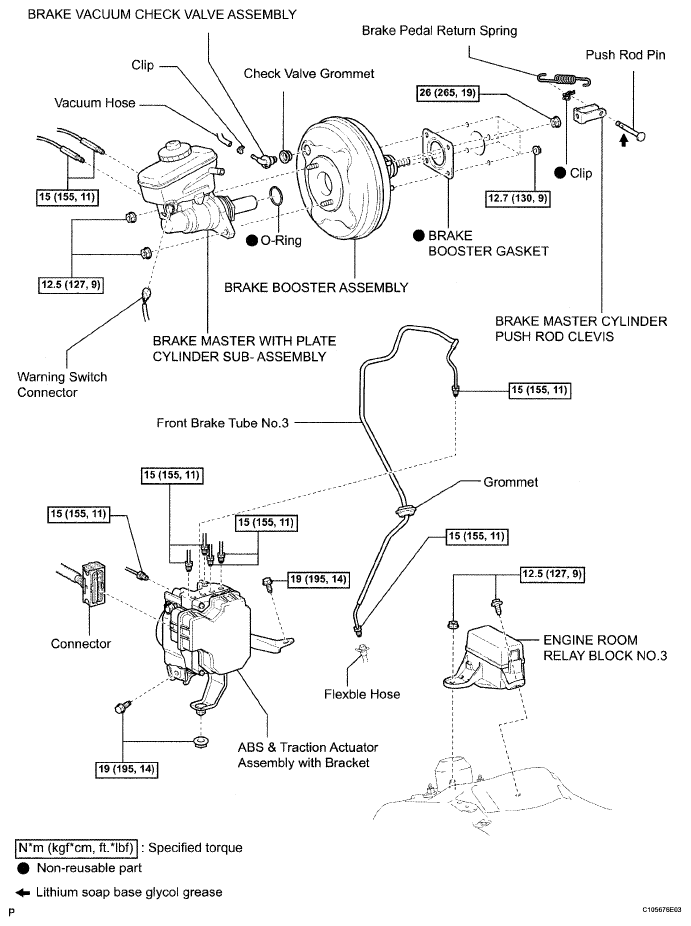

Fig 2: Brake Booster Components With Torque Specifications (2 Of 2)
G05297277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
