BRAKE MASTER CYLINDER (for 2GR-FSE): Components

Fig 1: Brake Master Cylinder (For 2GR-FSE) Replacement Components With Torque Specifications (1 Of 2)
G05297249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

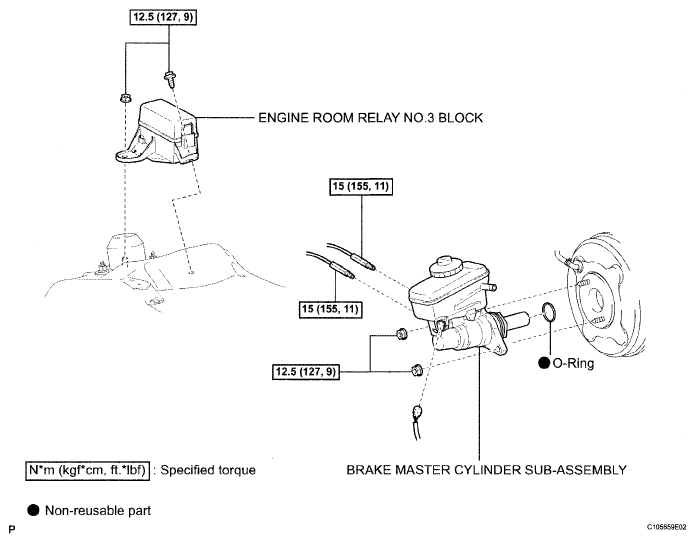

Fig 2: Brake Master Cylinder (For 2GR-FSE) Replacement Components With Torque Specifications (2 Of 2)
G05297250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
