DTC P0351, P0352, P0353, P0354, P0355, P0356: Ignition Coil "A" Primary/Secondary Circuit; Ignition Coil "B" Primary/Secondary Circuit; Ignition Coil "C" Primary/Secondary Circuit; Ignition Coil "D" Primary/Secondary Circuit; Ignition Coil "E" Primary/Secondary Circuit; Ignition Coil "F" Primary/Secondary Circuit: Wiring Diagram

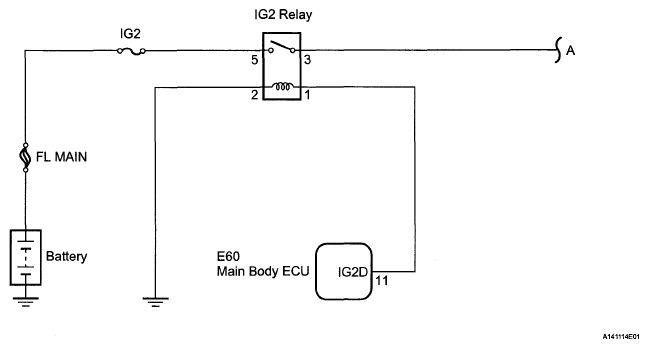

Fig 1: Identifying Ignition Coil Primary/Secondary Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

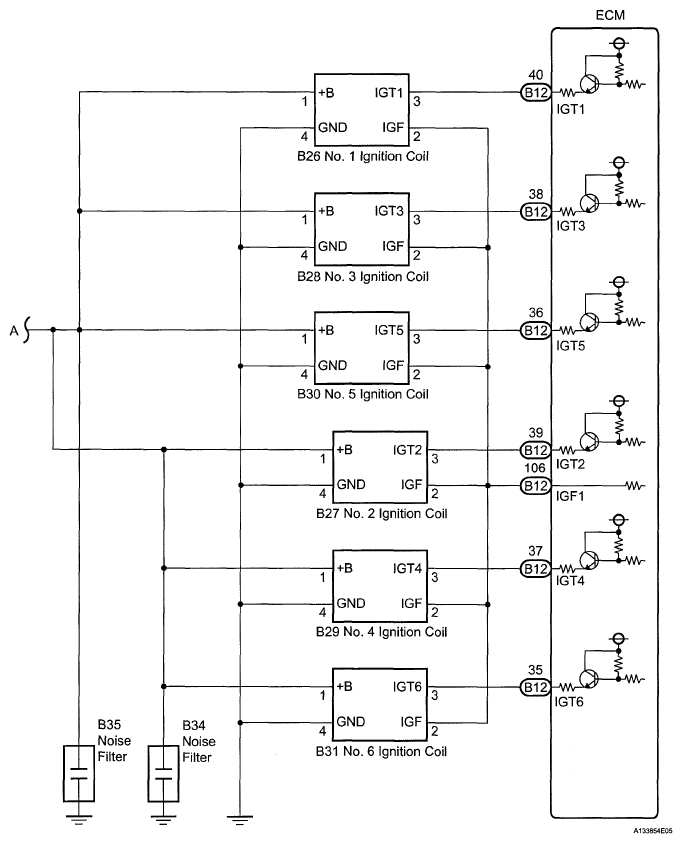

Fig 2: Identifying Ignition Coil Primary/Secondary Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
