Front Wiper Motor: Installation

1. Install the windshield wiper motor assembly with the 3 bolts.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

   Fig 1: Identifying Windshield Wiper Motor Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply MP grease to the crank arm pivot of the windshield wiper motor assembly.
   Fig 2: Applying MP Grease To Crank Arm Pivot Of Windshield Wiper Motor Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the No. 2 windshield wiper link rod to the pivot of the windshield wiper motor assembly.
   Fig 3: Identifying No. 2 Windshield Wiper Link Rod To Pivot Of Windshield Wiper Motor Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the windshield wiper motor and link assembly with the 4 bolts.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

2. Connect the connector.

Fig 4: Identifying Windshield Wiper Motor And Link Assembly Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

In cases where double-sided tape cannot be reused.

1. Apply double-sided tape to locations as shown in the illustration.

   HINT:

   The double-sided tape is not available as a supply part. Use commercial high-heat resistant double-sided tape.

   Fig 5: Identifying Area For Applying Double-Sided Tape

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Fix the double-sided tape to install the front fender to cowl side seal RH.

Fig 6: Fixing Double-Sided Tape To Install Front Fender To Cowl Side Seal Rh

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

In cases where double-sided tape cannot be reused.

1. Apply new double-sided tape to locations as shown in the illustration.

   HINT:

   The double-sided tape is not available as a supply part. Use commercial high-heat resistant double-sided tape.

   Fig 7: Identifying Area For Applying Double-Sided Tape

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Fix the double-sided tape to install the front fender to cowl side seal LH.
   Fig 8: Fixing Double-Sided Tape To Install Front Fender To Cowl Side Seal LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 6 claws and install the cowl top ventilator louver sub-assembly as shown in the illustration.
   NOTE: When Installing the cowl top ventilator louver sub-assembly, hold the front fender to cowl side seals by hand to prevent them from coming off the windshield. The front fender to cowl side seals are attached to the windshield with double-sided tape. Once the front fender to cowl side seals come off, the adhesion of the tape is reduced. The double-sided tape is not available as a supply part. If the tape loses its adhesion, it is necessary to apply new high-heat resistant double-sided tape and install the front fender to cowl side seals to the windshield.
   Fig 9: Installing Cowl Top Ventilator Louver Sub-Assembly Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 clips.
3. Engage the 2 clips and install the hood to cowl top seal.

Fig 10: Identifying Hood To Cowl Top Seal Clips

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Operate the wiper and stop the windshield wiper motor at the automatic stop position.
2. Clean the wiper arm serrations.
3. When reinstalling:
   1. Clean the wiper pivot serrations with a wire brush.
      Fig 11: Cleaning Wiper Pivot Serrations With Wire Brush

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the front wiper arm and blade assembly LH with the nut to the position shown in the illustration.

   Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf)

   HINT:

   Hold the arm hinge by hand to fasten the nut.

   AREA MEASUREMENT CHART



   Area	Measurement
   A	18 to 33 mm (0.71 to 1.30 in.)

   Fig 12: Identifying Ceramic Latch And Louver Clip

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Operate the wiper and stop the windshield wiper motor at the automatic stop position.
2. Clean the wiper arm serrations.
3. When reinstalling:
   1. Clean the wiper pivot serrations with a wire brush.
      Fig 13: Cleaning Wiper Pivot Serrations With Wire Brush

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the front wiper arm and blade assembly RH with the nut to the position shown in the illustration.

   Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf)

   HINT:

   Hold the arm hinge by hand to fasten the nut.

   AREA MEASUREMENT CHART



   Area	Measurement
   B	20 to 35 mm (0.79 to 1.38 in.)

   Fig 14: Identifying Ceramic Latch And Louver Clip

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Operate the front wipers while spraying washer fluid on the windshield glass. Make sure that the front wipers function properly and the wipers do not come into contact with the vehicle body.

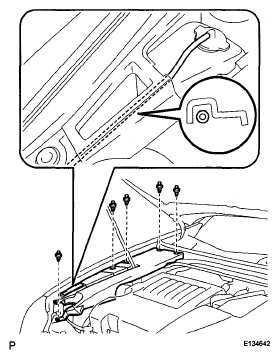

1. Install the engine room side cover RH with the 5 clips.
   NOTE: When installing the engine room side cover RH, make sure that the engine coolant reservoir hose is positioned as shown in the illustration.
   Fig 15: Identifying Engine Room Side Cover RH With Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the engine room side cover LH with the 6 clips.
   Fig 16: Identifying Engine Room Side Cover LH With Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 4 claws and install the hood hinge cover.
   Fig 17: Identifying Hood Hinge Cover Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 4 claws and install the hood hinge cover.

Fig 18: Identifying Hood Hinge Cover Claws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
