Heated Oxygen Sensor: Removal

REMOVE OXYGEN SENSOR (for Bank 1)
1. Disconnect the oxygen sensor connector and clamp.

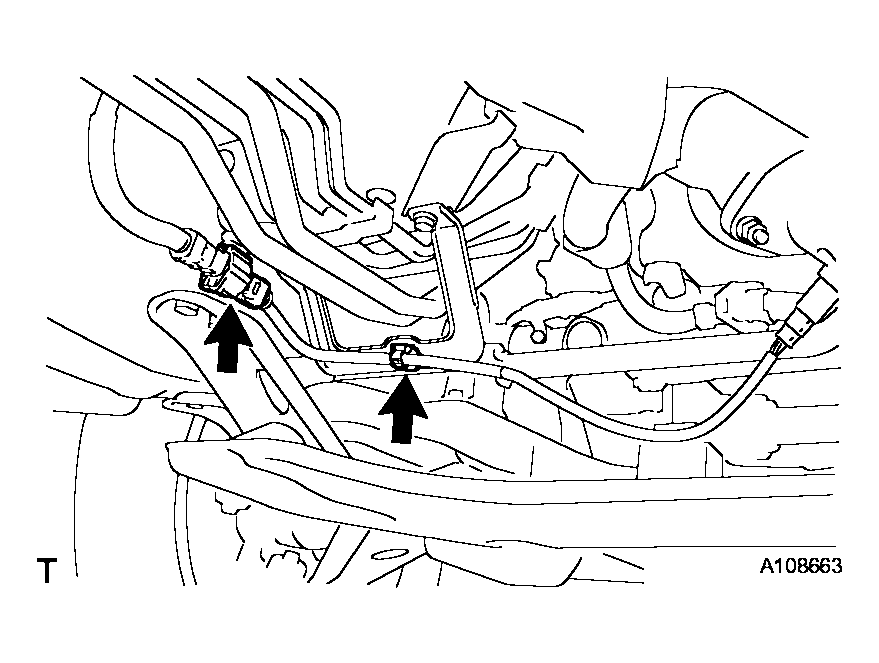

  Fig 1: Identifying Oxygen Sensor Connector And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the oxygen sensor from the exhaust pipe assembly front No.3.
  SST 09224-00010

  NOTE: Do not damage the oxygen sensor.

  Fig 2: Removing Oxygen Sensor From Exhaust Pipe Assembly Front No. 3 (For Bank 1)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OXYGEN SENSOR (for Bank 2)
1. Disconnect the oxygen sensor connector.

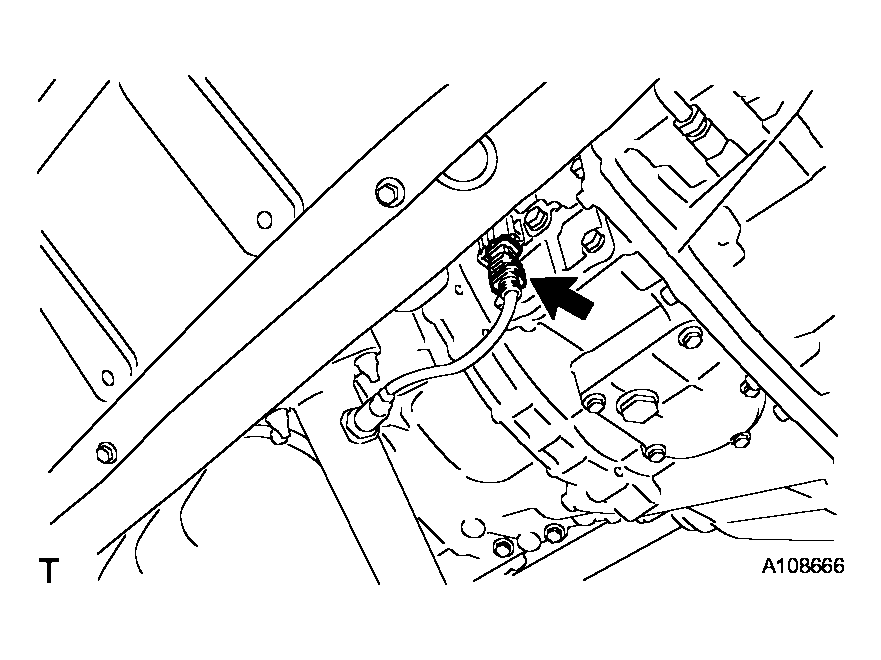

  Fig 3: Identifying Oxygen Sensor Connector (For Bank 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the oxygen sensor from the exhaust pipe assembly front.
  SST 09224-00010

  NOTE: Do not damage the oxygen sensor.

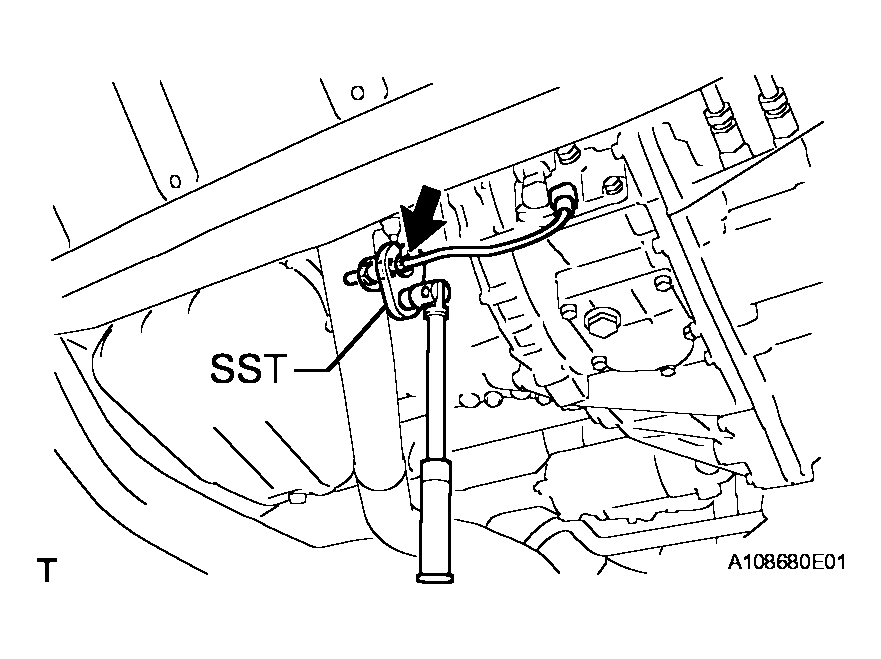

  Fig 4: Removing Oxygen Sensor From Exhaust Pipe Assembly Front
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
