Rear Brake Pad, Brake Caliper & Brake Rotor: Removal

  1. REMOVE REAR WHEEL
  2. DRAIN BRAKE FLUID
  3. DISCONNECT REAR FLEXIBLE HOSE
    1. Remove the union bolt and the gasket from the rear disc brake cylinder assembly, then disconnect the flexible hose.
  4. REMOVE REAR DISC BRAKE CYLINDER SLIDE PIN NO. 2
    1. Remove the rear disc brake cylinder slide pin No. 2.
  5. REMOVE REAR DISC BRAKE CYLINDER SLIDE PIN NO. 1
    1. Remove the rear disc brake cylinder slide pin No. 1.

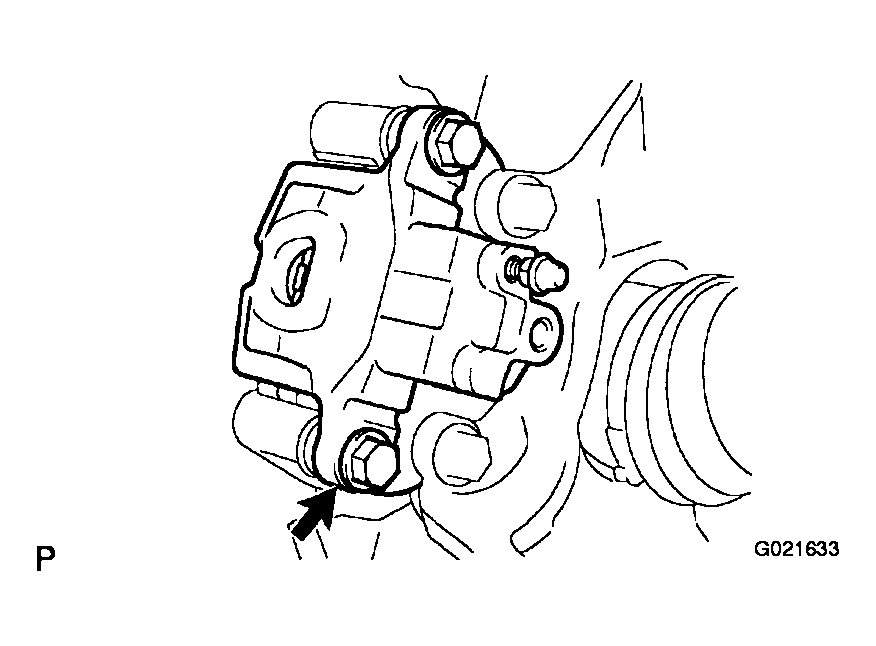

      Fig 1: Identifying Rear Disc Brake Cylinder Slide Pin No. 2 And Slide Pin No. 1
      G04113439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR DISC BRAKE CYLINDER ASSEMBLY
    1. Remove the rear disc brake cylinder assembly.

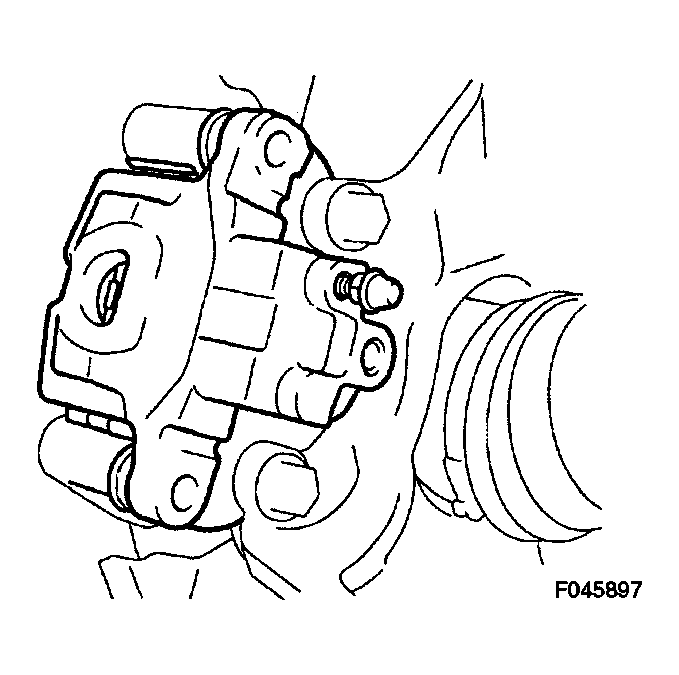

      Fig 2: Identifying Rear Disc Brake Cylinder Assembly
      G04113440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
