Rear Brake Pad, Brake Caliper & Brake Rotor: Components

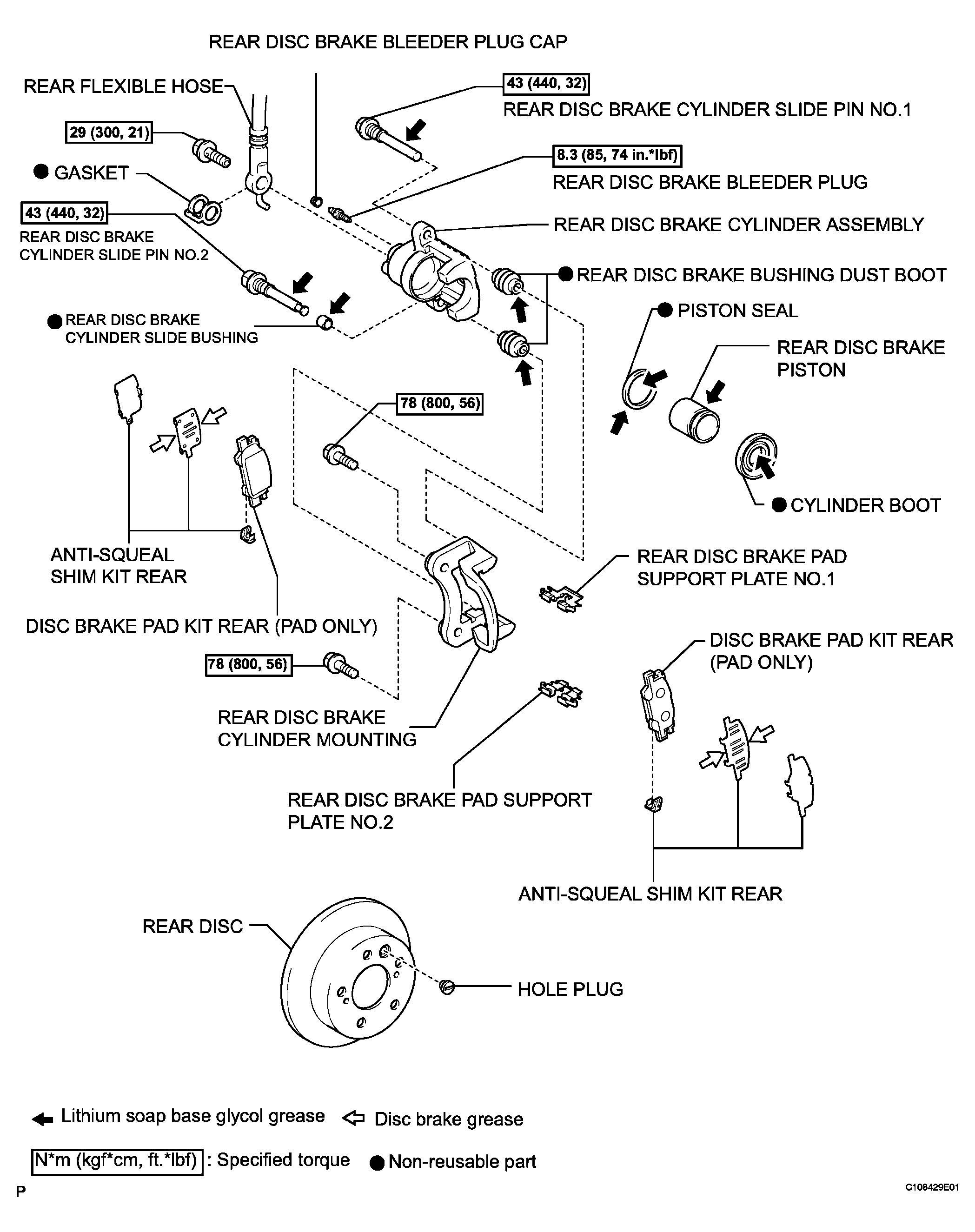

Fig 1: Exploded View Of Rear Brake With Torque Specifications

G04113438

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
