Rear Brake Flexible Hose: Removal

  1. DRAIN BRAKE FLUID
  2. REMOVE REAR WHEEL
  3. REMOVE REAR BRAKE FLEXIBLE HOSE
    1. Remove the union bolt, the rear brake flexible hose and gasket.

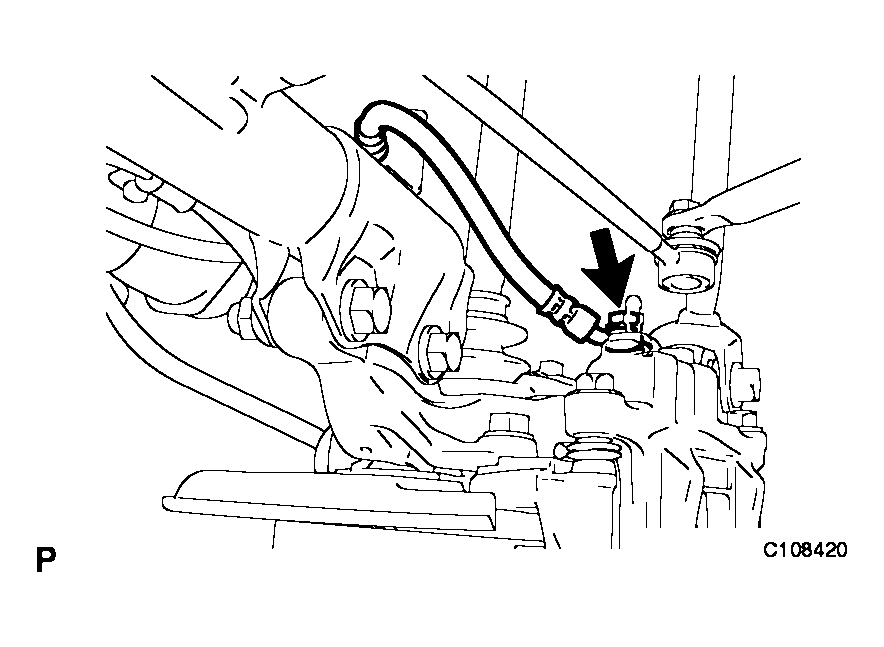

      Fig 1: Identifying Union Bolt
      G04113465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, and separate the rear brake flexible hose.
    3. Remove the clip.
    4. Remove the brake tube with SST while holding the rear brake flexible hose with a wrench.

      SST 09023-00101

      NOTE:
      • Do not bend or damage the brake tube.
      • Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting points.

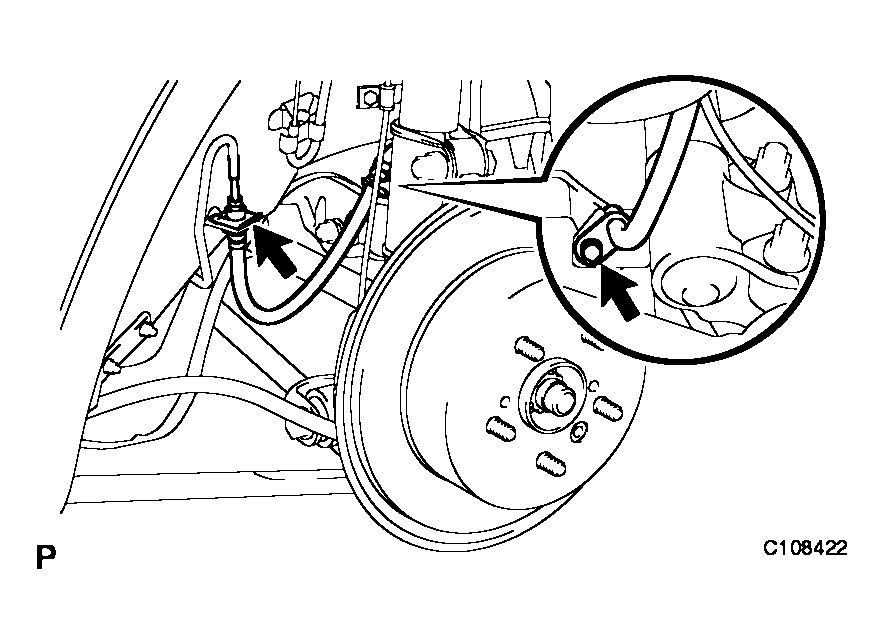

      Fig 2: Identifying Rear Brake Flexible Hose
      G04113466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
