Rear Brake Flexible Hose: Components

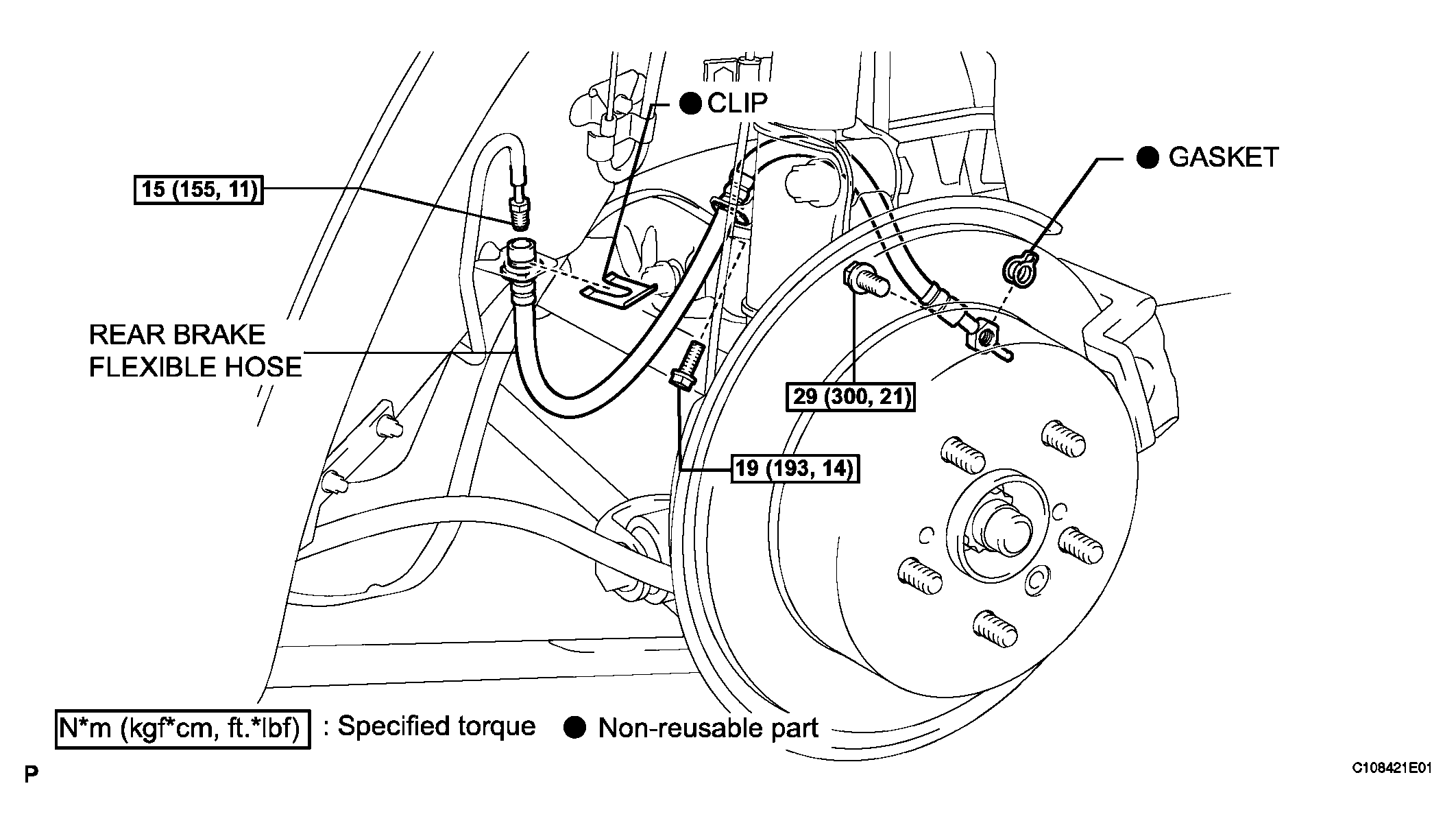

Fig 1: Rear Brake Flexible Hose With Torque Specifications

G04113464

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
