Front Brake Pad, Brake Caliper & Brake Rotor: Removal

  1. REMOVE FRONT WHEEL
  2. DRAIN BRAKE FLUID
    NOTE: If brake fluid leaks onto any painted surface of the vehicle, wash or otherwise remove it completely.
  3. REMOVE DISC BRAKE CYLINDER ASSEMBLY
    1. Remove the union bolt and gasket from the disc brake cylinder assembly, then disconnect the flexible hose.
    2. Hold the front disc brake cylinder slide pin No. 1, slide pin No. 2 and remove the 2 bolts and disc brake cylinder assembly.

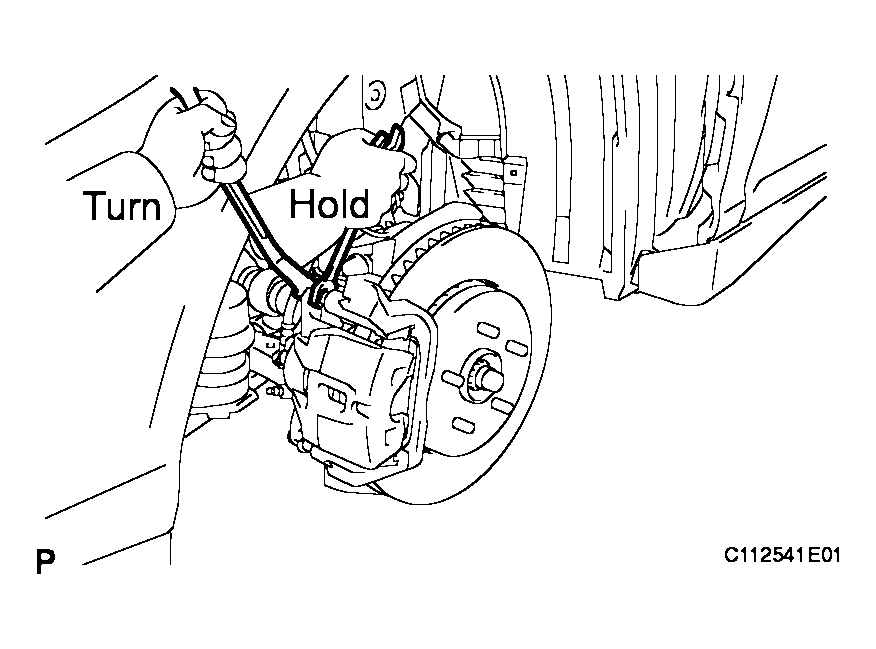

      Fig 1: Removing Disc Brake Cylinder Assembly
      G04113414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
