Front Brake Pad, Brake Caliper & Brake Rotor: Installation

INSTALL DISC BRAKE CYLINDER ASSEMBLY
1. Install the disc brake cylinder assembly with the 2 bolts.
  Torque: 34 N*m (350 kgf*cm, 25 ft.*lbf)
2. Connect the flexible hose with the union bolt and a new gasket.
  Torque: 29 N*m (300 kgf*cm, 21 ft.*lbf)

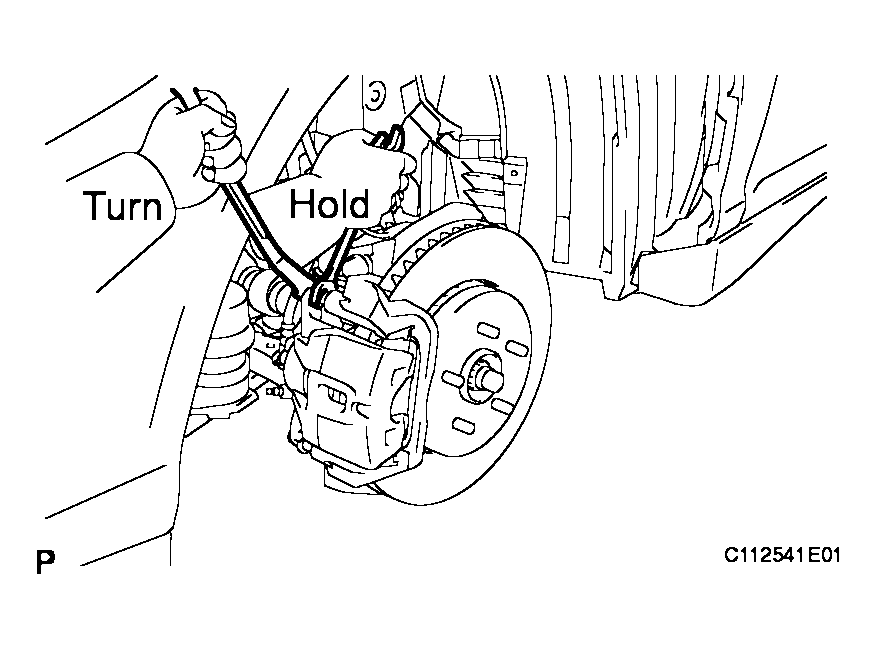

Fig 1: Installing Disc Brake Cylinder Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADD RESERVOIR WITH BRAKE FLUID (See BLEEDING )
DISABLE BRAKE CONTROL (ECB) (See BLEEDING )
BLEED FRONT BRAKE SYSTEM (See BLEEDING )
CANCEL BRAKE CONTROL (ECB) DISABLE (See BLEEDING )
CLEAR DTC
(See DTC CHECK / CLEAR )
PERFORM ACCUMULATOR ZERO DOWN (See BLEEDING )
CHECK BRAKE FLUID LEVEL (See BLEEDING )
CHECK BRAKE FLUID LEAKAGE
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
CLEAR DTC
(See DTC CHECK / CLEAR )
