Front Brake Pad, Brake Caliper & Brake Rotor: Disassembly

REMOVE DISC BRAKE PAD KIT FRONT (PAD ONLY)
1. Remove the 2 brake pads from the front disc brake cylinder mounting.
REMOVE ANTI SQUEAL SHIM KIT FRONT
1. Remove the 2 anti-squeal shims and the pad wear indicator plate from each pad.
REMOVE FRONT DISC BRAKE PAD SUPPORT PLATE NO. 1
REMOVE FRONT DISC BRAKE PAD SUPPORT PLATE NO. 2
REMOVE FRONT DISC BRAKE CYLINDER SLIDE PIN NO. 1
1. Remove the cylinder slide pin No. 1 from the front disc brake cylinder mounting.
REMOVE FRONT DISC BRAKE CYLINDER SLIDE PIN NO. 2
1. Remove the cylinder slide pin No. 2 from the front disc brake cylinder mounting.

  Fig 1: Identifying Slide Pin No. 1 And Slide Pin No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DISC BRAKE CYLINDER SLIDE BUSHING
1. Using a screwdriver, remove the cylinder slide bushing from the front disc brake cylinder slide pin No. 2.
  NOTE: Do not damage the front disc brake cylinder slide pin No. 2.

  HINT:

  Tape the screwdriver tip before use.

  Fig 2: Removing Front Disc Brake Cylinder Slide Bushing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DISC BRAKE BUSHING DUST BOOT
1. Remove the 2 bushing dust boots from the front disc brake cylinder mounting.

  Fig 3: Identifying Front Disc Brake Bushing Dust Boot
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DISC BRAKE CYLINDER MOUNTING
1. Remove the 2 bolts and the front disc brake cylinder mounting.

  Fig 4: Removing Front Disc Brake Cylinder Mounting
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CYLINDER BOOT
1. Using a screwdriver, remove the cylinder boot.
  HINT:

  Tape the screwdriver tip before use.
Fig 5: Removing Cylinder Boot
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DISC BRAKE PISTON
1. Place a shop rag or a piece of cloth between the piston and the disc brake cylinder assembly.
2. Use compressed air to remove the piston from the disc brake cylinder assembly.
  CAUTION: Do not place your fingers in front of the piston when using compressed air.

  NOTE: Do not spatter the brake fluid.

  Fig 6: Removing Front Disc Brake Piston
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

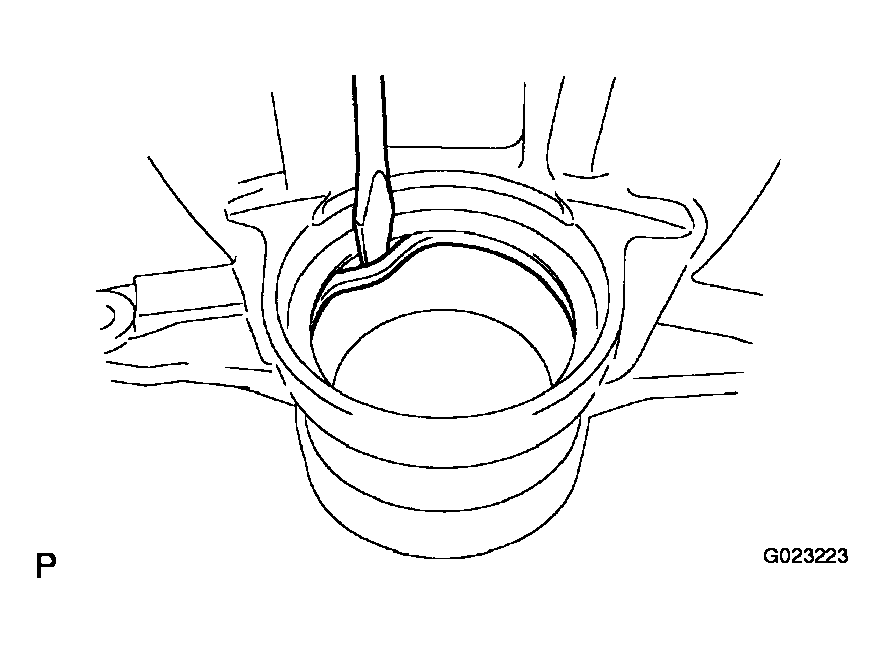

REMOVE PISTON SEAL
1. Using a screwdriver, remove the piston seal from the disc brake cylinder assembly.
  NOTE: Do not damage the inner cylinder or cylinder groove.

  HINT:

  Tape the screwdriver tip before use.

  Fig 7: Removing Piston Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DISC BRAKE BLEEDER PLUG CAP
REMOVE FRONT DISC BRAKE BLEEDER PLUG
REMOVE FRONT DISC
HINT:

Put matchmarks on the disc and the axle hub.

Fig 8: Identifying Front Disc Matchmarks
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
