Front Brake Pad, Brake Caliper & Brake Rotor: Components

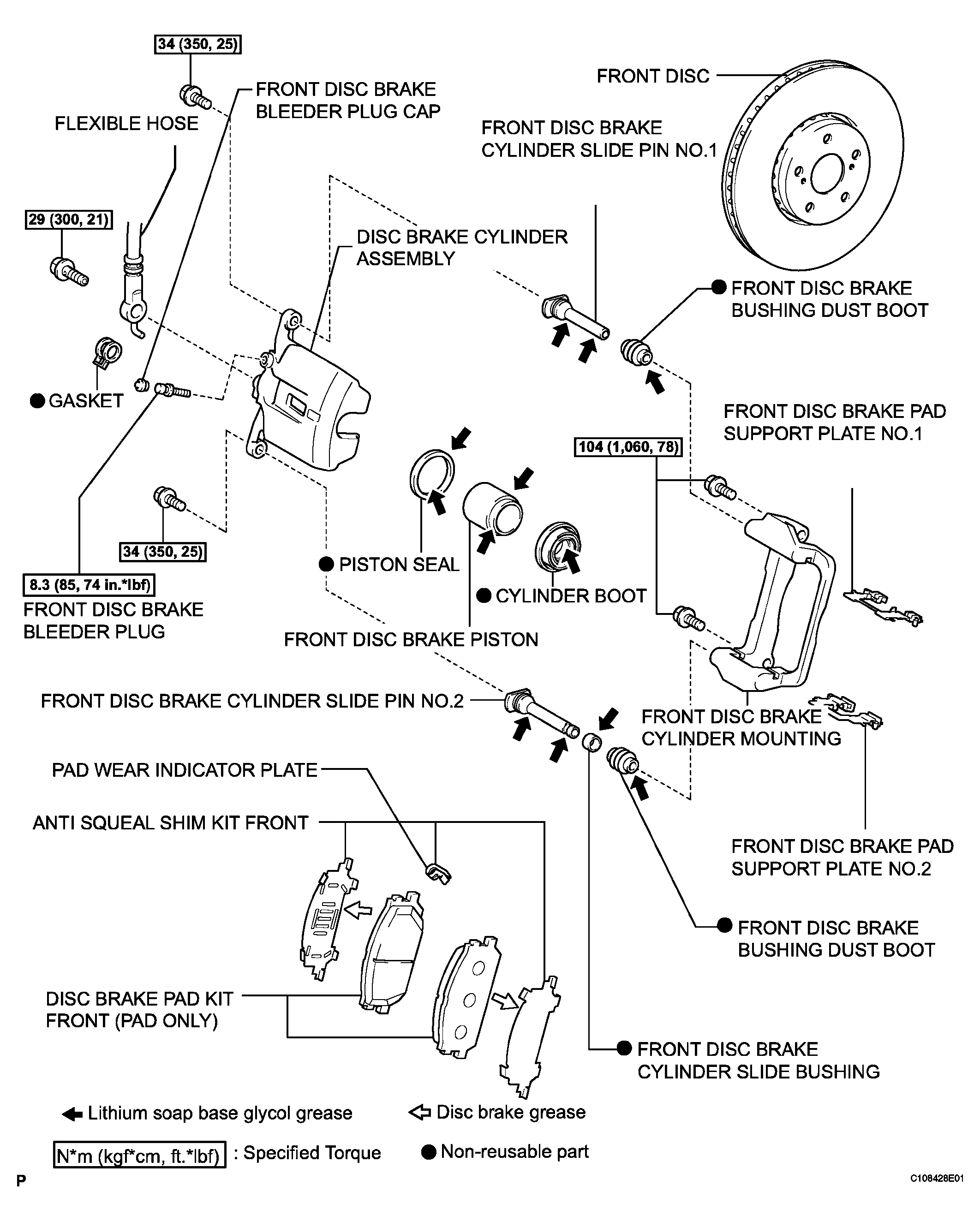

Fig 1: Exploded View Of Front Brake With Torque Specifications

G04113413

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
