Front Brake Flexible Hose: Removal

  1. REMOVE FRONT WHEEL
  2. DRAIN BRAKE FLUID
  3. REMOVE FRONT FLEXIBLE HOSE
    1. Remove the clip.
    2. Remove the brake tube with SST while holding the front brake flexible hose with a wrench.

      SST 09023-00101

      NOTE:
      • Do not bend or damage the brake tube.
      • Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting points.
    3. Remove the bolt, and separate the front brake flexible hose and the speed sensor from the shock absorber.
    4. Remove the union bolt, the front brake flexible hose and gasket.

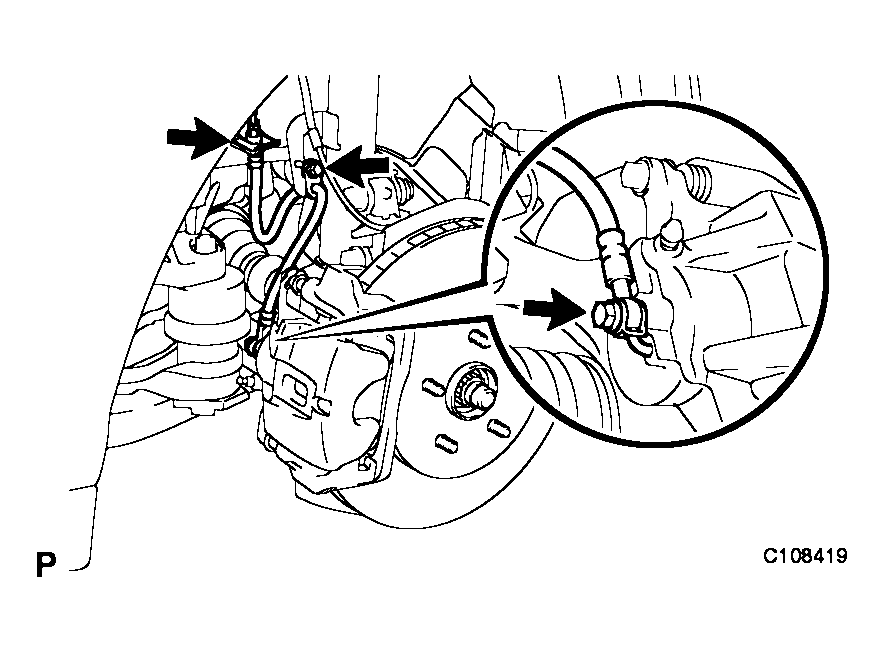

      Fig 1: Identifying Front Brake Flexible Hose
      G04113436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
