System Diagram

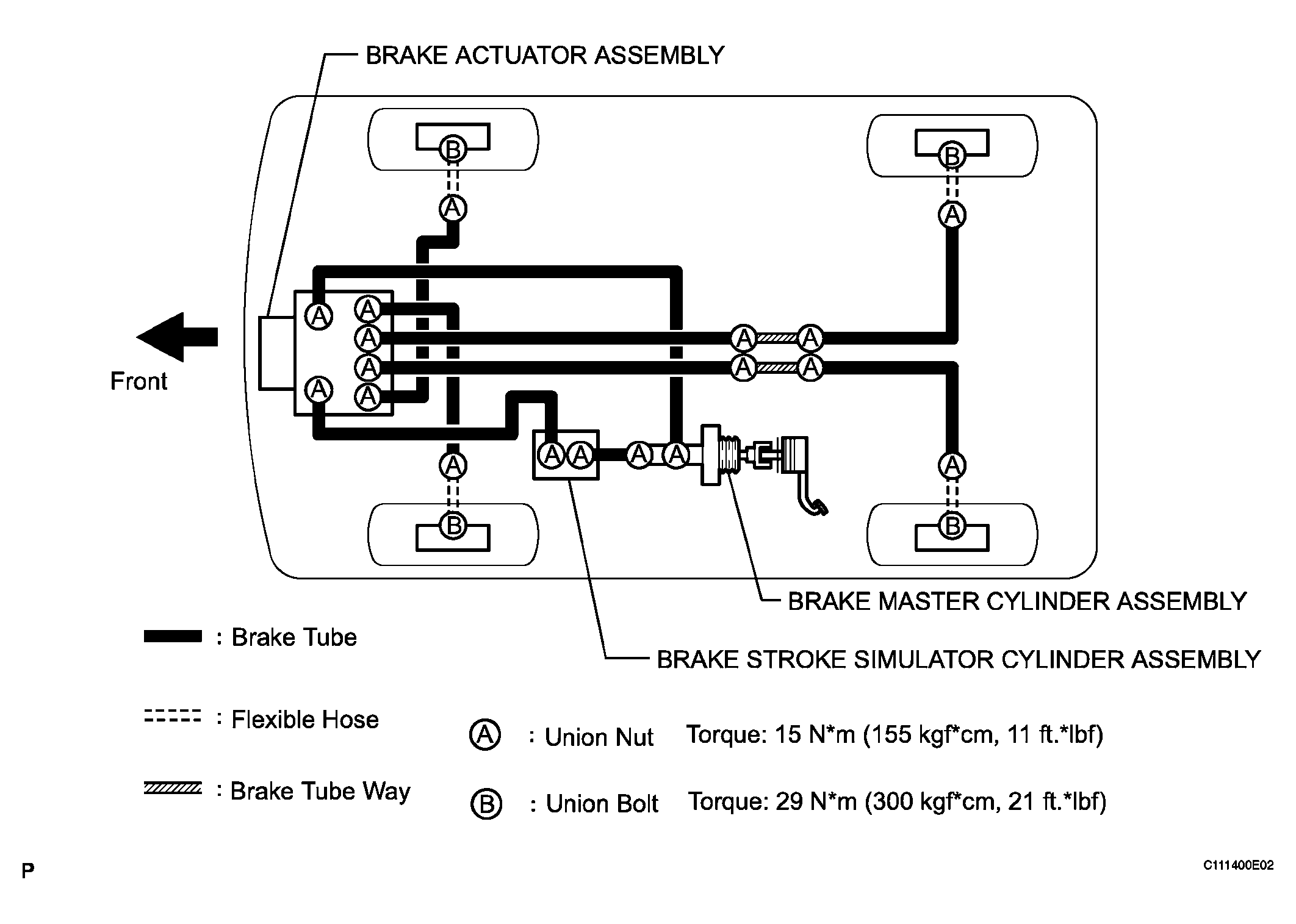

Fig 1: Brake System Diagram

G04113367

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
