Brake Pedal: Components

Fig 1: Removing Brake Pedal Components With Torque Specifications (1 Of 2)
G04113374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

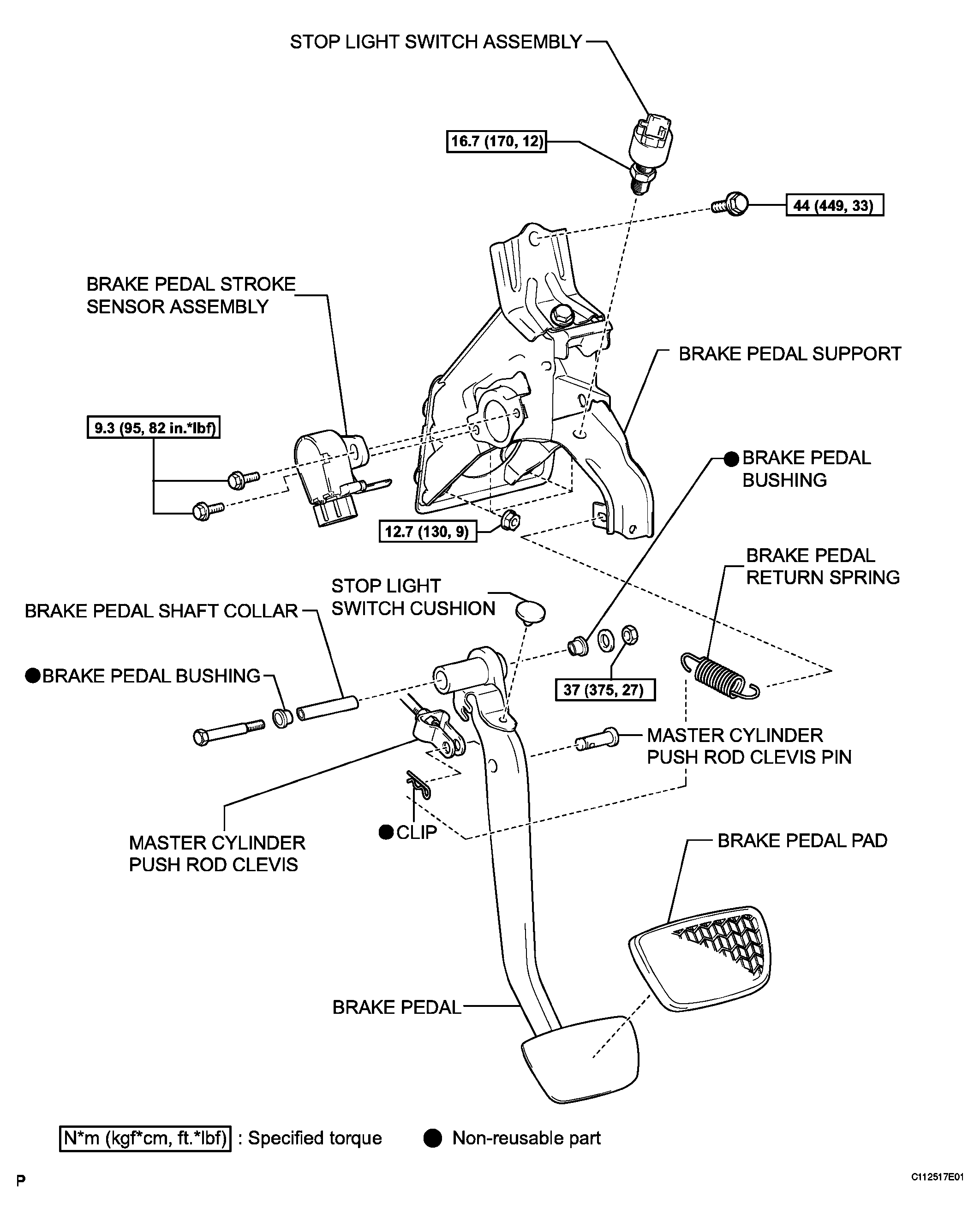

Fig 2: Removing Brake Pedal Components With Torque Specifications (2 Of 2)
G04113375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
