Brake Master Cylinder: Components

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (1 Of 4)
G04113390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

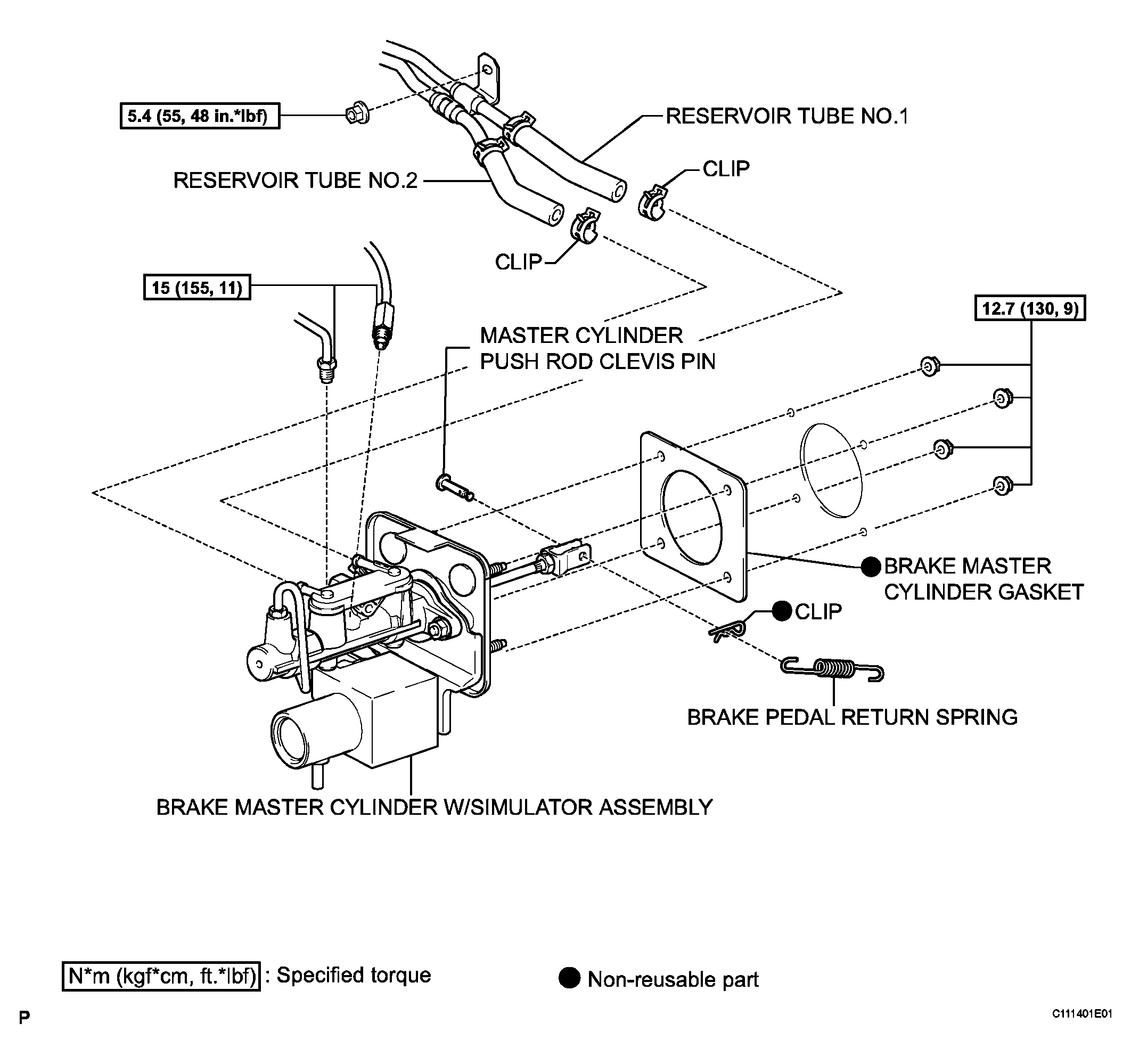

Fig 2: Brake Master Cylinder Replacement Components With Torque Specifications (2 Of 4)
G04113391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

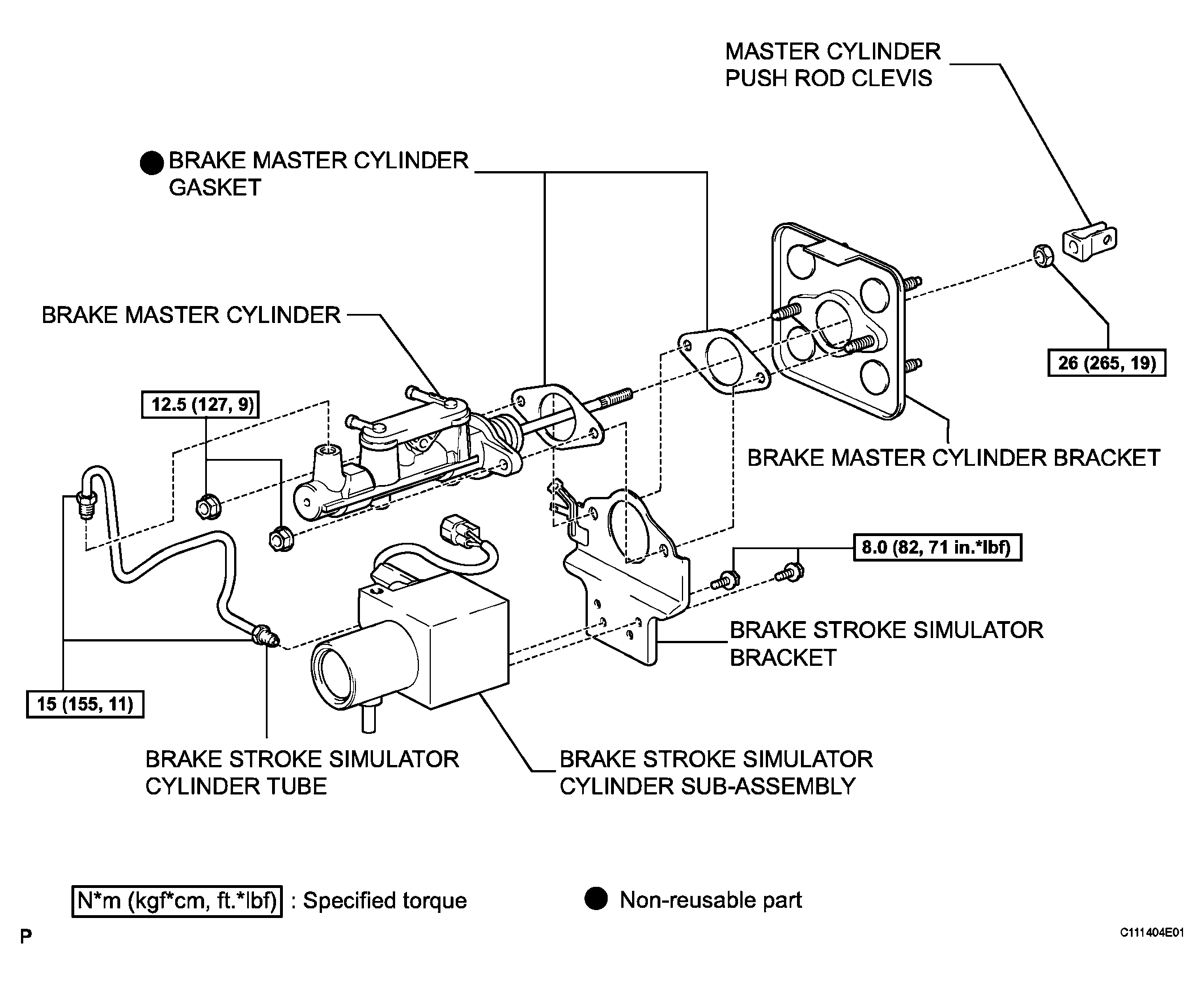

Fig 3: Brake Master Cylinder Replacement Components With Torque Specifications (3 Of 4)
G04113392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Brake Master Cylinder Replacement Components With Torque Specifications (4 Of 4)
G04113393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
