Steering Pad Switch: Inspection

  1. INSPECT STEERING PAD SWITCH RH
    1. Remove the steering pad switch LH connector with the steering pad switch RH and spiral cable still connected.

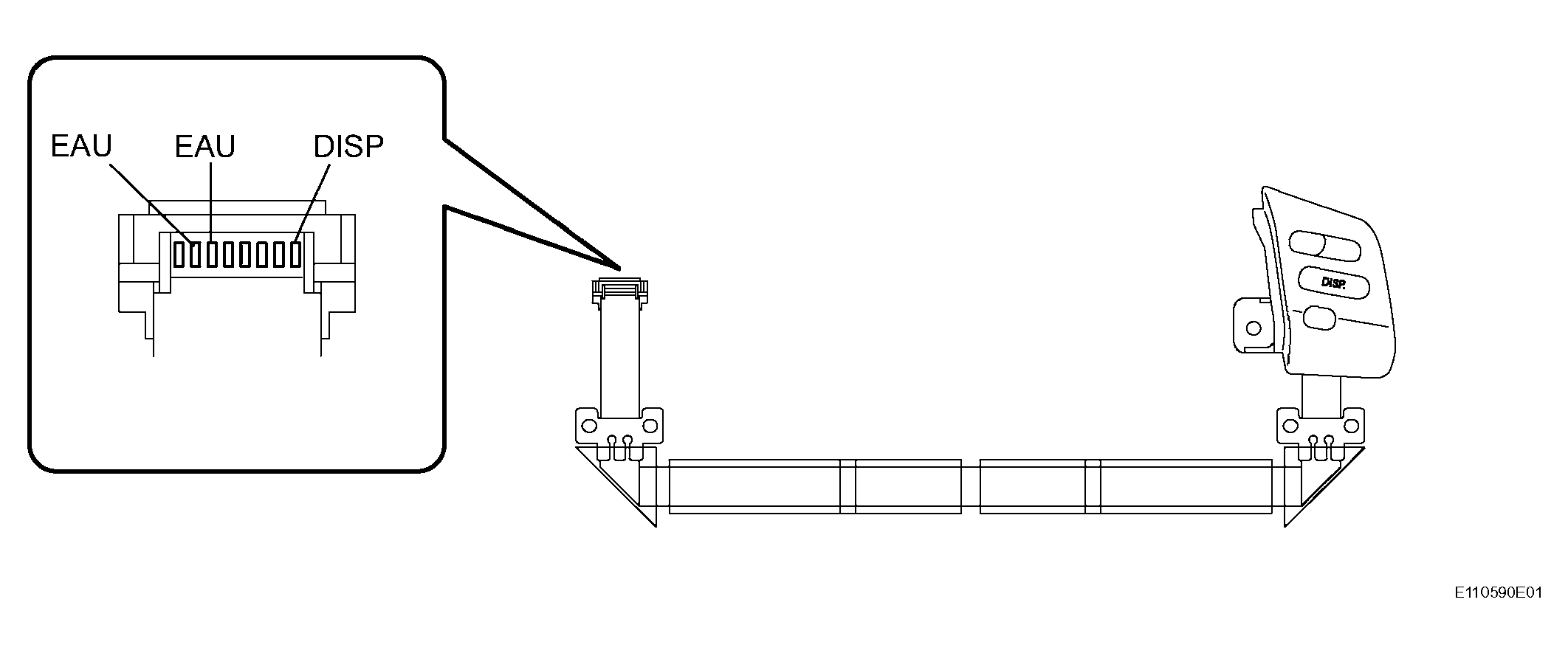

      Fig 1: Inspecting Steering Pad Switch RH
      G04115411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      STEERING PAD SWITCH RH

      Tester Connection Condition Specified Condition
      DISP - EAU DISP switch is not pushed in. 10 kΩ or higher
      DISP - EAU DISP switch is pushed in. Below 1 Ω

      HINT:

      If the value is not as specified, replace the steering pad switch RH.
