Operating Light Control Rheostat does not Change Light Brightness: Wiring Diagram

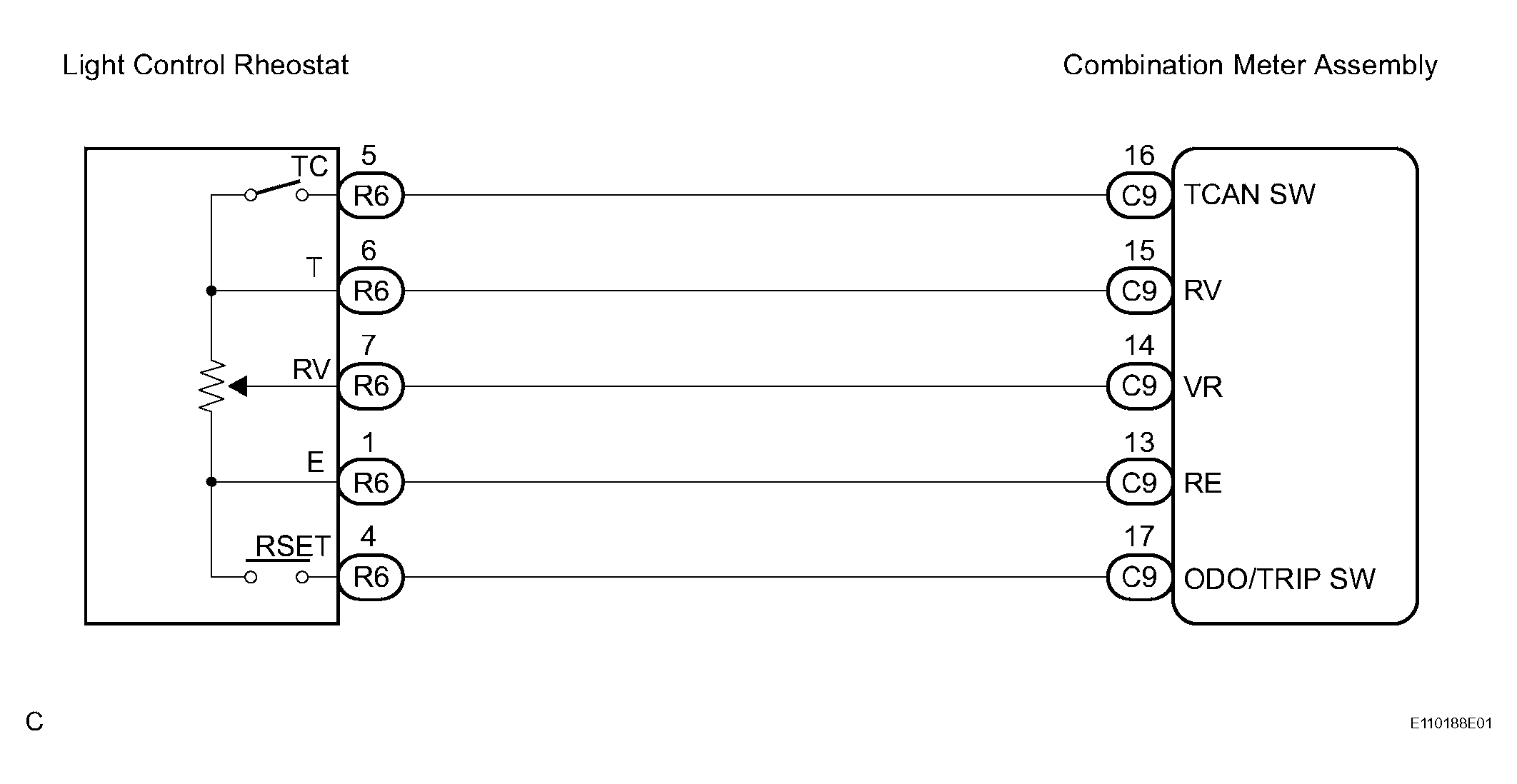

Fig 1: Wiring Diagram - Operating Light Control Rheostat Does Not Change Light Brightness
G04115400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
