On-Vehicle Inspection

1. Check the operation.
   1. Using a speedometer tester, check the speedometer indication according to the table below.

      Reference: mph (U.S.A.)

      SPEEDOMETER REFERENCE (MPH (U.S.A.))



      Standard indication	Acceptable range
      20 mph	20.0 to 23.0 mph
      40 mph	40.0 to 43.5 mph
      60 mph	60.0 to 64.0 mph
      80 mph	80.0 to 84.5 mph
      100 mph	100.0 to 105.0 mph
      120 mph	120.0 to 125.5 mph
      140 mph	140.0 to 146.0 mph
      160 mph	160.0 to 166.5 mph

      Reference: km/h (Canada)

      SPEEDOMETER REFERENCE (KM/H (CANADA)



      Standard indication	Acceptable range Data in ( ) is for reference
      20 km/h	(17.5 to 21.5 km/h)
      40 km/h	38.0 to 42.0 km/h
      60 km/h	58.0 to 63.0 km/h
      80 km/h	78.0 to 84.0 km/h
      100 km/h	98.5 to 104.5 km/h
      120 km/h	119.0 to 125.0 km/h
      140 km/h	139.0 to 146.0 km/h
      160 km/h	159.0 to 167.0 km/h
      180 km/h	179.0 to 188.0 km/h
      200 km/h	199.0 to 209.0 km/h
      220 km/h	219.0 to 230.0 km/h
      240 km/h	239.0 to 251.0 km/h

      NOTE: Tire wear, as well as over or under inflation will cause errors.
   2. Check the deviation from the acceptable value of the speedometer indication.

      Reference: Below 0.5 km/h (0.3 mph)

1. Disconnect the connector from the sender gauge.
2. Turn the ignition switch to the ON position, then check the position of the receiver gauge needle.

   OK: Needle position is on (EMPTY).

3. Connect the terminals 2 and 3 on the wire harness side connector of the fuel sender gauge.
4. Turn the ignition switch to the ON position, then check the position of the receiver gauge needle.

   OK: Needle position is on (FULL).

Fig 1: Identifying Fuel Sender Gauge Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector from the sender gauge.
2. Turn the ignition switch to the ON position, then check the fuel level needle indicates EMPTY and the fuel level warning light comes on.

   OK: Fuel level warning light comes on.

1. Disconnect the connector from the low oil pressure switch.
2. Turn the ignition switch to the ON position.
3. Ground the terminal of the wire harness side connector, then check the low oil pressure warning in the multi-display.

   OK : LOW OIL PRESSURE warning is displayed.

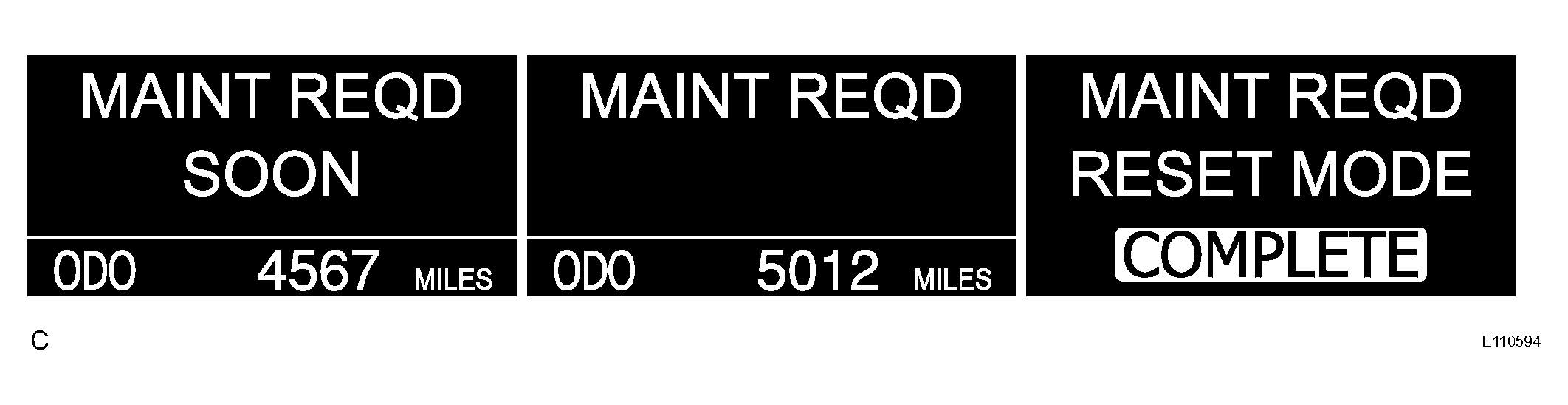

Fig 2: Inspecting Maintenance Required Display

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISPLAY CONDITION:

1. Set the display window to ODO.
2. Turn the ignition switch off.
3. While pressing the reset switch, turn the ignition switch to the ON position. Keep pressing the reset switch for at least 5 seconds to complete the reset procedure. Check that the "MAINTENANCE REQD RESET MODE COMPLETE" message is displayed.

   HINT:

   If the ignition switch is turned off during the reset procedure; LCD: off

   Warning Display: off

   If the reset switch is not pressed for at least 5 seconds during the reset procedure; LCD: Return to ODO Warning Display: previous state

1. Turn the ignition switch off.
2. Press the "DISP" button and hold it down.
3. Turn the ignition switch to the ON position.

   OK: All the dot in the multi-information display comes on.

   HINT:

   This test is also available on "DATA LIST / ACTIVE TEST " .

4. Turn the ignition switch off to finish the test mode.
