Fuel Receiver Gauge Malfunction: Wiring Diagram

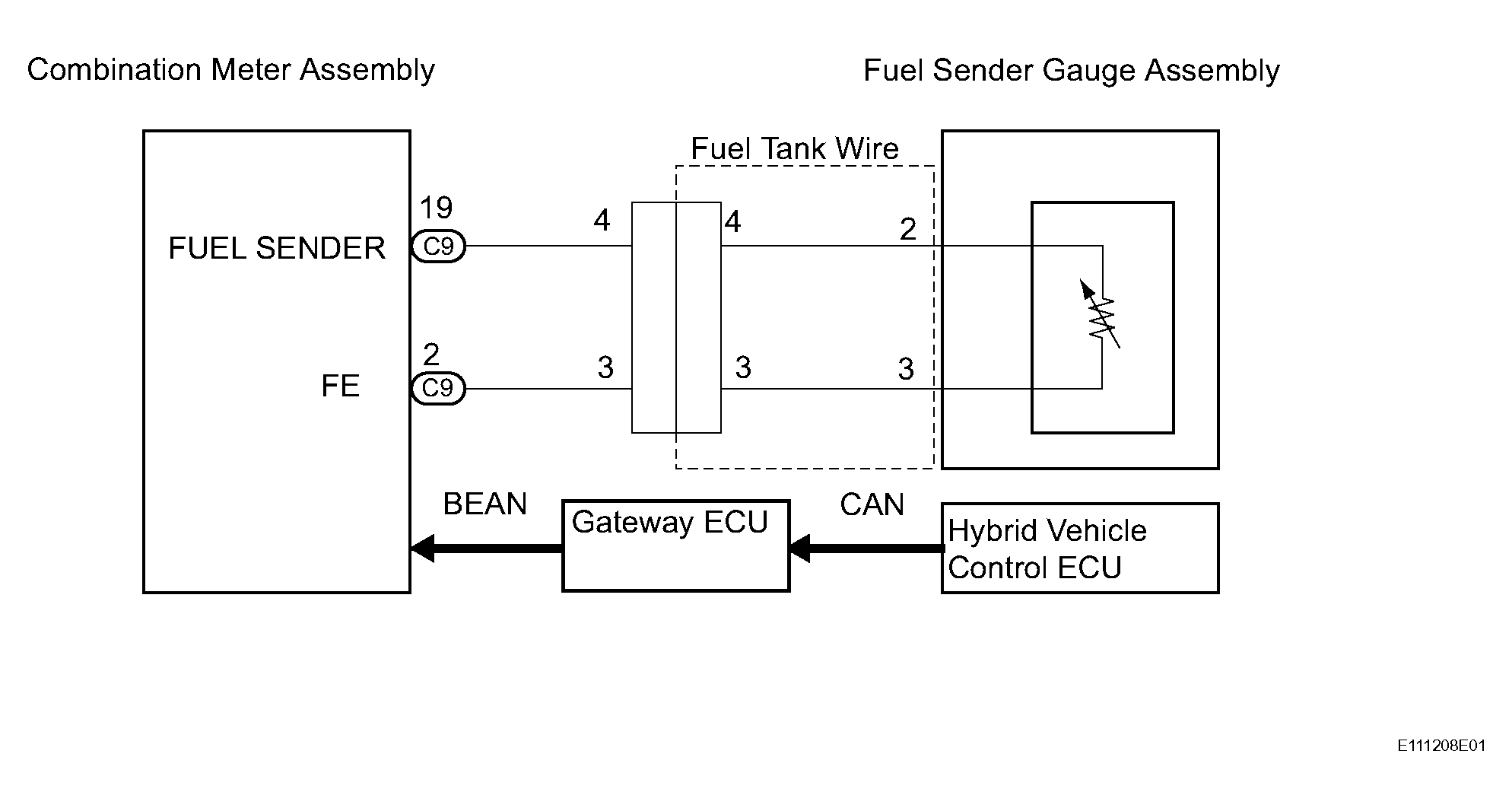

Fig 1: Wiring Diagram - Fuel Receiver Gauge Malfunction

G04115387

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
