Entire Combination Meter does not Operate: Wiring Diagram

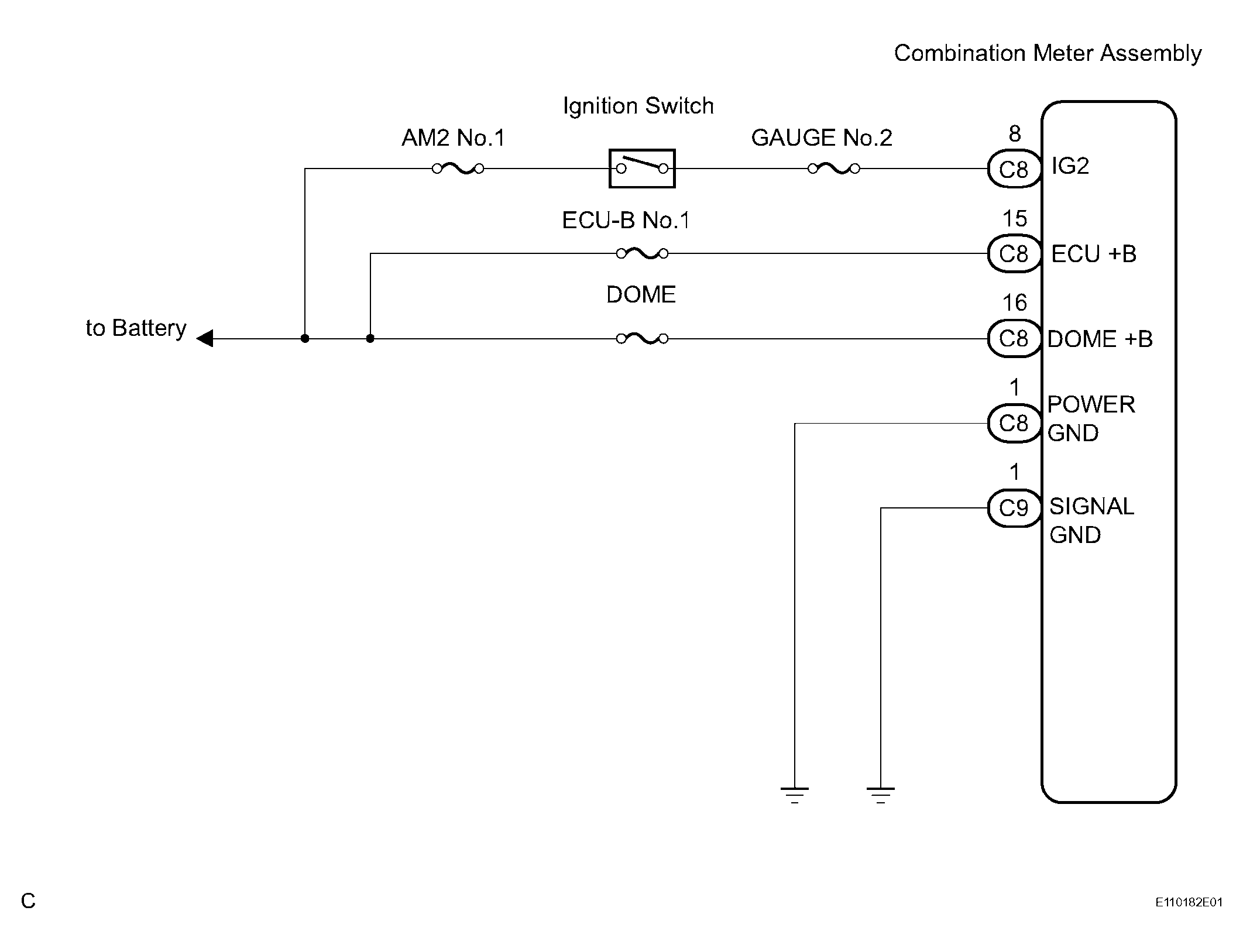

Fig 1: Wiring Diagram - Entire Combination Meter Does Not Operate

G04115381

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
