Fuel Sender Gauge Assembly: Inspection

  1. INSPECT FUEL SENDER GAUGE ASSEMBLY
    1. Check the operation of the float moving smoothly between F and E.
    2. Disconnect the fuel sender gauge connector.
    3. Remove the fuel sender gauge assembly.
    4. Measure the resistance between the terminals 2 (FE) and 3 (FS) of connector according to the value(s) in the table below.

      OK

      FUEL SENDER GAUGE ASSEMBLY

      Float Level Resistance (Ω)
      F 13.5 to 16.5
      E 405.5 to 414.5

      HINT:

      If the value is not as specified, replace the fuel sender gauge assembly.

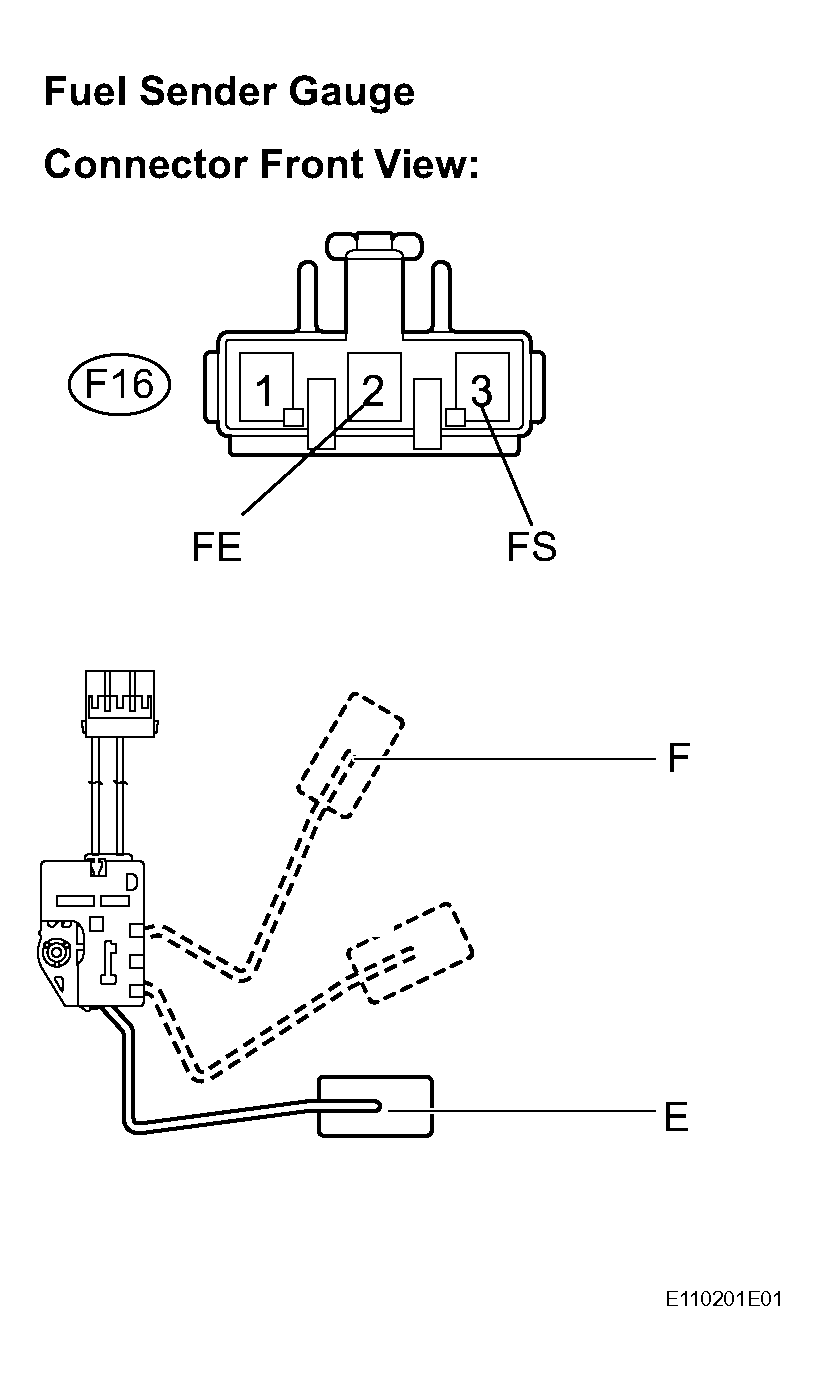

    Fig 1: Inspecting Fuel Sender Gauge Assembly
    G04115410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
