Home >> Lexus >> 2006 >> RX 400h FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Clock & Power Socket >> Rear Power Point Socket >> Components

Rear Power Point Socket: Components

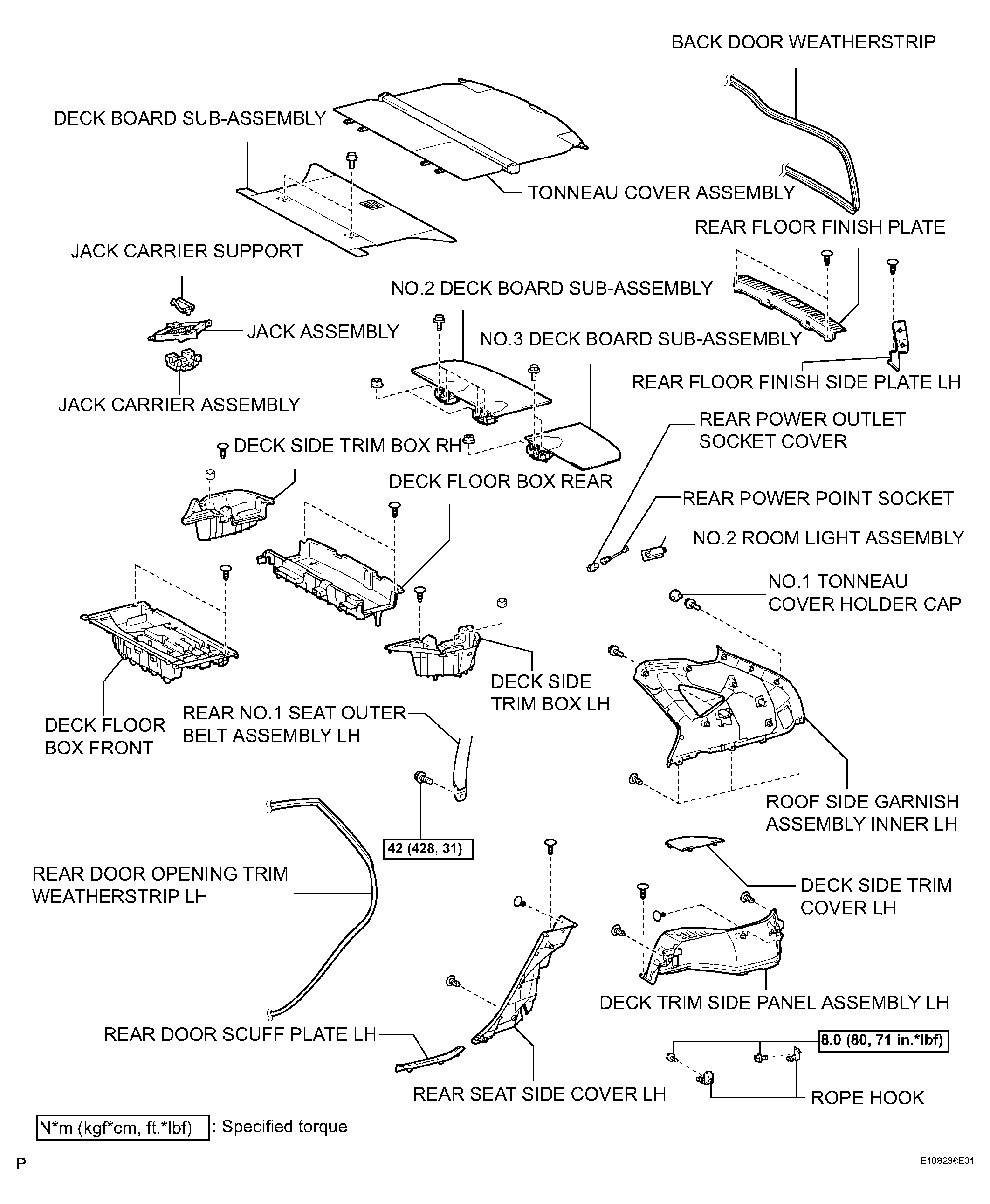

Fig 1: Rear Power Point Socket Replacement Components With Torque Specifications

G04116003

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
