DTC P3187-751 Short to GND in Rear Guard Sensor 1 Connection; DTC P3188-752 Open or Short to B+ in Rear Guard Sensor 1 Connection: Wiring Diagram

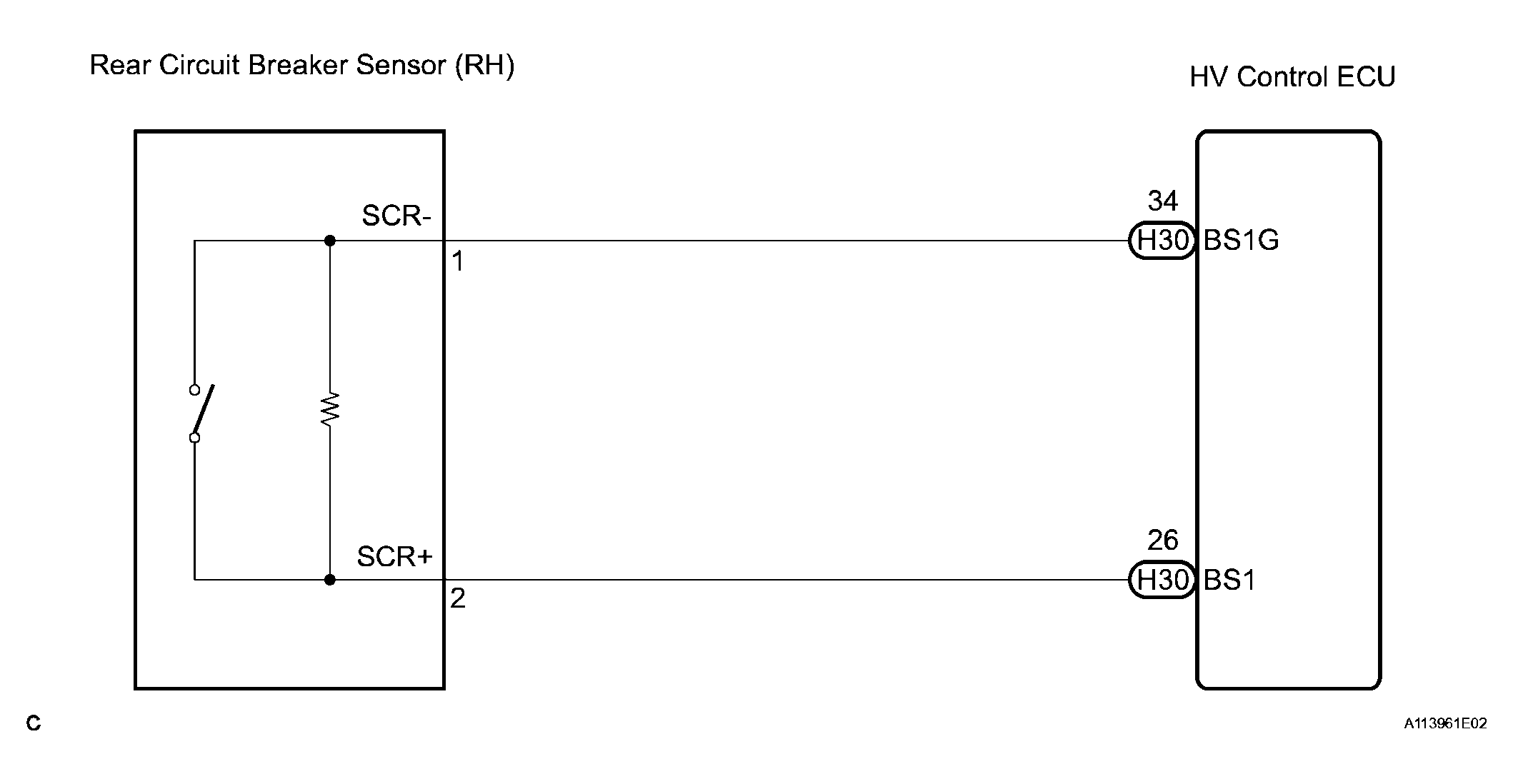

Fig 1: Short To GND In Rear Guard Sensor 1 Connection - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
