DTC P0AA1-224 Hybrid Battery Positive Contactor Circuit Stuck Closed; DTC P0AA2-225 Hybrid Battery Positive Contactor Circuit Stuck Open: Wiring Diagram

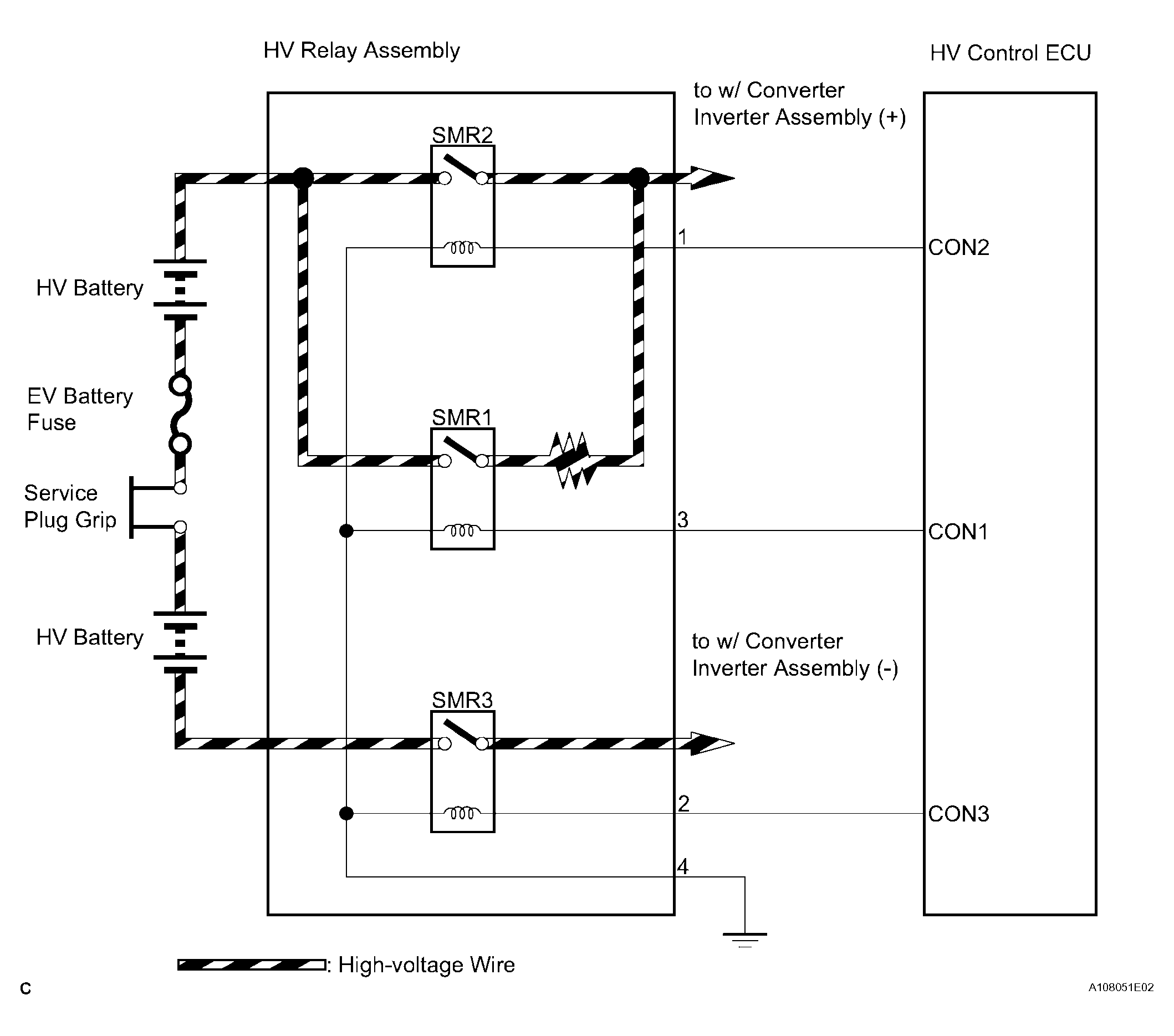

Fig 1: Wiring Diagram - Hybrid Battery Positive Contactor
G04112237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
