DTC P0300 Random / Multiple Cylinder Misfire Detected; DTC P0301 Cylinder 1 Misfire Detected; DTC P0302 Cylinder 2 Misfire Detected; DTC P0303 Cylinder 3 Misfire Detected; DTC P0304 Cylinder 4 Misfire Detected; DTC P0305 Cylinder 5 Misfire Detected; DTC P0306 Cylinder 6 Misfire Detected: Wiring Diagram

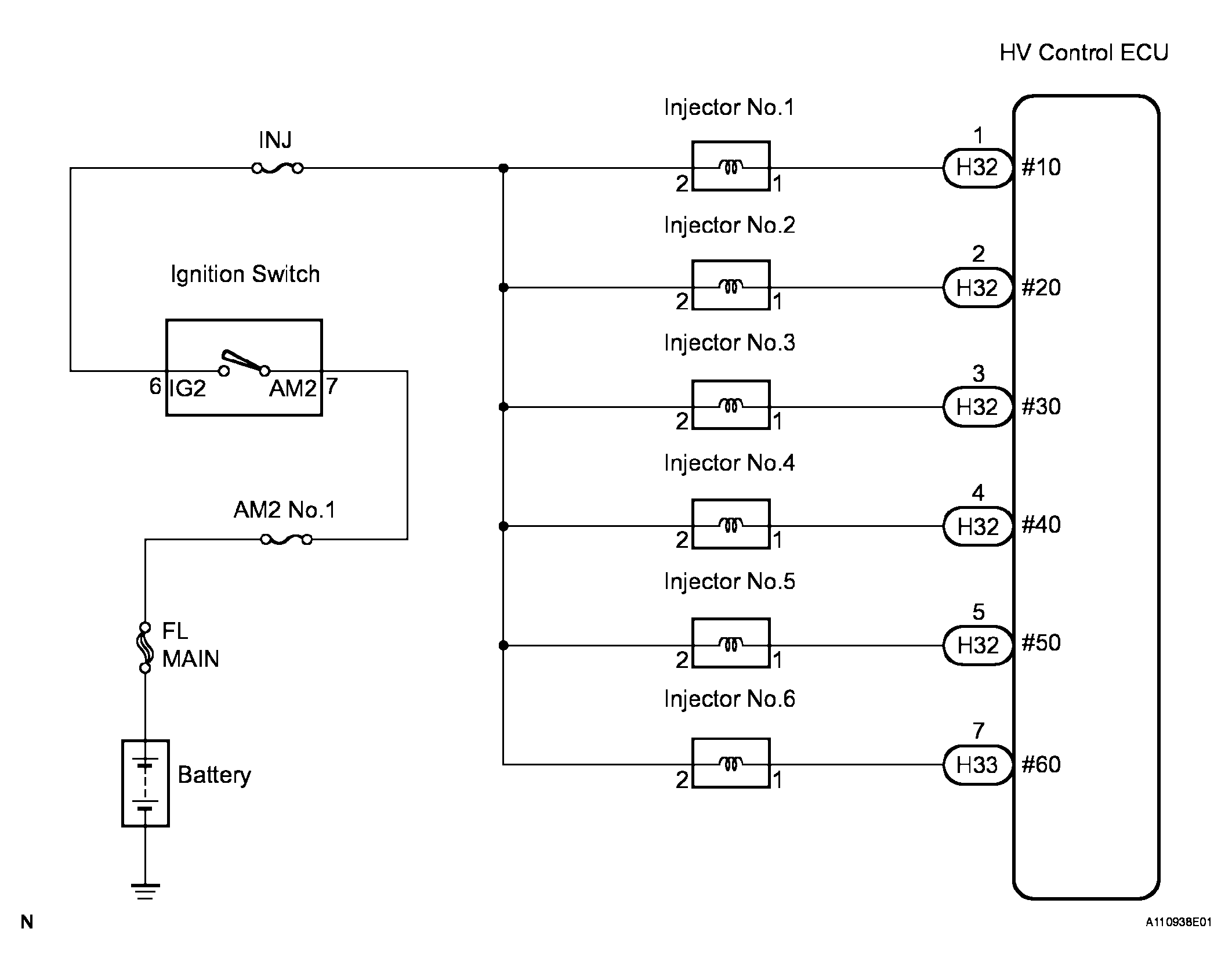

Fig 1: Wiring Diagram - Random / Multiple Cylinder Misfire Detected

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
