Rear Spoiler: Removal

  1. REMOVE BACK WINDOW PANEL TRIM UPPER (w/o Power Back Door)
  2. REMOVE BACK DOOR TRIM BOARD LH (w/ Power Back Door)
  3. REMOVE BACK WINDOW PANEL TRIM UPPER (w/ Power Back Door)
  4. REMOVE REAR SPOILER SUB-ASSEMBLY
    1. Disconnect the center stop light connector.
    2. Remove the 2 grommets and 5 bolts.

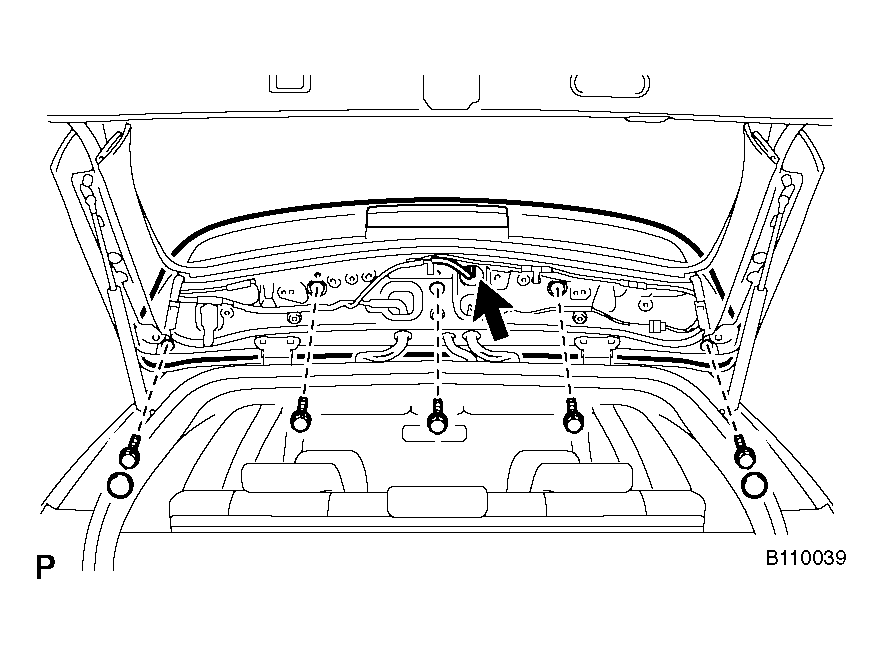

      Fig 1: Identifying Rear Spoiler Sub-Assembly Bolts And Grommets
      G04116613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 clips and rear spoiler sub-assembly.
    Fig 2: Identifying Rear Spoiler Sub-Assembly
    G04116614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE HIGH MOUNTED STOP LIGHT ASSEMBLY (See  INSTALLATION  )
